Phosphuranylite

KCa(H3O)3(UO2)7(PO4)4O4 · 8H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Puy
Discovered
1879
Also known as
  • Phosphoruranylit
  • Phosphuranyliet

Where it forms, where it's found

Geological setting

Granite pegmatite

Weathered zones of granitic pegmatites near altered uraninite. In paleochannels in Colorado Plateau type sandstone deposits.

Type locality
Buchanan Mine (Buchanan pegmatite)
  1. Mitchell County
  2. North Carolina
  3. USA

35.9426°, -82.1020°

181recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Bright yellow · deep golden-yellow · honey-yellow
Streak
Pale yellow
Tenacity
brittle
Cleavage
None Observed

Optical

Optical type
Biaxial (-) · 2V measured = 5 – 35°
Refractive index
1.658 – 1.77
Surface relief
High
Principal indices
nα 1.658 – 1.695 · nβ 1.699 – 1.770 · nγ 1.699 – 1.770
Birefringence
0.035
Pleochroism
Strong

X = Clorless to pale yellow Y = Z = Golden yellow

Dispersion
relatively strong
Extinction
Parallel
UV response
May fluoresce due to admixed autunite, etc.
Notes

The refractive index of reported phosphuranylite is unreasonably large, suggesting poor identification control.

Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#50
Cell parameters
a = 15.779 Å · b = 13.702 Å · c = 17.253 Å
Ratio a:b:c
1 : 0.868 : 1.093
Z
4
Morphology

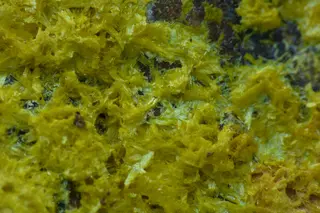

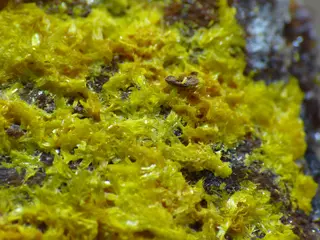

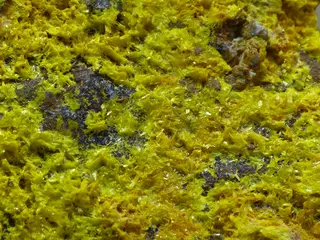

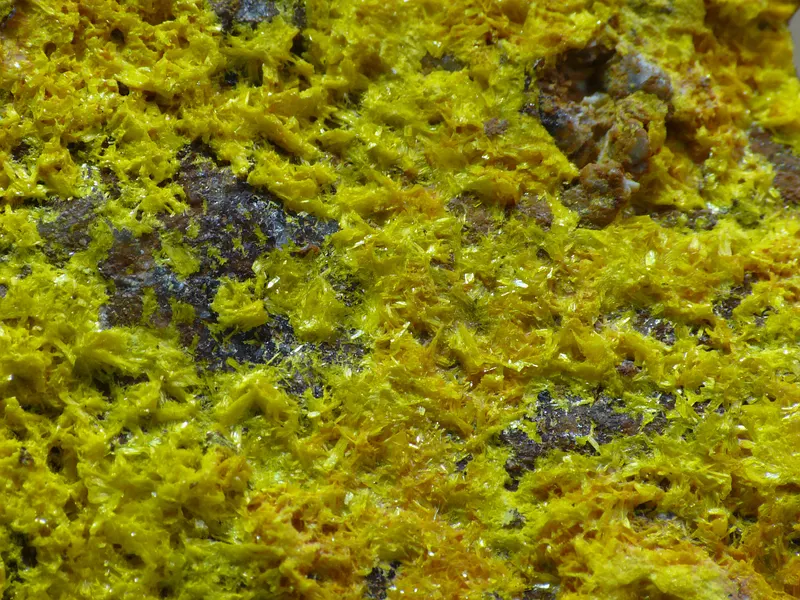

Occurs as thin scales with an irregular to rectangular outline. The scales form scaly crusts, thin films and coatings. Also powdery.

Type-locality form

Powdery incrustation on quartz, feldspar, and mica composed of minute rectangular scales.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium7238.0291666.203
63.73%
8OOxygenOxygen4515.999719.955
27.54%
15PPhosphorusPhosphorus430.974123.896
4.74%
20CaCalciumCalcium140.07840.078
1.53%
19KPotassiumPotassium139.09839.098
1.50%
1HHydrogenHydrogen251.00825.200
0.96%
Total2614.430100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Phosphoruranylit
  • Phosphuranyliet

In other languages

French
Phosphuranylite
German
Phosphuranylit
Spanish
Fosfuranilita
Italian
Fosfouranilite · Fosfuranilite · Fosfuranylite
Japanese
リンウラニル石

Classification

Strunz
10th ed.

8.EC.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.ECUO2:RO4 = 3:2Group
  • 8.EC.10PhosphuranyliteSpecies
Dana
8th ed.

42.04.08.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.04(AB)5(XO4)2Zq·xH2OType
  • 42.04.08— unnamed intermediate level —Group
  • 42.04.08.01PhosphuranyliteSpecies
CIM

19.11.18

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.18PhosphuranyliteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1879Genth, F.A. (1879) Examination of the North Carolina uranium minerals. American Chemical Journal: 1: 87-93 (92).
  2. 1879Dana, E.S. (1879) Examination of the North Carolina uranium minerals; by F. A. Genth. American Journal of Science and Arts: 118: 153-154.
  3. 1950Frondel, Clifford (1950) Studies of uranium minerals (V): phosphuranylite. American Mineralogist, 35 (9-10) 756-763
  4. 1954Hogarth, D. D., Nuffield, E. W. (1954) Studies of radioactive compounds; VII--Phosphuranylite and dewindtite. American Mineralogist, 39 (5-6) 444-447
  5. 1954Bignand, C., Goñi, J., Guillemin, C. (1954) La phosphuranylite, ses relations avec la dewindtite et la renardite. Bulletin de Minéralogie: 77(10): 1299-1306.
