Pentagonite

CaV4+OSi4O10 · 4H2O
IMA status
  • Approved
IMA symbol
Ptg
Discovered
1973
Also known as
  • IMA1971-039

Where it forms, where it's found

Geological setting

Cavities and veinlets in basalt and vugs in tuff.

Fracture filling in tuffs and basalts.

Type locality
Owyhee Dam
  1. Lake Owyhee State Park
  2. Malheur County
  3. Oregon
  4. USA

43.6248°, -117.2354°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Greenish blue
Streak
Light blue
Tenacity
brittle
Cleavage
Distinct/Good

Good on (010)

Density
2.33 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50° · 2V calc = 54°
Refractive index
1.533 – 1.547
Surface relief
Moderate
Principal indices
nα 1.533 · nβ 1.544 · nγ 1.547
Pleochroism
Visible

X=Z= colourless Y= blue

Dispersion
r > v strong. Dispersion opposite to that of cavansite.
Extinction
X = b; Y = a; Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 10.386(4) Å · b = 14.046(7) Å · c = 8.975(2) Å
Ratio a:b:c
1 : 1.352 : 0.864
Z
4
Morphology

Prismatic, bladed.

Twinning

Cyclical by reflection across (110), producing twinning at an angle near 72.7° ((110) ∧ (_110)), and sometimes giving rise to fivelings. Note that "characteristic pentagonite fivelings are not formed from five, but from six individuals." (Ottens et al., 2025).

Type-locality form

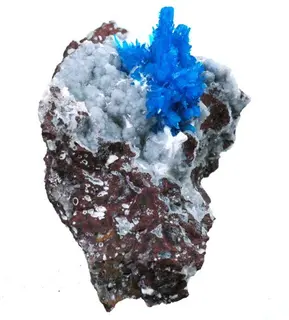

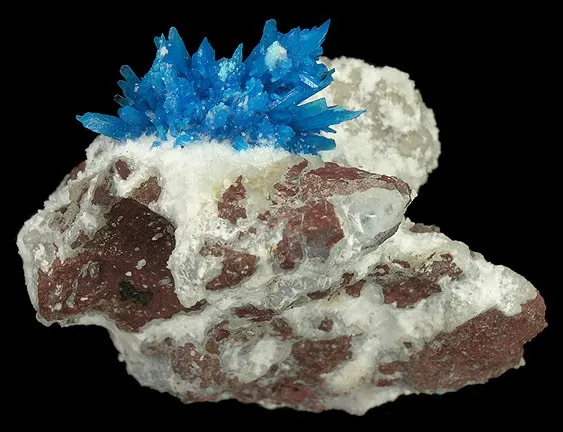

Radiating greenish-blue prismatic crystals.

Comment

Space group Ccm21.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
53.16%
14SiSiliconSilicon428.085112.340
24.89%
23VVanadiumVanadium150.94250.942
11.28%
20CaCalciumCalcium140.07840.078
8.88%
1HHydrogenHydrogen81.0088.064
1.79%
Total451.409100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1971-039

In other languages

French
pentagonite
German
IMA 1971-039 · Pentagonit
Spanish
Pentagonita
Italian
Pentagonite
Japanese
ペンタゴン石
Chinese
五角石
Russian
Пентагонит

Classification

Strunz
10th ed.

9.EA.55

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EASingle nets of tetrahedra with 4-, 5-, (6-), and 8-membered ringsGroup
  • 9.EA.55PentagoniteSpecies
Dana
8th ed.

74.03.07.02

  • 74Phyllosilicates Modulated LayersClass
  • 74.03Modulated Layers with joined stripsType
  • 74.03.07V phyllosilicatesGroup
  • 74.03.07.02PentagoniteSpecies
CIM

14.14.2

  • 14Silicates not Containing AluminumClass
  • 14.14Silicates of V and BiGroup
  • 14.14.2PentagoniteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1973Staples, Lloyd W., Evans, Howard T., Lindsay, and James R. (1973) Cavansite and pentagonite, new dimorphous calcium vanadium silicate minerals from Oregon. American Mineralogist, 58 (5-6) 405-411
  2. 1973Evans, Howard T., Jr. (1973) The crystal structures of cavansite and pentagonite. American Mineralogist, 58 (5-6) 412-424
  3. 2000Blaß, Günther; Graf, Hans Werner; Ottens, Berthold (2000) Pentagonit und Cavansit aus Indien [Pentagonite and cavansite from India]. Mineralien-Welt, 11 (2). 59-62
  4. 2001(2001) Pentagonite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2002White, John (2002) Let's Get It Right: Cavansite or Pentagonite? Rocks & Minerals, 77 (4). 274-275 doi:10.1080/00357529.2002.9925646DOI: 10.1080/00357529.2002.9925646
