Phosphorrösslerite

Mg(PO3OH) · 7H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Prö
Discovered
1939
Also known as
  • Phosphor-roesslerite
  • Phosphorrössleriet

Where it forms, where it's found

Geological setting

Post-mine. Found in cold (10° C), wet muck in abandoned mine workings.

Type locality
Stüblbau Mine
  1. Gold mines
  2. Schellgaden
  3. Muhr
  4. Tamsweg District
  5. Salzburg
  6. Austria

47.0695°, 13.5691°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colorless · white · pale yellow due to staining · colorless in transmitted light.
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal · Sub-Conchoidal
Density
1.721 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 38° · 2V calc = 38°
Refractive index
1.477 – 1.486
Surface relief
Low
Principal indices
nα 1.477 · nβ 1.485 · nγ 1.486
Birefringence
0.009
Pleochroism
Non-pleochroic
Dispersion
r > v
Extinction
Z ∧ c = 6.5°; OAP perpendicular {010}.
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P2/c
Cell parameters
a = 11.61 Å · b = 25.40 Å · c = 6.63 Å
Cell angles
β = 94.77 °
Ratio a:b:c
1 : 2.188 : 0.571
Z
8

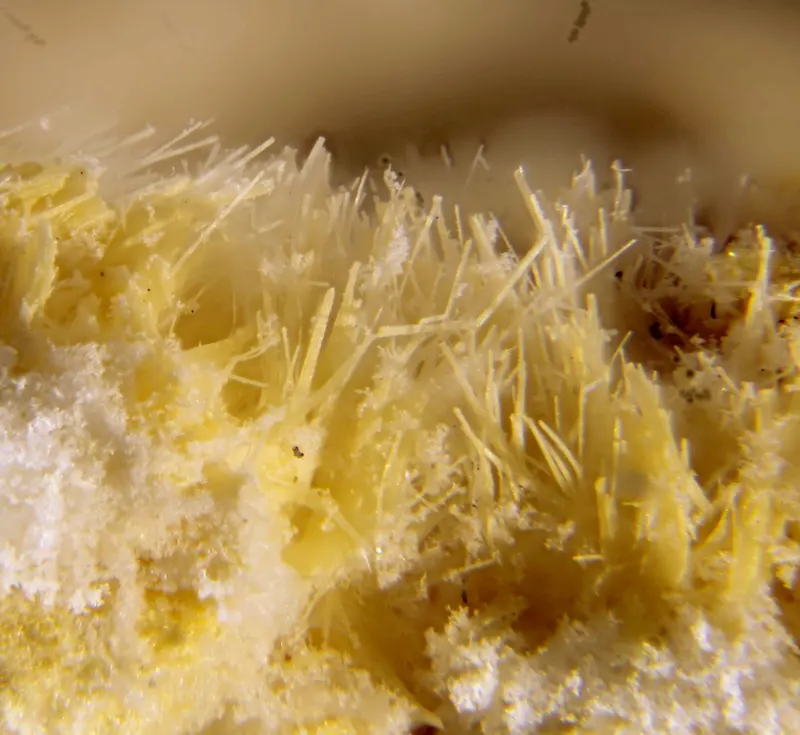

Morphology

Crystals equi-dimentional or short prismatic [100]; also skeletal or crusted. Easily dehydrates to a pseudomorph of newberyite after phosphorrösslerite.

Type-locality form

Crystals equidimensional or short prismatic, rarely tabular; often in twinlike intergrowths. Also skeletal crystals, drusy crusts and kidney or hyalite-like forms.

Comment

ZK 137:246 (1973) structure; also ICDD 19-761 (synthetic)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
71.43%
15PPhosphorusPhosphorus130.97430.974
12.57%
12MgMagnesiumMagnesium124.30524.305
9.86%
1HHydrogenHydrogen151.00815.120
6.14%
Total246.388100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Phosphor-roesslerite
  • Phosphorrössleriet

In other languages

German
Phosphorrösslerit
Italian
fosforrösslerite

Classification

Strunz
10th ed.

8.CE.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CEWith only medium-sized cations, RO4:H2O about 1:2.5Group
  • 8.CE.20PhosphorrössleriteSpecies
Dana
8th ed.

39.01.09.02

  • 39Hydrated Acid Phosphates, Arsenates and VanadatesClass
  • 39.01A[HXO4]·xH2OType
  • 39.01.09— unnamed intermediate level —Group
  • 39.01.09.02PhosphorrössleriteSpecies
CIM

19.3.18

  • 19PhosphatesClass
  • 19.3Phosphates of Be and MgGroup
  • 19.3.18PhosphorrössleriteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1939Hägele and Machatschki (1939) Centralblatt für Mineralogie, Geologie und Paleontologie, Stuttgart: 297.
  2. 1939Friedrich, O.M., Robitsch, J. (1939) Phosphorrößlerit (MgHPO4·7H2O) als Mineral aus dem Stüblbau zu Schellgaden. Zentralblatt für Mineralogie, Geologie und Paläontologie, 5, 142-155.
  3. 1940(1940) New mineral names. American Mineralogist, 25 (4) 312-314
  4. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  5. 1973Street, R. L. T.; Whitaker, A. (1973) The isostructurality of rösslerite and phosphorrösslerite. Zeitschrift für Kristallographie, 137 (4). 246-255 doi:10.1524/zkri.1973.137.4.246DOI: 10.1524/zkri.1973.137.4.246
