Potassic-hastingsite

KCa2(Fe2+4Fe3+)(Si6Al2)O22(OH)2
IMA status
  • Approved
IMA symbol
Phst
IMA approved
2019
Also known as
  • IMA2018-160
  • Potassic-hastingsiet

Where it forms, where it's found

Geological setting

In miarolitic cavities in "hornblendites". The "hornblendites" form irregular veins and branches intruded into acid and intermediate volcanic rocks.

Type locality
Danailingou As-Co deposit
  1. Hexigten Banner (Keshiketeng Co.)
  2. Chifeng City (Ulanhad League
  3. Chifeng Prefecture)
  4. Inner Mongolia
  5. China

43.7217°, 117.5769°

11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Black
Streak
Dark green
Tenacity
brittle
Cleavage
Perfect

(110)

Fracture
Conchoidal
Density
3.51 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.708 – 1.718
Surface relief
High
Principal indices
nα 1.708 · nβ 1.716 · nγ 1.718
Pleochroism
Strong

α = green; β = brown green; γ = pale blue to blue

Dispersion
strong to medium, v > r
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#11
Cell parameters
a = 9.9405(7) Å · b = 18.2561(19) Å · c = 5.3501(3) Å
Cell angles
β = 105.117(5) °
Ratio a:b:c
1 : 1.837 : 0.538
Unit cell volume
937.3 ų
Z
2
Morphology

Forms include (110), (010), (001)

Type-locality form

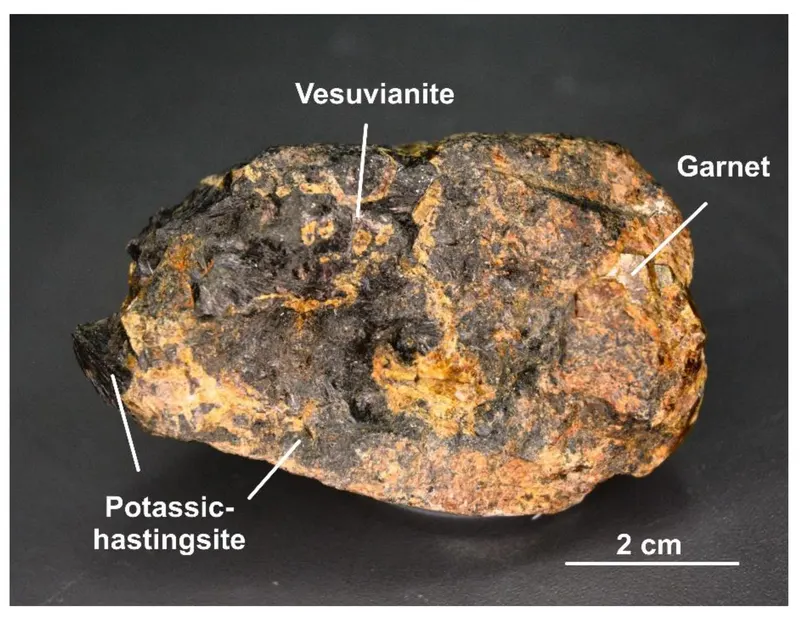

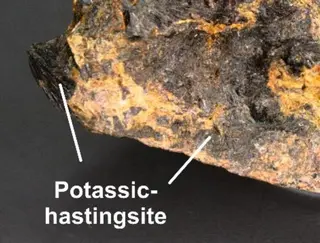

Black coarse-grained (1-3 mm), likely mono-mineral amphibole aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
38.13%
26FeIronIron555.845279.225
27.73%
14SiSiliconSilicon628.085168.510
16.74%
20CaCalciumCalcium240.07880.156
7.96%
13AlAluminiumAluminium226.98253.964
5.36%
19KPotassiumPotassium139.09839.098
3.88%
1HHydrogenHydrogen21.0082.016
0.20%
Total1006.945100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2018-160
  • Potassic-hastingsiet

In other languages

German
IMA 2018-160 · Kalium-Hastingsit
Italian
Potassic-hastingsite

Classification

Strunz
10th ed.

9.DE.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DEInosilicates with 2-periodic double chains, Si4O11; ClinoamphibolesGroup
  • 9.DE.15Potassic-hastingsiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2003Mazdab, F. K. (2003) The diversity and occurrence of potassium-dominant amphiboles. The Canadian Mineralogist, 41 (6) 1329-1344 doi:10.2113/gscanmin.41.6.1329 DOI: 10.2113/gscanmin.41.6.1329
  2. 2007Žáček, Vladimír (2007) Potassian hastingsite and potassichastingsite from garnet – hedenbergite skarn at Vlastějovice, Czech Republic. Neues Jahrbuch für Mineralogie - Abhandlungen, 184 (2) 161-168 doi:10.1127/0077-7757/2007/0089DOI: 10.1127/0077-7757/2007/0089
  3. 2012Hawthorne, F. C., Oberti, R., Harlow, G. E., Maresch, W. V., Martin, R. F., Schumacher, J. C., Welch, M. D. (2012) Nomenclature of the amphibole supergroup. American Mineralogist, 97 (11) 2031-2048 doi:10.2138/am.2012.4276 DOI: 10.2138/am.2012.4276
  4. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Mills, Stuart J. (2019) New minerals and nomenclature modifications approved in 2019. CNMNC Newsletter 49. Mineralogical Magazine, 83 (3) 479-483 doi:10.1180/mgm.2019.35 DOI: 10.1180/mgm.2019.35
  5. 2020Ren, G., Li, G., Shi, J., Gu, X., Fan, G., Yu, A., Liu, Q., Shen, G. (2020) Potassic-hastingsite, KCa2(Fe2+4Fe3+)(Si6Al2)O22(OH)2, from the Keshiketeng Banner, Inner Mongolia, China: description of the neotype and its implication. Mineralogy and Petrology: 114: 403–412.
