Preisingerite

Bi3O(AsO4)2(OH)
IMA status
  • Approved
IMA symbol
Psg
Discovered
1981
IMA approved
1981
Also known as
  • IMA1981-016
  • Preisingeriet

Where it forms, where it's found

Geological setting

Weathering zone of a Fe-Bi-Cu-Zn-Pb-Au-As-S mineralization.

Type locality
San Francisco de los Andes mine
  1. Calingasta
  2. Calingasta Department
  3. San Juan Province
  4. Argentina

-30.8356°, -69.5994°

58recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White to gray · pale yellowish

Optical

Optical type
Biaxial · 2V measured = 90° · 2V calc = 88°
Refractive index
2.13 – 2.195
Surface relief
Very high
Principal indices
nα 2.13 · nβ 2.16 · nγ 2.195
Dispersion
r < v
Michel-Lévy diagramhighlighted lineδ = 0.0650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]650 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation650 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 9.99 Å · b = 7.40 Å · c = 6.93 Å
Cell angles
α = 87.82 ° · β = 115.01 ° · γ = 111.07 °
Ratio a:b:c
1 : 0.741 : 0.694
Type-locality form

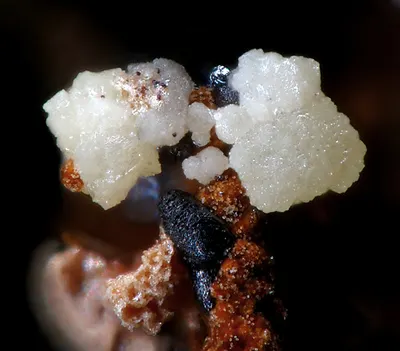

Porous white to grayish white aggregates of tiny tabular triclinic crystals.

Comment

Non-standard unit-cell setting (reduced cell: 6.94, 7.40, 9.45 A, 110.6, 106.7, 92.2°).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth3208.980626.940
66.85%
8OOxygenOxygen1015.999159.990
17.06%
33AsArsenicArsenic274.922149.844
15.98%
1HHydrogenHydrogen11.0081.008
0.11%
Total937.782100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1981-016
  • Preisingeriet

In other languages

German
IMA 1981-016 · Preisingerit
Spanish
preisingerita
Italian
Preisingerite

Classification

Strunz
10th ed.

8.BO.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BOWith only large cations, (OH, etc.):RO4 about 1:1Group
  • 8.BO.10PreisingeriteSpecies
Dana
8th ed.

41.10.09.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.10(AB)3(XO4)2ZqType
  • 41.10.09Preisingerite GroupGroup
  • 41.10.09.01PreisingeriteSpecies
CIM

20.6.2

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.6Arsenates of BiGroup
  • 20.6.2PreisingeriteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1982Bedlivy, D., Mereiter, K. (1982) Preisingerite, Bi3O(OH)(AsO4)2, a new species from San Juan Province, Argentina: its description and crystal structure. American Mineralogist, 67 (7-8) 833-840
  2. 2005(2005) Preisingerite. Handbook of Mineralogy. Mineralogical Society of America
