Richardsite

Zn2CuGaS4
IMA status
  • Approved
IMA symbol
Ric
Also known as
  • IMA2019-136
  • Richardsiet

Where it forms, where it's found

Type locality
Merelani Hills
  1. Lelatema Mountains
  2. Simanjiro District
  3. Manyara Region
  4. Tanzania

-3.5833°, 37.0083°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Dark grey
Streak
black
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
4.278 g/cm³

Optical

Pleochroism
Non-pleochroic
Optical colour
Bluish gray in color
Anisotropism
Violet to light-blue rotation tints
Bireflectance
Moderately bireflectant
Internal reflections
None
Tropism
Anisotropic
Reflectance R%
(23.5,25.0) 471.1, (27.4,28.9) 548.3, (28.1,29.4) 586.6, (27.7,28.9) 652.3
Reflected-light panel
26.7 %anisotropic · dual curve
Specimen sRGB 193, 131, 64
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
Moderately bireflectant
Anisotropism
Violet to light-blue rotation tints
Reflected colour
Bluish gray in color
Internal reflections
None

Crystallography

Crystal system
Tetragonal
Space group
#142
Cell parameters
a = 5.3626(2) Å · c = 10.5873(5) Å
Z
2
Type-locality form

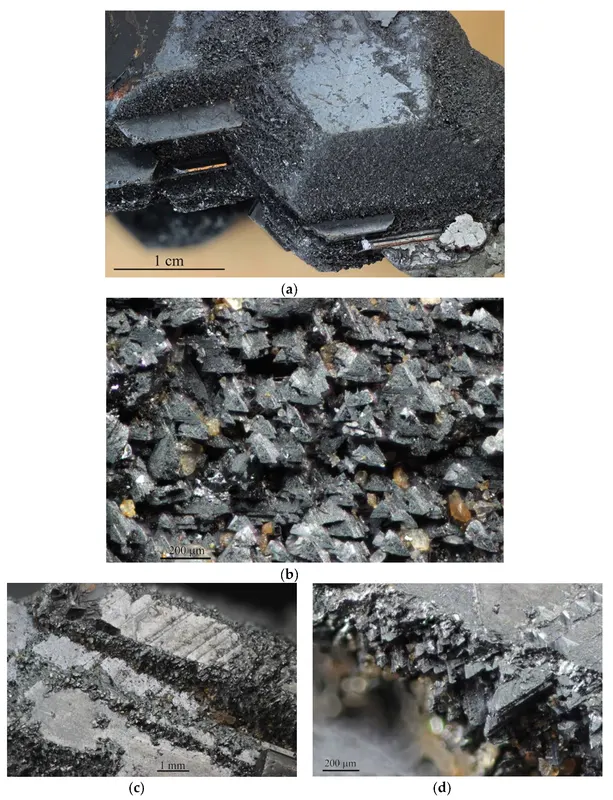

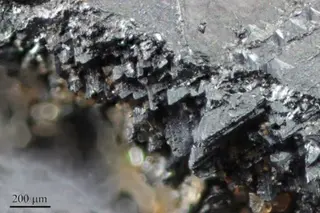

Small (50–400 μm) dark gray, disphenoidal crystals epitaxically oriented on wurtzite–sphalerite crystals pseudo-tetrahedral dispenoidal habit.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc265.380130.760
33.33%
16SSulfurSulfur432.060128.240
32.69%
31GaGalliumGallium169.72369.723
17.78%
29CuCopperCopper163.54663.546
16.20%
Total392.269100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2019-136
  • Richardsiet

In other languages

German
IMA 2019-136 · Richardsit

Classification

Strunz
10th ed.

2.CB

  • 2Sulfides and SulfosaltsClass
  • 2.CMetal Sulfides, M: S = 1: 1 (and similar)Division
  • 2.CBWith Zn, Fe, Cu, Ag, etc.Group
  • 2.CBRichardsiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2020Bindi, Luca, Jaszczak, John A. (2020) Richardsite, Zn2CuGaS4, A New Gallium-Essential Member of the Stannite Group from the Gem Mines near Merelani, Tanzania. Minerals, 10 (5) 467 doi:10.3390/min10050467 DOI: 10.3390/min10050467
  2. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) New mineral proposals approved in April 2020, CNMNC Newsletter 55. Mineralogical Magazine, 84 (3) 485-488 doi:10.1180/mgm.2020.39DOI: 10.1180/mgm.2020.39
  3. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 55 – CORRIGENDUM. Mineralogical Magazine, 84 (5) 795 doi:10.1180/mgm.2020.56DOI: 10.1180/mgm.2020.56
  4. 2022(2022) Richardsite. Handbook of Mineralogy. Mineralogical Society of America
