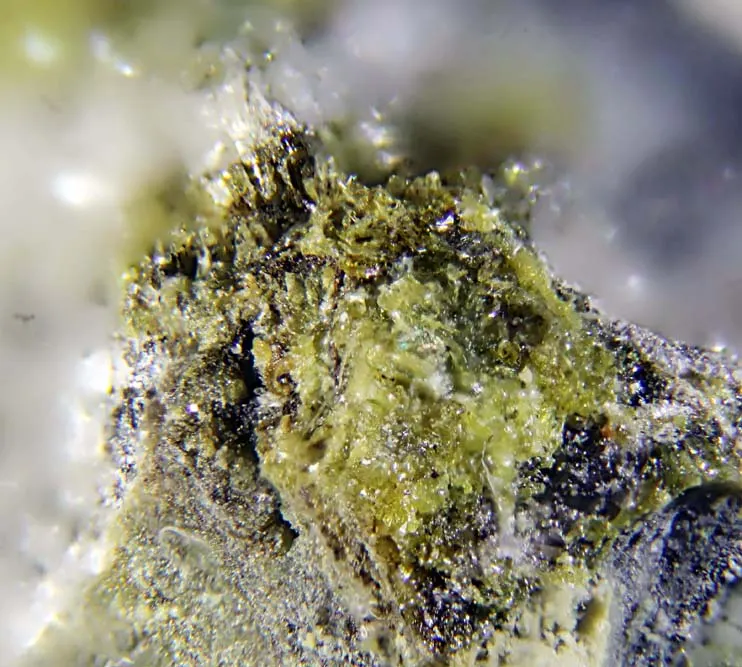

Rosiaite

PbSb2O6
IMA status
  • Approved
IMA symbol
Rsi
Also known as
  • IMA1995-021
  • Rosiaiet

Where it forms, where it's found

Type locality
Tafone mine (Valle del Tafone mining area)
  1. Manciano
  2. Grosseto Province
  3. Tuscany
  4. Italy

42.4799°, 11.5564°

13recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Resinous
Transparency
Transparent
Colour
Colourless · pale yellow
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

(0001)

Fracture
Conchoidal
Density
6.96 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.92 – 2.092
Surface relief
Very high
Principal indices
nω 2.092 · nε 1.92
Michel-Lévy diagramhighlighted lineδ = 0.1720
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1720 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1720 nm
Order4th order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#95
Cell parameters
a = 5.295(1) Å · c = 5.372(1) Å
Z
1
Morphology

Flat tabular hexagonal crystals.

Parting
Possible
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony2121.760243.520
44.54%
82PbLeadLead1207.200207.200
37.90%
8OOxygenOxygen615.99995.994
17.56%
Total546.714100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1995-021
  • Rosiaiet

In other languages

German
IMA 1995-021 · Rosiait
Spanish
Rosiaíta
Italian
Rosiaite

Classification

Strunz
10th ed.

4.DH.25

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DHWith large (+- medium-sized) cations; sheets of edge-sharing octahedraGroup
  • 4.DH.25RosiaiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1987Hill, Roderick J. (1987) Structure of PbSb2O6 and its relationship to the crystal chemistry of PbO2 in antimonial lead-acid batteries. Journal of Solid State Chemistry, 71. 12-18 doi:10.1016/0022-4596(87)90136-8DOI: 10.1016/0022-4596(87)90136-8
  2. 1996Basso, Riccardo, Lucchetti, Gabriella, Zefiro, Liviο, Palenzona, Andrea (1996) Rosiaite, PbSb2O6, a new mineral from the Cetine mine, Siena, Italy. European Journal of Mineralogy, 8 (3) 487-492 doi:10.1127/ejm/8/3/0487 DOI: 10.1127/ejm/8/3/0487
  3. 1997Mandarino, Joseph A. (1997) Abstracts of New Mineral Descriptions. The Mineralogical Record, 28 (2) 141-145
  4. 2005(2005) Rosiaite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2015Roper, Adam J., Leverett, Peter, Murphy, Timothy D., Williams, Peter A. (2015) Stabilities of byströmite, MgSb2O6, ordoñezite, ZnSb2O6 and rosiaite, PbSb2O6, and their possible roles in limiting antimony mobility in the supergene zone. Mineralogical Magazine, 79 (3) 537-544 doi:10.1180/minmag.2015.079.3.03DOI: 10.1180/minmag.2015.079.3.03
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Rosiaite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/rosiaite-7274},
  note      = {Accessed 2026-05-11}
}
