Satpaevite

Al12(V4+,V5+)8O37 · 30H2O (?)
IMA status
  • Approved
IMA symbol
Spv
Discovered
1959
Also known as
  • Satpaeviet

Where it forms, where it's found

Geological setting

In the oxidation zone of a vanadiferous clay-anthraxolite deposit.

Type locality
Kurumsak V Deposit
  1. Aksumbe
  2. Sozak District
  3. Turkistan Region
  4. Kazakhstan

44.3333°, 67.6333°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond

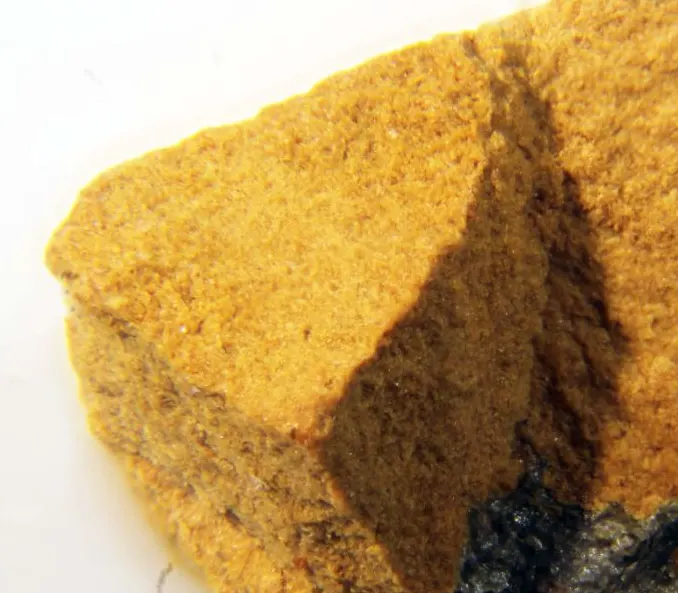

Colour
Saffron-yellow to greenish yellow
Cleavage
Perfect

One direction, perfect, pinacoidal.

Density
2.4 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70° · 2V calc = 74°
Refractive index
1.676 – 1.69
Surface relief
High
Principal indices
nα 1.676 · nβ 1.681 · nγ 1.69
Pleochroism
Weak
Dispersion
r > v strong
Extinction
Parallel extinction.
Notes

In transmitted light: greenish yellow to pale olive. Absorption: Z > X.

Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Type-locality form

Crystals, to 0.1 mm, platy with hexagonal to rounded outlines, in fine granular aggregates, may be foliated.

Comment

Questionable

Synonyms

  • Satpaeviet

In other languages

German
Satpaevit
Italian
Satpaevite
Russian
Сатпаевит

Classification

Strunz
10th ed.

4.HG.65

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HGUnclassified V oxidesGroup
  • 4.HG.65SatpaeviteSpecies
Dana
8th ed.

47.04.01.01

  • 47Vanadium OxysaltsClass
  • 47.04Vanadium BronzesType
  • 47.04.01— unnamed intermediate level —Group
  • 47.04.01.01SatpaeviteSpecies
CIM

21.3.5

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.3Vanadates of Al, rare earths, Pb, V or BiGroup
  • 21.3.5SatpaeviteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1959Fleischer, M. (1959) New Mineral Names. American Mineralogist, 44 (11-12). 1321-1329
  2. 1959Ankinovich, E.A. (1959) New vanadium minerals - satpaevite and al'vanite [alvanite]. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva, 88. 157-164
  3. 2005(2005) Satpaevite. Handbook of Mineralogy. Mineralogical Society of America
