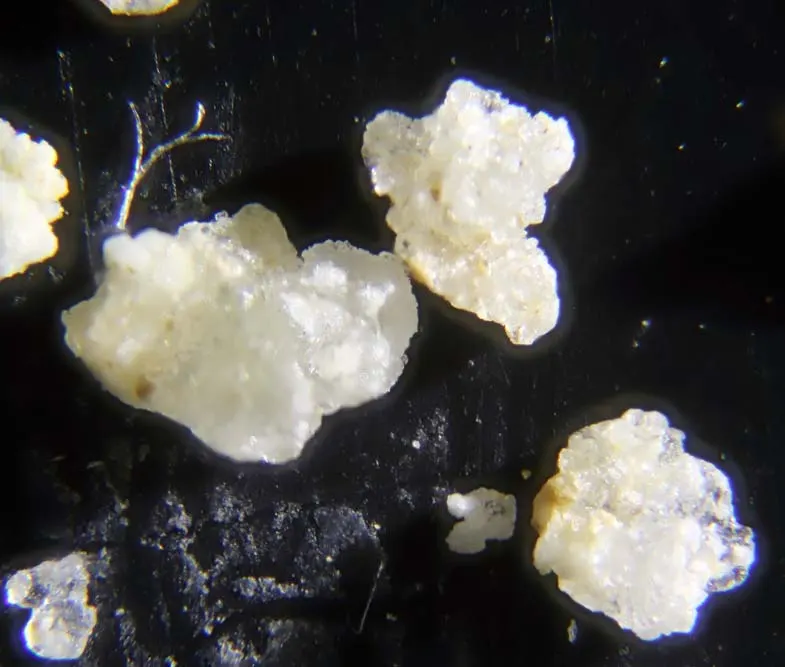

Sborgite

NaB5O6(OH)4 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Srg
Discovered
1957
Also known as
  • Sborgiet

Where it forms, where it's found

Geological setting

Incrustations formed from low temperature (32 to 60 C) soffioni (volcanic vents).

Type locality
Larderello
  1. Pomarance
  2. Pisa Province
  3. Tuscany
  4. Italy

43.2333°, 10.8667°

7recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
Colourless · white
Streak
White
Density
1.713 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 35° · 2V calc = 38°
Refractive index
1.432 – 1.488
Surface relief
Low
Principal indices
nα 1.432 – 1.435 · nβ 1.438 · nγ 1.450 – 1.488
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0355
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]355 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation355 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 11.189(8) Å · b = 16.474(14) Å · c = 13.567(9) Å
Cell angles
β = 112.82(3) °
Ratio a:b:c
1 : 1.472 : 1.213
Z
8
Type-locality form

White encrustrations intimately mixed with thenardite and sodium borates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
70.48%
5BBoronBoron510.81054.050
18.31%
11NaSodiumSodium122.99022.990
7.79%
1HHydrogenHydrogen101.00810.080
3.42%
Total295.107100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Sborgiet

In other languages

German
Sborgit
Italian
Sborgite

Classification

Strunz
10th ed.

6.EA.05

  • 6BoratesClass
  • 6.EPentaboratesDivision
  • 6.EANeso-pentaboratesGroup
  • 6.EA.05SborgiteSpecies
Dana
8th ed.

26.05.01.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.05PentaboratesType
  • 26.05.01— unnamed intermediate level —Group
  • 26.05.01.01SborgiteSpecies
CIM

9.1.11

  • 9BoratesClass
  • 9.1Borates of the alkalis and boric acidGroup
  • 9.1.11SborgiteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1957Cipriani, C. (1957) Un nuovo minerale fra i prodotti boriferi di Larderello. Atti della Accademia Nazionale dei Lincei. Rendiconti della Classe di Scienze Fisiche, Matematiche e Naturali: 22: 519-525.
  2. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (3-4). 378-387
  3. 1961McAllister, J.F. (1961) Sborgite in the Furnace Creek area, California. United States Geological Survey, Professional Paper 424, B299–B301.
  4. 1972Merlino, S. (1972) The crystal structure of sborgite, NaB5O6(OH)4·3H2O. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 28 (12) 3559-3567 doi:10.1107/s0567740872008349DOI: 10.1107/s0567740872008349
  5. 1978Menchetti, S.; Sabelli, C. (1978) The crystal structure of NaB5O6(OH)4. Acta Crystallographica Section B, 34 (1). 45-49 doi:10.1107/s0567740878002289DOI: 10.1107/s0567740878002289
