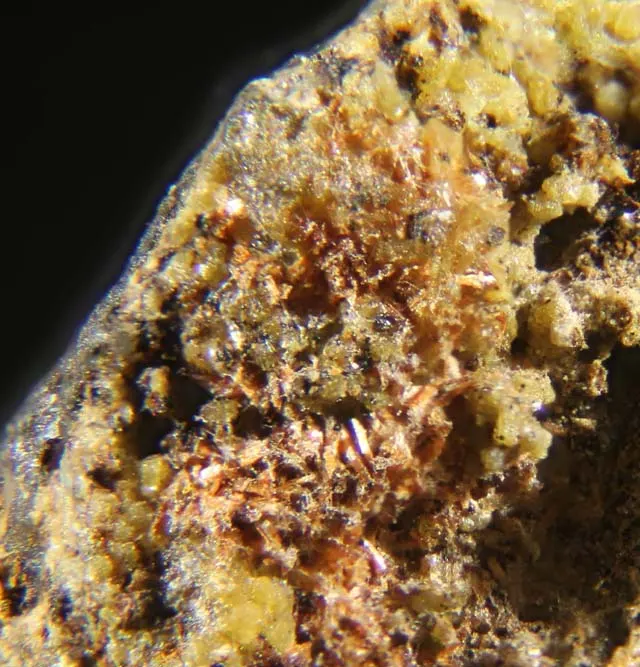

Schmidite

Zn(Fe3+0.5Mn2+0.5)2ZnFe3+(PO4)3(OH)3(H2O)8
IMA status
  • Approved
IMA symbol
Smd
IMA approved
2017
Also known as
  • IMA2017-012
  • Schmidiet

Where it forms, where it's found

Geological setting

Zoned granitic phosphate pegmatite. On/near altered phosphophyllite in a corroded triphylite nodule.

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

1recorded occurrences
Source · OpenStreetMap

Physical

Colour
orange-brown · red · copper-red
Tenacity
brittle
Cleavage
Perfect

(010)

Density
2.89 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 81.4° · 2V calc = 81.8°
Refractive index
1.64 – 1.737
Surface relief
High
Principal indices
nα 1.640 – 1.644 · nβ 1.679 – 1.681 · nγ 1.733 – 1.737
Pleochroism
Visible

X = light brown, Y = medium brown, Z = dark red brown Absorption X < Y < Z

Dispersion
None
Notes

Orientation X = b, Y = c, Z = a

Michel-Lévy diagramhighlighted lineδ = 0.0930
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]930 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation930 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 11.002(1) Å · b = 25.310(2) Å · c = 6.390(1) Å
Ratio a:b:c
1 : 2.300 : 0.581
Z
4
Morphology

Laths, elongated on [100] and flattened on (010)

Type-locality form

Radiating sprays of orange-brown to copper-red laths.

Comment

Spacegroup: Pmab

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
47.33%
30ZnZincZinc265.380130.760
16.82%
26FeIronIron255.845111.690
14.37%
15PPhosphorusPhosphorus330.97492.922
11.95%
25MnManganeseManganese154.93854.938
7.07%
1HHydrogenHydrogen191.00819.152
2.46%
Total777.439100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-012
  • Schmidiet

In other languages

French
schmidite
German
IMA 2017-012 · Schmidit

Classification

Strunz
10th ed.

8.DB.07

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DBWith only medium-sized cations, (OH, etc.):RO4< 1:1Group
  • 8.DB.07SchmiditeSpecies

Group, growth & confusion

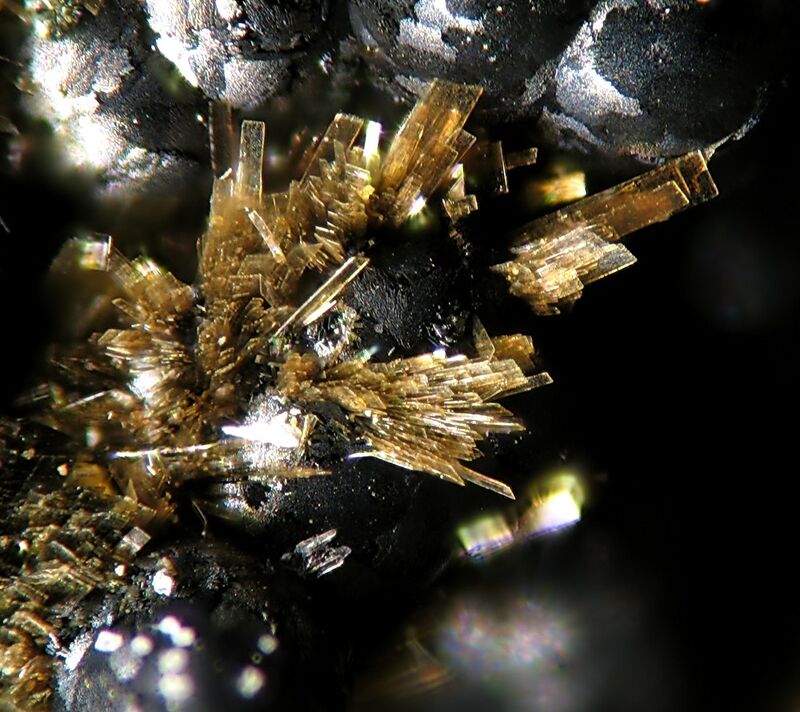

In the same group
3 members

Literature, links & citation

Citations
  1. 2017Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2017) New minerals and nomenclature modifications approved in 2017, CNMNC Newsletter No 37. Mineralogical Magazine, 81 (3) 737-742 doi:10.1180/minmag.2017.081.039DOI: 10.1180/minmag.2017.081.039
  2. 2019Grey, Ian E., Keck, Erich, Kampf, Anthony R., Cashion, John D., MacRae, Colin M., Glenn, Alexander M., Gozukara, Yesim (2019) Schmidite and wildenauerite, two new schoonerite-group minerals from the Hagendorf-Süd pegmatite, Oberpfalz, Bavaria. Mineralogical Magazine, 83 (2) 181-190 doi:10.1180/mgm.2018.123 DOI: 10.1180/mgm.2018.123
  3. 2022(2022) Schmidite. Handbook of Mineralogy. Mineralogical Society of America
