Schoonerite

ZnMn2+Fe2+2Fe3+(PO4)3(OH)2(H2O)7 · 2H2O
IMA status
  • Approved
IMA symbol
Soo
IMA approved
1976
Also known as
  • IMA1976-021
  • Schooneriet

Where it forms, where it's found

Geological setting

Altered phosphate pods in pegmatite.

Type locality
Palermo No. 1 Mine
  1. Groton
  2. Grafton County
  3. New Hampshire
  4. USA

43.7513°, -71.8896°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale tan to brown · greenish brown · reddish brown to bronzy on weathered surface
Streak
Pale brown
Tenacity
brittle
Cleavage
Perfect

(010) perfect; (001) good.

Fracture
Micaceous
Density
2.87 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70 – 80° · 2V calc = 84°
Refractive index
1.618 – 1.682
Surface relief
High
Principal indices
nα 1.618 · nβ 1.652 · nγ 1.682
Birefringence
0.070
Pleochroism
Weak

X = pale yellow, Y = pale brown, Z = brown.

Dispersion
noticable
Extinction
Parallel. X= b, Y = c, Z = a.
UV response
Not fluorescent in UV.
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]700 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation700 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#59
Cell parameters
a = 11.119 Å · b = 25.546 Å · c = 6.437 Å
Ratio a:b:c
1 : 2.298 : 0.579
Z
4
Morphology

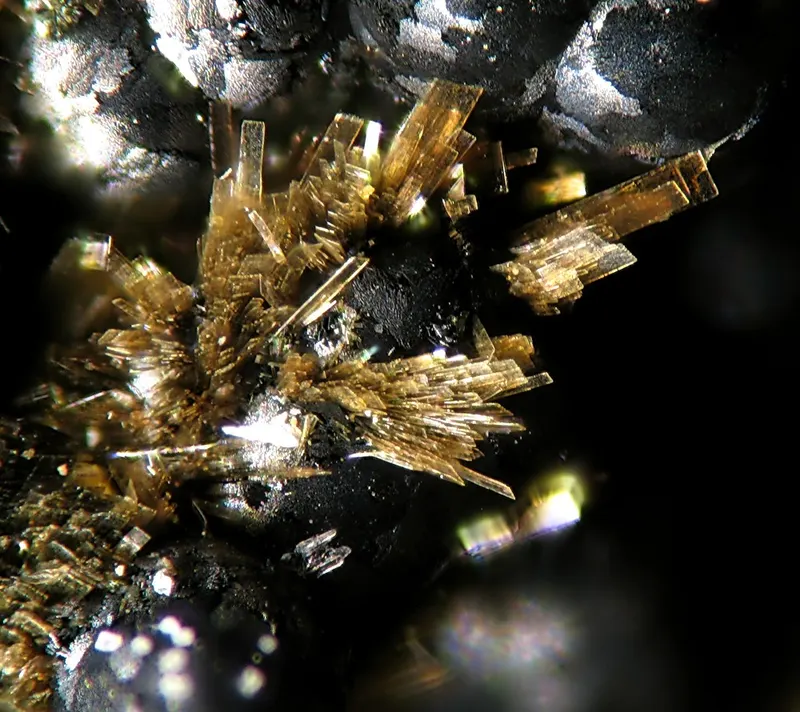

Lathlike and strawlike crystals, elongated along [100], flattened on (010),rarely to 2mm; as rosettes; as sprays and mats.

Type-locality form

Tiny (<1 mm) tufts of brown bronzey thin acicular crystals or occasionally as similarly small, thin rectangular laths.

Comment

Original setting = Pmab

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
47.86%
26FeIronIron355.845167.535
21.79%
15PPhosphorusPhosphorus330.97492.922
12.08%
30ZnZincZinc165.38065.380
8.50%
25MnManganeseManganese154.93854.938
7.15%
1HHydrogenHydrogen201.00820.160
2.62%
Total768.912100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1976-021
  • Schooneriet

In other languages

German
IMA 1976-021 · Schoonerit
Italian
Schoonerite

Classification

Strunz
10th ed.

8.DB.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DBWith only medium-sized cations, (OH, etc.):RO4< 1:1Group
  • 8.DB.15SchooneriteSpecies
Dana
8th ed.

42.08.03.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.08(AB)5(XO4)3Zq·xH2OType
  • 42.08.03— unnamed intermediate level —Group
  • 42.08.03.01SchooneriteSpecies
CIM

19.6.13

  • 19PhosphatesClass
  • 19.6Phosphates of ZnGroup
  • 19.6.13SchooneriteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1977Moore, Paul B, Kampf, Anthony R. (1977) Schoonerite, a new zinc-manganese-iron phosphate mineral. American Mineralogist, 62 (3-4) 246-249
  2. 1977Kampf, Anthony R. (1977) Schoonerite: its atomic arrangement. American Mineralogist, 62 (3-4) 250-255
  3. 2005(2005) Schoonerite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2018Grey, Ian Edward, Kampf, Anthony R., Keck, Erich, MacRae, Colin M., Cashion, John D., Gozukara, Yesim (2018) Crystal chemistry of schoonerite-group minerals. European Journal of Mineralogy, 30 (3) 621-634 doi:10.1127/ejm/2018/0030-2707 DOI: 10.1127/ejm/2018/0030-2707
