Shagamite

KFe11O17
IMA status
  • Approved
IMA symbol
Sgm
IMA approved
2021
Also known as
  • IMA2020-091
  • Shagamiet

Where it forms, where it's found

Geological setting

ferrite zone of gehlenite hornfels from the Hatrurim Complex exposed near Mt. Ye’elim, Hatrurim Basin, Israel. The mineral occurs in outer zones of gehlenite rock blocks that were heterogeneously altered by high-temperature (>1200 °C) ferritization. Ferritization was induced by K-bearing fluids or melts, generated as a by-product of late combustion processes.

Type locality
Ye’elim Mount
  1. Tamar Regional Council
  2. Beersheba Subdistrict
  3. Southern District
  4. Israel

31.2424°, 35.2787°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
dark brown

In thin plates, the mineral is translucent and varies in color from brown to light brown depending on thickness. Locally, the cleavage surface is light brown with a golden hue and exhibits a pearly luster, possibly reflecting surface hydration.

Cleavage
Perfect

present along (001), accompanied by prominent fracturing parallel to this plane.

Fracture is conchoidal at angles to (001) and stepped parallel on (001).

Fracture
Conchoidal · Step-Like
Density
4.12 g/cm³

Optical

Pleochroism
Strong

dark gray perpendicular to the c-axis to light gray parallel to the c-axis

Optical colour
gray
Anisotropism
strong
Bireflectance
weak
Internal reflections
Brown-orange
Tropism
Anisotropic
Reflectance R%
(17.8,22.1) 470, (16.5,21.3) 546, (15.8,20.2) 589, (12.3,17.8) 650
Reflected-light panel
15.6 %anisotropic · dual curve
Specimen sRGB 140, 105, 59
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
weak
Anisotropism
strong
Reflected colour
gray
Internal reflections
Brown-orange

Crystallography

Crystal system
Hexagonal
Space group
P63/mmc
Cell parameters
a = 5.9327(5) Å · c = 23.782(3) Å
Z
2
Type-locality form

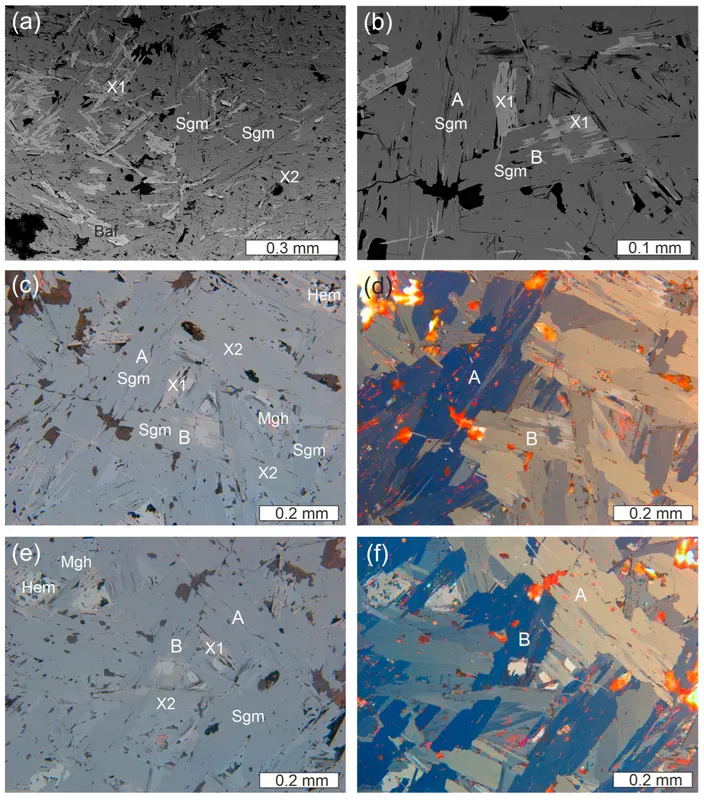

Shagamite forms platy crystals flattened on the (001). Individual crystals reach lengths of up to 0.5 mm and are typically no more than 0.15 mm thick. Most crystals contain inclusions of other ferrites.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron1155.845614.295
66.38%
8OOxygenOxygen1715.999271.983
29.39%
19KPotassiumPotassium139.09839.098
4.23%
Total925.376100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2020-091
  • Shagamiet

In other languages

German
IMA 2020-091 · Shagamit

Classification

Strunz
10th ed.

4.CC

  • 4OxidesClass
  • 4.CMetal: Oxygen = 2: 3,3: 5, and similarDivision
  • 4.CCWith large and medium-sized cationsGroup
  • 4.CCShagamiteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 2021Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2021) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) CNMNC Newsletter No 60. Mineralogical Magazine, 1-5 doi:10.1180/mgm.2021.30DOI: 10.1180/mgm.2021.30
  2. 2022(2022) Shagamite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2026Galuskin, Evgeny V.; Krüger, Hannes; Galuskina, Irina O.; Krüger, Biljana; Nejbert, Krzysztof; Vapnik, Yevgeny (2026) Shagamite, KFe11O17, a New Mineral with β-Alumina Structure from the Hatrurim Basin, Negev Desert, Israel. Minerals, 16 (2). doi:10.3390/min16020180DOI: 10.3390/min16020180
