Shcherbakovite

K2NaTi2O(OH)Si4O12
IMA status
  • Approved
  • Grandfathered
IMA symbol
Sbk
Discovered
1954
Also known as
  • Scherbakovit
  • Scherbakovita
  • Scherbakovite
  • +1 more

Where it forms, where it's found

Geological setting

In a pegmatite in alkalic rocks.

Type locality
Apatitovyi Tsirk
  1. Rasvumchorr Mine
  2. Rasvumchorr Mt
  3. Murmansk Oblast
  4. Russia
19recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Dark brown
Tenacity
brittle
Cleavage
Poor/Indistinct

Two directions, observed microscopically, may be parting.

Fracture
Irregular/Uneven
Density
2.968 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 82° · 2V calc = 82°
Refractive index
1.707 – 1.776
Surface relief
High
Principal indices
nα 1.707 · nβ 1.745 · nγ 1.776
Pleochroism
Visible

X = pale yellow; Y = yellow; Z = brownish yellow.

Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.0690
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]690 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation690 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Imma
Cell parameters
a = 10.55 Å · b = 13.92 Å · c = 8.1 Å
Ratio a:b:c
1 : 1.319 : 0.768
Z
4
Type-locality form

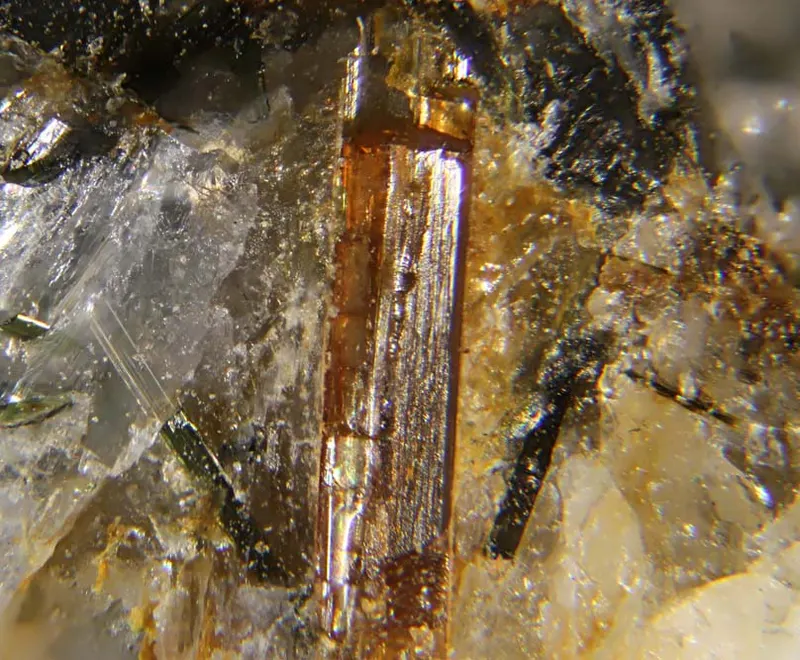

Crystals are long prismatic, to 6 cm; terminated crystals are uncommon.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
41.92%
14SiSiliconSilicon428.085112.340
21.03%
22TiTitaniumTitanium247.86795.734
17.92%
19KPotassiumPotassium239.09878.196
14.64%
11NaSodiumSodium122.99022.990
4.30%
1HHydrogenHydrogen11.0081.008
0.19%
Total534.254100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Zr
  • Al
  • Fe
  • Ta
  • Mn
  • Mg
  • Ca
  • Cl
  • H2O

Synonyms

  • Scherbakovit
  • Scherbakovita
  • Scherbakovite
  • Shcherbakoviet

In other languages

German
Shcherbakovit
Italian
Shcherbakovite
Chinese
硅铌钡钠石
Russian
Щербаковит

Classification

Strunz
10th ed.

9.DH.20

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.20ShcherbakoviteSpecies
Dana
8th ed.

65.03.04.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.03Single-Width Unbranched Chains, W=1 with chains P=4Type
  • 65.03.04Batisite groupGroup
  • 65.03.04.02ShcherbakoviteSpecies
CIM

17.8.13

  • 17Silicates Containing other AnionsClass
  • 17.8Silicates with niobate or tantalateGroup
  • 17.8.13ShcherbakoviteSpecies

Group, growth & confusion

In the same group
2 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1954Es'kova, E.M., Kazakova, M.E. (1954) Shcherbakovite - a new mineral. Doklady Akademii Nauk SSSR: 99: 837-840.
  2. 1955Fleischer, M. (1955) New mineral names. American Mineralogist: 40: 787-788.
  3. 1990Mitchell, Roger H. (1990) Shcherbakovite in leucite phlogopite lamproites from the Leucite Hills, Wyoming. Mineralogical Magazine, 54 (377) 645-646 doi:10.1180/minmag.1990.054.377.18 DOI: 10.1180/minmag.1990.054.377.18
  4. 2003Uvarova, Y. A., Sokolova, E., Hawthorne, F. C., Liferovich, R. P., Mitchell, R. H. (2003) The crystal chemistry of shcherbakovite from the Khibina massif, Kola Peninsula, Russia. The Canadian Mineralogist, 41 (5) 1193-1201 doi:10.2113/gscanmin.41.5.1193 DOI: 10.2113/gscanmin.41.5.1193
  5. 2004Jambor, J.L. and Roberts, A.C. (2004) New mineral names. American Mineralogist: 89: 1826-1834.
