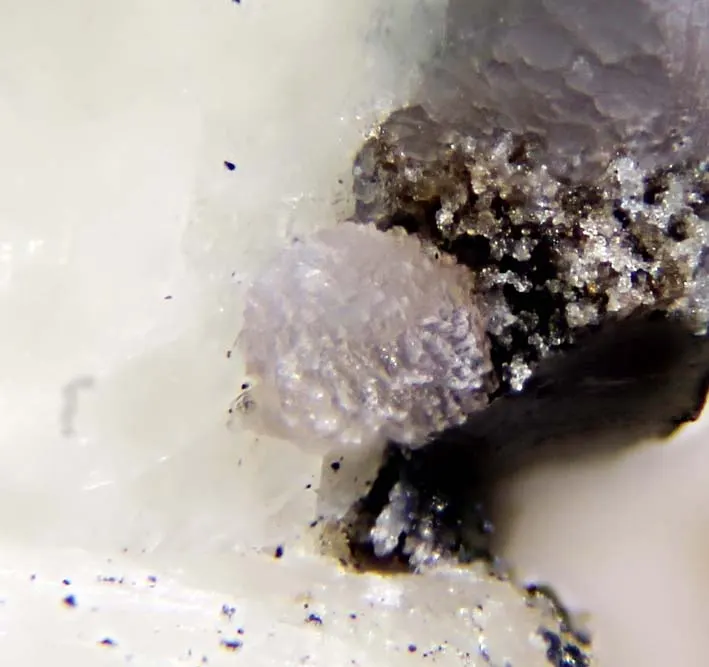

Strontiowhitlockite

Sr9◻Mg(PO3OH)(PO4)6
IMA status
  • Approved
IMA symbol
Swht
Discovered
1989
IMA approved
1989
Also known as
  • IMA1989-040
  • Strontiowhitlockiet
  • Strontiowhitlockita

Where it forms, where it's found

Geological setting

In dolomite carbonatite.

Type locality
Kovdor Zheleznyi Mine
  1. Kovdor Massif
  2. Kovdorsky District
  3. Murmansk Oblast
  4. Russia

67.5597°, 30.4258°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White
Streak
White
Cleavage
Distinct/Good

Moderate (001) cleavage(or parting).

Density
3.64 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.598 – 1.601
Surface relief
Moderate
Principal indices
nω 1.601 · nε 1.598
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0030
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]30 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation30 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#85
Cell parameters
a = 10.644(9) Å · c = 39.54(6) Å
Z
6
Type-locality form

Pipes and roselike aggregates composed of rounded tabular crystals. Crystals are up to 5-8 µm across are flattened on (001). The pipes are up to 2 mm long and 20 µm in diameter, with a radial structure, such that the [001] axis of each crystal is subparallel to the direction of pipe elongation. The inner volumes of the pipes are occupied by "spindles" of the Sr-Mg phosphate, that exhibit a hexagonal cross-section.

Comment

Space group R3c assigned by analogy with whitlockite.

Chemical composition

Impurities
  • Ca

Synonyms

  • IMA1989-040
  • Strontiowhitlockiet
  • Strontiowhitlockita

In other languages

German
IMA 1989-040 · Strontiowhitlockit
Italian
Strontiowhitlockite · Stronziowhitlockite

Classification

Strunz
10th ed.

8.AC.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.APhosphates, etc. without additional anions, without H2ODivision
  • 8.ACWith medium-sized and large cationsGroup
  • 8.AC.45StrontiowhitlockiteSpecies
Dana
8th ed.

38.03.04.02

  • 38Anhydrous Normal Phosphates, Arsenates, and VanadatesClass
  • 38.03(AB)3(XO4)2Type
  • 38.03.04Whitlockite groupGroup
  • 38.03.04.02StrontiowhitlockiteSpecies
CIM

19.5.1

  • 19PhosphatesClass
  • 19.5Phosphates of Sr and BaGroup
  • 19.5.1StrontiowhitlockiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1991Britvin, S.N., Pakhomovskii, Y.A., Bogdanova, A.N., Skiba, V.I. (1991) Strontiowhitlockite, Sr9Mg(PO3OH)(PO4)6, a new mineral from the Kovdor deposit, Kola Peninsula, U.S.S.R. The Canadian Mineralogist: 29(1): 87-93. https://rruff.info/rruff_1.0/uploads/CM29_87.pdf
  2. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  3. 2005(2005) Strontiowhitlockite. Handbook of Mineralogy. Mineralogical Society of America
