Tapiolite-(Fe)

Fe2+Ta2O6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Tap-Fe
Discovered
1863
Also known as
  • Ferrotapiolit
  • Ferrotapiolita
  • Ferrotapiolite
  • +1 more

Where it forms, where it's found

Geological setting

Granite pegmatites.

Granite pegmatites

Type locality
Tapiolite-(Fe) type locality
  1. Kulmala
  2. Sukula Pegmatites
  3. Tammela
  4. Kanta-Häme
  5. Finland
74recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Brownish black
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Splintery
Density
7.90 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
2.27 – 2.42
Surface relief
Very high
Principal indices
nω 2.27 · nε 2.42
Birefringence
0.15
Pleochroism
Strong

O = pale reddish brown, E nearly opaque

Extinction
Parallel
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.1500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1500 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1500 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#190
Cell parameters
a = 4.762 Å · c = 9.272 Å
Z
2
Morphology

Short prismatic, nearly equant, rarely elongated. (110), (100), (001), (113).

Twinning

(013) common

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
73TaTantalumTantalum2180.948361.896
70.44%
8OOxygenOxygen615.99995.994
18.69%
26FeIronIron155.84555.845
10.87%
Total513.735100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferrotapiolit
  • Ferrotapiolita
  • Ferrotapiolite
  • Tapioliet-(Fe)

In other languages

German
Ferrotapiolit · IMA 1983-A · IMA 2007 s.p. · Tapiolit-(Fe)
Spanish
Ferrotapiolita · Tapiolita- · Tapiolita-(Fe)
Italian
Tapiolite- · Tapiolite-(Fe)
Japanese
タピオライト
Chinese
重鉭鐵礦 · 重钽铁矿

Classification

Strunz
10th ed.

4.DB.10

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DBWith medium-sized cations; chains of edge-sharing octahedraGroup
  • 4.DB.10Tapiolite-(Fe)Species
Dana
8th ed.

08.03.01.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.03AB2O6Type
  • 08.03.01Tapiolite SeriesGroup
  • 08.03.01.01Tapiolite-(Fe)Species
CIM

18.1.47

  • 18Niobates and TantalatesClass
  • 18.1Niobates and tantalates containing neither rare earths nor UGroup
  • 18.1.47Tapiolite-(Fe)Species

Group, growth & confusion

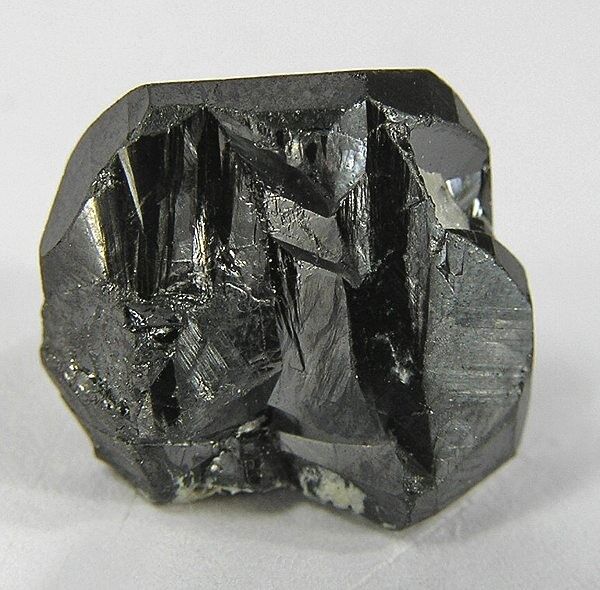

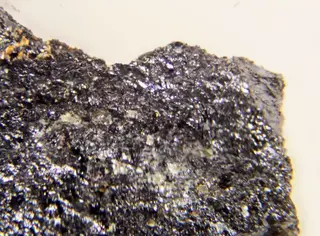

In the same group
1 members

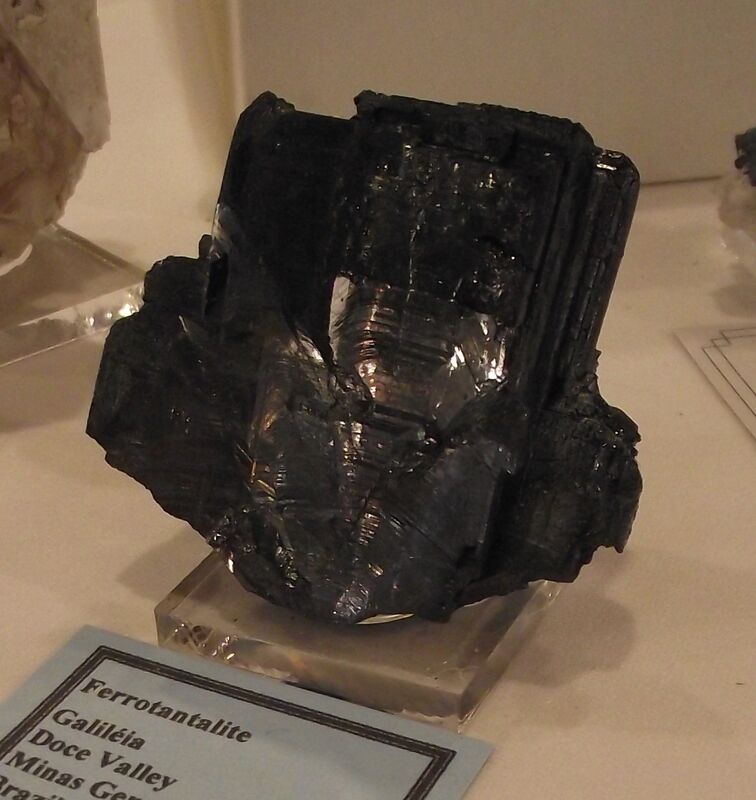

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1863Nordenskiöld, A.E. (1863) Om tantalitartade mineralier från nejden af Torro. Öfversigt af Kongl. vetenskaps-akademiens förhandlingar, 20. 443-453
  2. 1917Simpson, Edward S. (1917) On Tapiolite in the Pilbara goldfield, Western Australia. Mineralogical Magazine and Journal of the Mineralogical Society, 18 (84) 107-121 doi:10.1180/minmag.1917.018.84.05 DOI: 10.1180/minmag.1917.018.84.05
  3. 1968von Heidenstam, O. (1968) Neutron and X-ray diffraction studies on tapiolite and some synthetic substances of trirutile structure. Arkiv för Kemi: 28: 375-387.
  4. 1969Osaka, T., Nakayama, T. (1969) On the structure of tapiolite formed by solid state reactions. Transactions of the Japan Institute of Metals: 10: 437-438.
  5. 1978Clark, A. M., Fejer, E. E. (1978) Tapiolite, its chemistry and cell dimensions. Mineralogical Magazine, 42 (324) 477-480 doi:10.1180/minmag.1978.042.324.09 DOI: 10.1180/minmag.1978.042.324.09
