Tetrawickmanite

Mn2+Sn4+(OH)6
IMA status
  • Approved
IMA symbol
Twm
Discovered
1971
IMA approved
1971
Also known as
  • IMA1971-018
  • Tetrawickmaniet

Where it forms, where it's found

Geological setting

Spodumene-albite pegmatite.

Type locality
Foote Lithium Co. Mine
  1. Kings Mountain
  2. Cleveland County
  3. North Carolina
  4. USA

35.2111°, -81.3556°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Honey-yellow · brown-orange
Density
3.65 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.72 – 1.724
Surface relief
High
Principal indices
nω 1.724 · nε 1.72
Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#140
Cell parameters
a = 7.8655(4) Å · c = 7.7938(6) Å
Unit cell volume
482.17 ų
Z
4

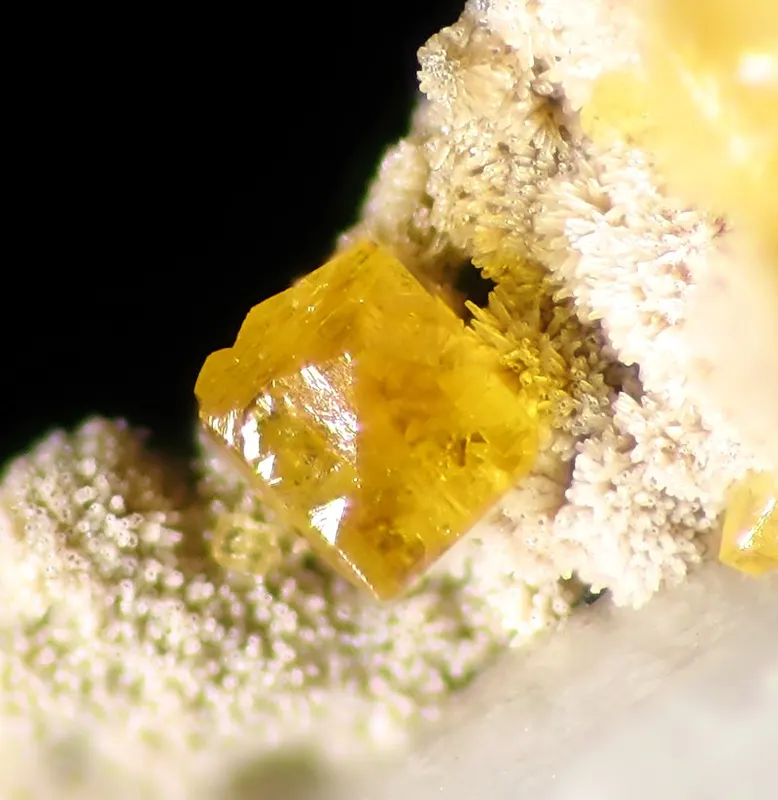

Morphology

Pyramidal pseudo-octahedral crystals, similar in habit to some wulfenite crystals. The only forms identified are the prominent pyramid (112), the pinacoid (001), and a very minor prism (100}.

Type-locality form

Brownish-orange to bright yellow crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
50SnTinTin1118.710118.710
43.06%
8OOxygenOxygen615.99995.994
34.82%
25MnManganeseManganese154.93854.938
19.93%
1HHydrogenHydrogen61.0086.048
2.19%
Total275.690100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1971-018
  • Tetrawickmaniet

In other languages

German
IMA 1971-018 · Tetrawickmanit
Spanish
Tetrawickmanita
Italian
Tetrawickmanite
Chinese
四方羟锡锰石

Classification

Strunz
10th ed.

4.FC.15

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FCHydroxides with OH, without H2O; corner-sharing octahedraGroup
  • 4.FC.15TetrawickmaniteSpecies
Dana
8th ed.

06.03.07.02

  • 06Hydroxides and Oxides Containing HydroxylClass
  • 06.03X(OH)3Type
  • 06.03.07Wickmanite group (Tetragonal: P42/n)Group
  • 06.03.07.02TetrawickmaniteSpecies
CIM

7.11.8

  • 7Oxides and HydroxidesClass
  • 7.11Oxides of Sn and PbGroup
  • 7.11.8TetrawickmaniteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1973Fleischer, Michael (1973) New mineral names. American Mineralogist, 58 (9-10). 966-967
  2. 1973White, John Sampson, Nelen, Joseph A. (1973) Tetrawickmanite, Tetragonal MnSn(OH)6 - A New Mineral From North Carolina, and the Stottite Group. The Mineralogical Record, 4 (1) Tucson. 24-30
  3. 1978Dunn, Pete J. (1978) Mineralogical Notes. Tungstenian tetrawickmanite from Långban, Sweden. The Mineralogical Record, 9 (1) 41
  4. 2007(2007) Tetrawickmanite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2015Lafuente, Barbara, Yang, Hexiong, Downs, Robert T. (2015) Crystal structure of tetrawickmanite, Mn2+Sn4+(OH)6. Acta Crystallographica Section E Crystallographic Communications, 71 (2). 234-237 doi:10.1107/s2056989015001632DOI: 10.1107/s2056989015001632
