Timroseite

Pb2Cu5(TeO6)2(OH)2
IMA status
  • Approved
IMA symbol
Tim
IMA approved
2009
Also known as
  • IMA2009-064
  • Timroseiet

Where it forms, where it's found

Geological setting

On fracture surfaces and in small vugs in quartz veins.

Type locality
Aga Mine
  1. Otto Mountain
  2. Baker
  3. Soda Mountains
  4. Silver Lake Mining District
  5. San Bernardino County
  6. California
  7. USA

35.2722°, -116.0951°

14recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Olive to lime green · dark olive green
Streak
Very pale yellowish green
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
6.982 g/cm³

Optical

Optical type
Biaxial (+)
Surface relief
Very high
Principal indices
n 2.113
Pleochroism
Visible

X = greenish yellow, Y = yellowish green, Z = dark green.

Dispersion
None observed.
UV response
Non-fluorescent.
Notes

Average refractive index (n = 2.113) was calculated from the Gladstone-Dale relationship. 2V = large.

Crystallography

Crystal system
Orthorhombic
Space group
#34
Cell parameters
a = 11.5340(5) Å · b = 9.6225(4) Å · c = 5.2000(2) Å
Ratio a:b:c
1 : 0.834 : 0.451
Unit cell volume
577.13 ų
Z
2
Morphology

Observed forms: (001), (110) and (010).

Twinning

No twinning was observed.

Type-locality form

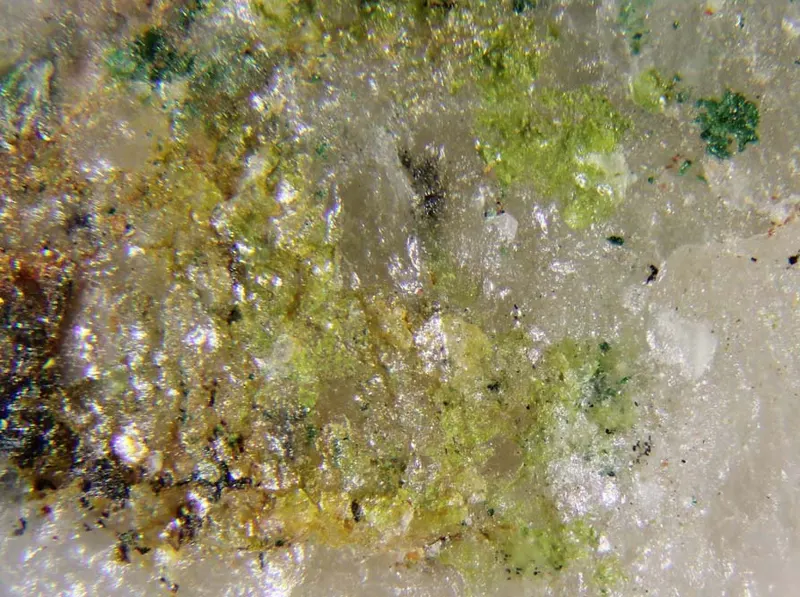

Irregular rounded crystalline masses or diamond-shaped plates in subparallel sheaf-like aggregates.

Comment

Original space group setting: P21nm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
34.15%
29CuCopperCopper563.546317.730
26.19%
52TeTelluriumTellurium2127.600255.200
21.03%
8OOxygenOxygen1415.999223.986
18.46%
1HHydrogenHydrogen21.0082.016
0.17%
Total1213.332100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Cl

Synonyms

  • IMA2009-064
  • Timroseiet

In other languages

German
IMA 2009-064 · Timroseit
Italian
timroseite

Classification

Strunz
10th ed.

7.BB.65

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BBWith medium-sized cationsGroup
  • 7.BB.65TimroseiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 2010Kampf, A. R., Mills, S. J., Housley, R. M., Marty, J., Thorne, B. (2010) Lead-tellurium oxysalts from Otto Mountain near Baker, California: V. Timroseite, Pb2Cu2+5(Te6+O6)2(OH)2, and paratimroseite, Pb2Cu2+4(Te6+O6)2(H2O)2, two new tellurates with Te-Cu polyhedral sheets. American Mineralogist, 95 (10) 1560-1568 doi:10.2138/am.2010.3514 DOI: 10.2138/am.2010.3514
  2. 2021(2021) Timroseite. Handbook of Mineralogy. Mineralogical Society of America
