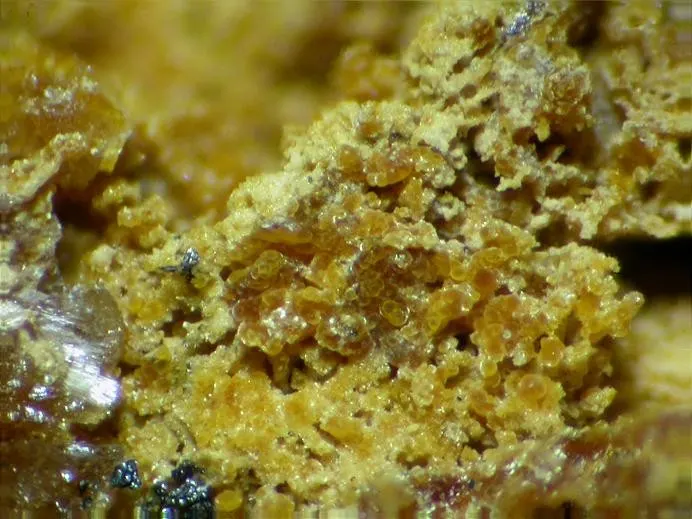

Tinsleyite

KAl2(PO4)2(OH) · 2H2O
IMA status
  • Approved
IMA symbol
Tin
Discovered
1983
IMA approved
1983
Also known as
  • IMA1983-004
  • Tinsleyiet

Where it forms, where it's found

Geological setting

Pegmatite.

Type locality
Tip Top Mine
  1. Fourmile
  2. Custer Mining District
  3. Custer County
  4. South Dakota
  5. USA

43.7156°, -103.6694°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Magenta to light brownish red · colourless

Trivalent manganese

Streak
Pink
Tenacity
brittle
Density
2.69 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 86° · 2V calc = 86°
Refractive index
1.591 – 1.604
Surface relief
Moderate
Principal indices
nα 1.591 · nβ 1.597 · nγ 1.604
Pleochroism
Strong

X = pale orange brown, Y = light purple, and Z = dark purplish red.

Dispersion
r > v distinct
Extinction
X = b.
UV response
Not fluorescent
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.602(8) Å · b = 9.532(6) Å · c = 9.543(11) Å
Cell angles
β = 103.16(6) °
Ratio a:b:c
1 : 0.993 : 0.994
Z
4
Type-locality form

Thin, magenta-red layers on common Fe-rich leucophosphite.

Comment

Point Group: 2/m or m.; Space Group: P2/n or Pn.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
52.37%
15PPhosphorusPhosphorus230.97461.948
18.43%
13AlAluminiumAluminium226.98253.964
16.06%
19KPotassiumPotassium139.09839.098
11.64%
1HHydrogenHydrogen51.0085.040
1.50%
Total336.039100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1983-004
  • Tinsleyiet

In other languages

German
IMA 1983-004 · Tinsleyit
Italian
IMA1983-004 · tinsleyite
Chinese
硬磷钾铝石

Classification

Strunz
10th ed.

8.DH.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.10TinsleyiteSpecies
Dana
8th ed.

42.11.06.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.06Leucophosphite GroupGroup
  • 42.11.06.02TinsleyiteSpecies
CIM

19.8.6

  • 19PhosphatesClass
  • 19.8Phosphates of Al and other metalsGroup
  • 19.8.6TinsleyiteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1984Dunn, Pete J., Rouse, Roland C., Campbell, Thomas J., Roberts, Willard L. (1984) Tinsleyite, the aluminum analogue of leucophosphite, from the Tip Top pegmatite in South Dakota. American Mineralogist, 69 (3-4) 374-376
  2. 1999Dick, Stefan (1999) Über die Struktur von synthetischem Tinsleyit K[Al2(PO4)2(OH)(H2O)]·H2O/The Structure of Synthetic Tinsleyite K[Al2(PO4)2(OH)(H2O)]·H2O. Zeitschrift für Naturforschung B, 54. 1385-1390 doi:10.1515/znb-1999-1109DOI: 10.1515/znb-1999-1109
  3. 2002Marincea, Stefan, Dumitras, Delia, Gibert, Raymonde (2002) Tinsleyite in the ''dry'' Cioclovina Cave (Sureanu Mountains, Romania): the second occurrence. European Journal of Mineralogy, 14 (1) 157-164 doi:10.1127/0935-1221/2002/0014-0157DOI: 10.1127/0935-1221/2002/0014-0157
  4. 2012Yakubovich, O. V., Massa, W., Dimitrova, O. V. (2012) A novel potassium-rich variant of tinsleyite, [K1.5(H2O)0.5|[Al2(OH){(OH)0.5(H2O)0.5}(PO4)2]. The Canadian Mineralogist, 50 (2). 559-569 doi:10.3749/canmin.50.2.559DOI: 10.3749/canmin.50.2.559
  5. 2021(2021) Tinsleyite. Handbook of Mineralogy. Mineralogical Society of America
