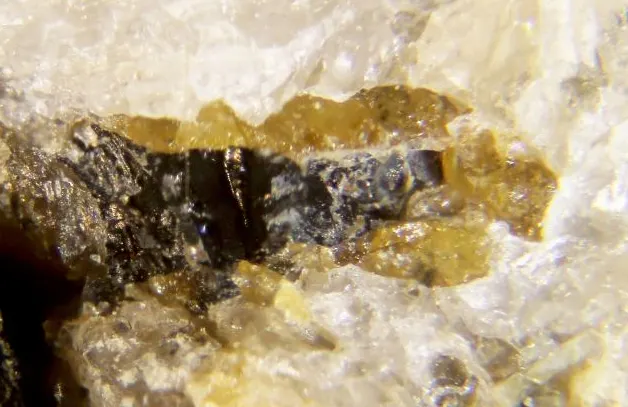

Tisinalite

Na3Mn2+TiSi6O15(OH)3
IMA status
  • Approved
IMA symbol
Tis
Discovered
1979
IMA approved
1979
Also known as
  • H-Kazakovite
  • IMA1979-052
  • Tisinaliet
  • +1 more

Where it forms, where it's found

Geological setting

In alkalic pegmatites. Formed by the hydrothermal alteration of lomonosovite and barium-lamprophyllite.

Type locality
Koashva Open Pit
  1. Koashva Mt
  2. Murmansk Oblast
  3. Russia

67.6167°, 34.0000°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Yellow-orange
Fracture
Irregular/Uneven · Conchoidal
Density
2.66 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.59 – 1.624
Surface relief
Moderate
Principal indices
nω 1.624 · nε 1.590 – 1.592
Michel-Lévy diagramhighlighted lineδ = 0.0330
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]330 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation330 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Cell parameters
a = 10.14 Å · c = 13.08 Å
Z
3
Type-locality form

Rough crystals up to 1 x 0.5 x 0.5 mm and granular aggregates up to 1 cm wide.

Comment

Space Group: n.d.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
45.62%
14SiSiliconSilicon628.085168.510
26.69%
11NaSodiumSodium322.99068.970
10.93%
25MnManganeseManganese154.93854.938
8.70%
22TiTitaniumTitanium147.86747.867
7.58%
1HHydrogenHydrogen31.0083.024
0.48%
Total631.291100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • K

Synonyms

  • H-Kazakovite
  • IMA1979-052
  • Tisinaliet
  • Tisinalit

In other languages

German
IMA 1979-052 · Tisinalith
Italian
Tisinalite
Russian
IMA1979-052 · тисиналит

Classification

Strunz
10th ed.

9.CJ.15a

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CJ[Si6O18]12- 6-membered single rings (sechser-Einfachringe), without insular complex anionsGroup
  • 9.CJ.15aTisinaliteSpecies
Dana
8th ed.

61.01.2a.03

  • 61Cyclosilicates Six-membered RingsClass
  • 61.01Six-Membered Rings with [Si6O18] rings; possible (OH) and Al substitutionType
  • 61.01.2a— unnamed intermediate level —Group
  • 61.01.2a.03TisinaliteSpecies
CIM

14.9.25

  • 14Silicates not Containing AluminumClass
  • 14.9Silicates of TiGroup
  • 14.9.25TisinaliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1980Kapustin, Y.L., Pudovkina, Z.V., Bykova, A.V. (1980) Tinsinalite, Na3H3(Mn,Ca,Fe)TiSi6(O,OH)18·2H2O, a new mineral of the lovozerite group. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 109(2): 223-229.
  2. 1981Fleischer, Michael, Chao, George Y., Francis, Carl A., Pabst, and Adolf (1981) New Mineral Names. American Mineralogist, 66 (1-2) 217-220
  3. 2001(2001) Tisinalite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2003Yamnova, N.A., Egorov-Tismenko, Y.K., Pekov, I.V., Shchegol'kova, L.V. (2003) Crystal structure of tisinalite Na2(Mn,Ca)1-x(Ti,Zr,Nb,Fe3+)[Si6O8(O,OH)10]. Crystallography Reports: 48: 551-556.
  5. 2009Pekov, Igor V., Krivovichev, Sergey V., Zolotarev, Andrey A., Yakovenchuk, Viktor N., Armbruster, Thomas, Pakhomovsky, Yakov A. (2009) Crystal chemistry and nomenclature of the lovozerite group. European Journal of Mineralogy, 21 (5) 1061-1071 doi:10.1127/0935-1221/2009/0021-1957DOI: 10.1127/0935-1221/2009/0021-1957
