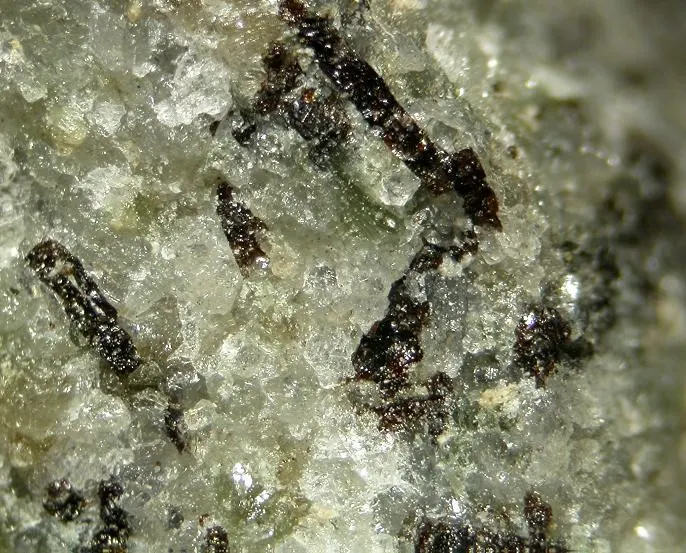

Titantaramellite

Ba4(Ti,Fe3+,Mg)4(O,OH)2[B2Si8O27]Clx
IMA status
  • Approved
IMA symbol
Ttmel
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-046
  • Titantaramelliet

Where it forms, where it's found

Type locality
Pacific Cement and Aggregate Company quarry
  1. Santa Cruz
  2. Santa Cruz County
  3. California
  4. USA

36.9826°, -122.0483°

16recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent · Opaque
Colour
dark brown to black
Cleavage
Perfect

(100)

Density
4.05 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 45 – 77° · 2V calc = 64 – 70°
Refractive index
1.739 – 1.782
Surface relief
High
Principal indices
nα 1.739 – 1.753 · nβ 1.749 – 1.761 · nγ 1.770 – 1.782
Pleochroism
Strong

X = Y = yellow-brown; Z = opaque

Dispersion
r > v
Extinction
X = c; Y = b; Z = a.
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 12.21 Å · b = 13.95 Å · c = 7.13 Å
Ratio a:b:c
1 : 1.143 : 0.584
Type-locality form

As well-formed crystals, equidimensional to tabular.

Comment

Space Group: [Pnmm:]

Crystal structure

Chemical composition

Impurities
  • Mn
  • H2O

Synonyms

  • IMA1977-046
  • Titantaramelliet

In other languages

German
IMA 1977-046 · Titantaramellit
Italian
Titantaramellite
Chinese
钛纤硅钡铁石

Classification

Strunz
10th ed.

9.CE.20

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CE.20TitantaramelliteSpecies
Dana
8th ed.

64.03.01.02

  • 64Cyclosilicates Rings with Other Anions and Insular Silicate GroupsClass
  • 64.03Rings with Other Anions and Insular Silicate Groups: 4-membered rings with [Si2O7] dimersType
  • 64.03.01Taramellite groupGroup
  • 64.03.01.02TitantaramelliteSpecies
CIM

17.5.35

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.35TitantaramelliteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1960Montgomery, J.H. (1960) A study of barium minerals from the Yukon Territory. M.S. Thesis, University of British Columbia.
  2. 1980Mazzi, Fiorenzo, Rossi, Giuseppe (1980) The crystal structure of taramellite. American Mineralogist, 65 (1-2) 123-128
  3. 1984Alfors, John T., Pabst, Adolf (1984) Titanian taramellites in western North America. American Mineralogist, 69 (3-4) 358-373
  4. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  5. 2001(2001) Titantaramellite. Handbook of Mineralogy. Mineralogical Society of America
