Cerchiaraite-(Fe)

Ba4Fe3+4(Si4O12)O2(OH)4Cl2[Si2O3(OH)4]
IMA status
  • Approved
IMA symbol
Ccr-Fe
IMA approved
2012
Also known as
  • Cerchiaraiet-(Fe)
  • IMA2012-012

Where it forms, where it's found

Geological setting

small fractures and veinlets within metacherts of a Jurassic ophiolitic sequence; genesis: re-equilibration of the ophiolitic sequences during tectonometamorphic overprinting, aged ca. 80 Ma, in prehnite-pumpellyite facies conditions (2–3kB, 250–300<sup>o<sup>C)

quartz-sanbomite vein assemblages resulting from fluid interaction along the margin of the vein (Esquire #7 and #8 claims)

Type locality
Cerchiara Mine
  1. Borghetto di Vara
  2. La Spezia Province
  3. Liguria
  4. Italy

44.1983°, 9.7075°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
tan to brown · blue to bluish-green

tan/brown: Cerchiara; blue/bluish-green: California

Streak
colorless to tan (Cerchiara), pale green-blue (California)
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.710 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.741 – 1.768
Surface relief
High
Principal indices
nω 1.741 · nε 1.768
Pleochroism
Weak

colorless (O), yellow (E), O < E

Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#176
Cell parameters
a = 14.3354(19) Å · c = 6.0151(8) Å
Unit cell volume
1230.6 ų
Z
2
Type-locality form

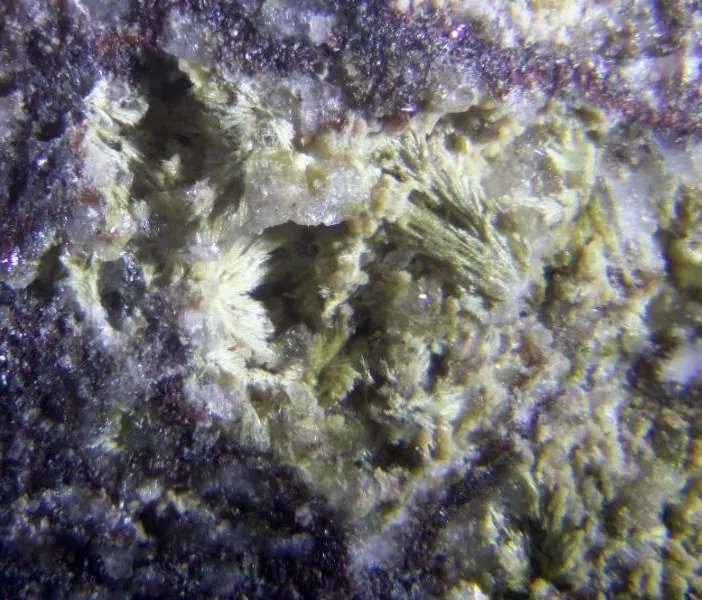

thin prisms and matted fibers (Italy); irregular prisms in subparallel crystal aggregates, generally less than 1 mm across (California, USA)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium4137.327549.308
38.68%
8OOxygenOxygen2515.999399.975
28.16%
26FeIronIron455.845223.380
15.73%
14SiSiliconSilicon628.085168.510
11.87%
17ClChlorineChlorine235.45070.900
4.99%
1HHydrogenHydrogen81.0088.064
0.57%
Total1420.137100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al

Synonyms

  • Cerchiaraiet-(Fe)
  • IMA2012-012

In other languages

German
Cerchiarait-(Fe) · IMA 2012-012
Italian
cerchiaraite-(Fe)

Classification

Strunz
10th ed.

9.CF.25

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CF[Si4O12]8- 4-membered single rings, with insular complex anionsGroup
  • 9.CF.25Cerchiaraite-(Fe)Species

Group, growth & confusion

In the same group
2 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 2012Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2012) New minerals and nomenclature modifications approved in 2012. CNMNC Newsletter No 13. Mineralogical Magazine, 76 (3) 807-817 doi:10.1180/minmag.2012.076.3.26 DOI: 10.1180/minmag.2012.076.3.26
  2. 2013Kampf, A. R., Roberts, A. C., Venance, K. E., Carbone, C., Belmonte, D., Dunning, G. E., Walstrom, R. E. (2013) Cerchiaraite-(Fe) and cerchiaraite-(Al), two new barium cyclosilicate chlorides from Italy and California, USA. Mineralogical Magazine, 77 (1) 69-80 doi:10.1180/minmag.2013.077.1.07 DOI: 10.1180/minmag.2013.077.1.07
  3. 2016(2016) Cerchiaraite-(Fe). Handbook of Mineralogy. Mineralogical Society of America
