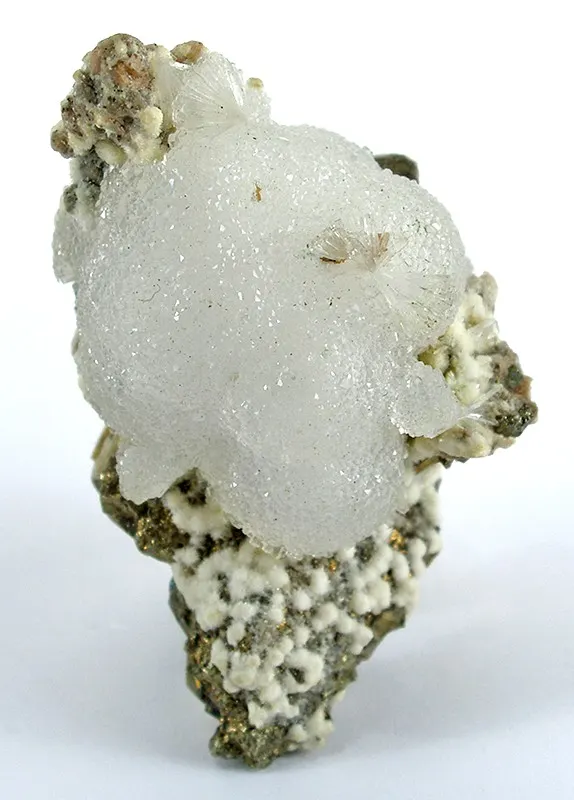

Tobermorite

Ca4Si6O17(H2O)2 · (Ca · 3H2O)
IMA status
  • Approved
IMA symbol
Tbm
Discovered
1880

Where it forms, where it's found

Type locality
Tobermory
  1. Isle of Mull
  2. Argyll and Bute
  3. Scotland
  4. UK

56.6228°, -6.0723°

118recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · light pink
Cleavage
Perfect

Perfect on (001), imperfect on (100).

Density
2.423 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.57 – 1.575
Surface relief
Moderate
Principal indices
nα 1.570 · nβ 1.571 · nγ 1.575
Dispersion
weak r > v
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 11.17 Å · b = 7.38 Å · c = 27.94 Å
Cell angles
β = 90 °
Ratio a:b:c
1 : 0.661 : 2.501
Z
4
Comment

14 ºA hydrate

Crystal structure

Chemical composition

Impurities
  • Al
  • Fe
  • Mg
  • Na
  • K
  • H2O

In other languages

French
Tobermorite
German
Tobermorit
Spanish
Tobermorita
Italian
tobermorite
Portuguese
tobermorita

Classification

Strunz
10th ed.

9.DG.10

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DGInosilicates with 3-periodic single and multiple chainsGroup
  • 9.DG.10TobermoriteSpecies
Dana
8th ed.

72.03.02.01

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.03Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 3-, 4-, or 5-membered rings and 8-membered ringsType
  • 72.03.02Tobermorite group (5- & 8-membered rings)Group
  • 72.03.02.01TobermoriteSpecies
CIM

14.5.23

  • 14Silicates not Containing AluminumClass
  • 14.5Silicates of CaGroup
  • 14.5.23TobermoriteSpecies

Group, growth & confusion

In the same group
1 members
Often grow together
2 minerals
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1880Heddle, (1880) IX. Preliminary Notice of substances which may prove to be New Minerals. Mineralogical Magazine and Journal of the Mineralogical Society, 4 (18) 117-123 doi:10.1180/minmag.1880.004.18.04 DOI: 10.1180/minmag.1880.004.18.04
  2. 1905Currie, James (1905) Note on some new localities for Gyrolite and Tobermorite. Mineralogical Magazine and Journal of the Mineralogical Society, 14 (64) 93-95 doi:10.1180/minmag.1905.014.64.06 DOI: 10.1180/minmag.1905.014.64.06
  3. 1952Claringbull, G. F., Hey, M. H. (1952) A re-examination of tobermorite. Mineralogical Magazine and Journal of the Mineralogical Society, 29 (218) 960-962 doi:10.1180/minmag.1952.029.218.10 DOI: 10.1180/minmag.1952.029.218.10
  4. 1954Fleischer, M. (1954) New mineral names. American Mineralogist, 39 (11-12). 1037-1040
  5. 1954McConnell, J. D. C. (1954) The hydrated calcium silicates riversideite, tobermorite, and plombierite. Mineralogical Magazine and Journal of the Mineralogical Society, 30 (224) 293-305 doi:10.1180/minmag.1954.030.224.02 DOI: 10.1180/minmag.1954.030.224.02
