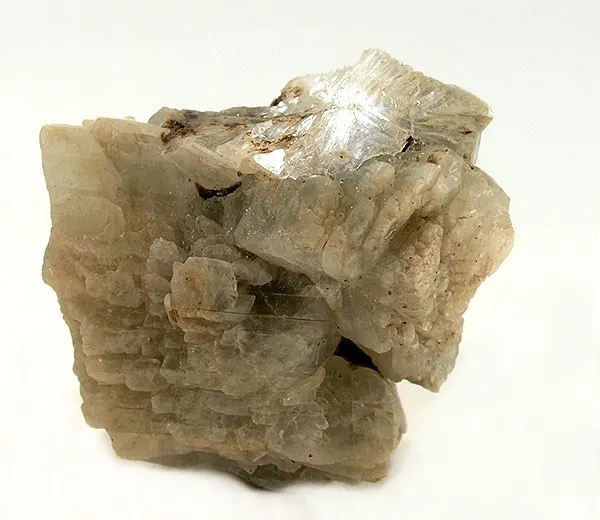

Tunellite

SrB6O9(OH)2 · 3H2O
IMA status
  • Approved
IMA symbol
Tnl
Discovered
1961
Also known as
  • Tunelliet

Where it forms, where it's found

Geological setting

A secondary mineral in a borate deposit.

Secondary mineral in borate deposits

Type locality
Rio Tinto Borax Mine
  1. Kramer Borate deposit
  2. Boron
  3. Kern County
  4. California
  5. USA

35.0444°, -117.6944°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · grayish white
Streak
White
Tenacity
flexible
Cleavage
Perfect

Perfect on (100) Distinct on (001)

Density
2.40 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 68°
Refractive index
1.519 – 1.569
Surface relief
Moderate
Principal indices
nα 1.519 · nβ 1.534 · nγ 1.569
Dispersion
r > v weak
Extinction
Y = b; X ∧ a = 29°; Z ∧ c = –5°.
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#14
Cell parameters
a = 14.415(3) Å · b = 8.213(1) Å · c = 9.951(2) Å
Cell angles
β = 114.05 °
Ratio a:b:c
1 : 0.570 : 0.690
Z
4
Morphology

Crystals to 10 cm elongated on [001]. Flattened tabular with dominant (100). Compact fine grained nodules. Forms include (100), (001), (110), (011), and (111).

Type-locality form

White compact fine-grained nodules. Also as individual long prismatic crystals up to 1.5 cm in length and equant crystals up to 1 cm in diameter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
58.25%
38SrStrontiumStrontium187.62087.620
22.78%
5BBoronBoron610.81064.860
16.87%
1HHydrogenHydrogen81.0088.064
2.10%
Total384.530100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Tunelliet

In other languages

French
Tunellite
German
Tunellit
Italian
Tunellite
Chinese
图硼锶石

Classification

Strunz
10th ed.

6.FC.05

  • 6BoratesClass
  • 6.FHexaboratesDivision
  • 6.FCPhyllo-hexaboratesGroup
  • 6.FC.05TunelliteSpecies
Dana
8th ed.

26.06.06.02

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.06HexaboratesType
  • 26.06.06— unnamed intermediate level —Group
  • 26.06.06.02TunelliteSpecies
CIM

9.3.31

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.31TunelliteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1961Erd, R.C., Morgan, V., Clark, J.R. (1961) Tunellite, a new hydrous strontium borate from the Kramer Borate District, California. U.S. Geological Survey Professional Paper: 424-C: 294-297.
  2. 1962Fleischer, Michael (1962) New Mineral Names. American Mineralogist, 47 (3-4) 414-420
  3. 1963Clark, J. R. (1963) Boron-Oxygen Polyanion in the Crystal Structure of Tunellite. Science, 141 (3586). 1178-1179 doi:10.1126/science.141.3586.1178DOI: 10.1126/science.141.3586.1178
  4. 1964Clark, Joan R. (1964) The crystal structure of tunellite, SrB6O9(OH)2·3H2O. American Mineralogist, 49 (11-12) 1549-1568
  5. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
