Tvedalite

Ca4Be3Si6O17(OH)4 · 3H2O
IMA status
  • Approved
IMA symbol
Tve
Discovered
1992
Also known as
  • IMA1990-027
  • Tvedaliet

Where it forms, where it's found

Geological setting

In heavily zeolitized and hydrothermally parts of irregular nepheline syenite pegmatites.

Type locality
Vevja Quarry
  1. Tvedalen
  2. Larvik Commune
  3. Vestfold
  4. Norway

59.0453°, 9.8617°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Creamy-white · light beige
Streak
White
Cleavage
Perfect

(010)

Density
2.541 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.604
Surface relief
Moderate
Principal indices
nβ 1.604
Dispersion
r > v
UV response
non-fluorescent

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.72 Å · b = 23.14 Å · c = 4.92 Å
Ratio a:b:c
1 : 2.654 : 0.564

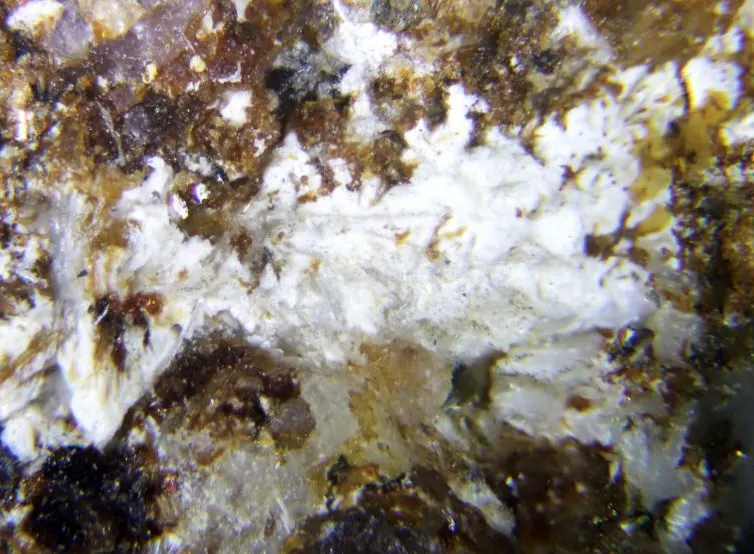

Type-locality form

Spherulites up to 3 mm in diameter composed of densely packed, radially oriented platelets (a few μm in length). The spherulites are overgrown by a crust of chiavennite.

Comment

C-centered lattice, space group unknown

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
51.20%
14SiSiliconSilicon628.085168.510
22.47%
20CaCalciumCalcium440.078160.312
21.38%
4BeBerylliumBeryllium39.01227.036
3.61%
1HHydrogenHydrogen101.00810.080
1.34%
Total749.914100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe

Synonyms

  • IMA1990-027
  • Tvedaliet

In other languages

German
IMA 1990-027 · Tvedalit
Italian
Tvedalite

Classification

Strunz
10th ed.

9.DF.20

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DFInosilicates with 2-periodic multiple chainsGroup
  • 9.DF.20TvedaliteSpecies
Dana
8th ed.

70.05.02.01

  • 70Inosilicates Column or Tube StructuresClass
  • 70.05Column or Tube Structures with chains linked by BeType
  • 70.05.02— unnamed intermediate level —Group
  • 70.05.02.01TvedaliteSpecies
CIM

14.3.19

  • 14Silicates not Containing AluminumClass
  • 14.3Silicates of BeGroup
  • 14.3.19TvedaliteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1992Larsen, Alf Olav, Åsheim, Arne, Raade, Gunnar, Taftø, Johan (1992) Tvedalite, (Ca,Mn)4Be3Si6O17(OH)4·3H2O, a new mineral from syenite pegmatite in the Oslo Region, Norway. American Mineralogist, 77 (3-4) 438-443
  2. 1996Raade, Gunnar (1996) Minerals originally described from Norway. Including notes on type material. Norsk Bergverksmuseum Skrift Vol. 11
  3. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  4. 2001(2001) Tvedalite. Handbook of Mineralogy. Mineralogical Society of America
