Vauquelinite

CuPb2(CrO4)(PO4)(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Vql
Discovered
1818
Also known as
  • Chromate of Lead and Copper
  • Chromphosphorkupferbleispath
  • Hemiprismatischer Olivenmalachit
  • +7 more

Where it forms, where it's found

Geological setting

Oxidation zone of some hydrothermal deposits.

Type locality
Tsvetnoi Mine
  1. Uspenskaya Hill
  2. Berezovsk deposit
  3. Beryozovsky
  4. Sverdlovsk Oblast
  5. Russia
65recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine-Resinous
Transparency
Transparent · Translucent
Colour
Olive-green · apple-green · brown to nearly black
Streak
Greenish or brownish
Tenacity
brittle
Fracture
Irregular/Uneven
Density
6.16 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
2.11 – 2.22
Surface relief
Very high
Principal indices
nα 2.11 · nβ 2.22 · nγ 2.22
Pleochroism
Visible

X = Light green Y = Light brown Z = Light brown

Dispersion
strong
Notes

2V = near zero.

Michel-Lévy diagramhighlighted lineδ = 0.1100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1100 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1100 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 13.754(5) Å · b = 5.806(6) Å · c = 9.563(3) Å
Cell angles
β = 94.55 °
Ratio a:b:c
1 : 0.422 : 0.695
Z
4
Morphology

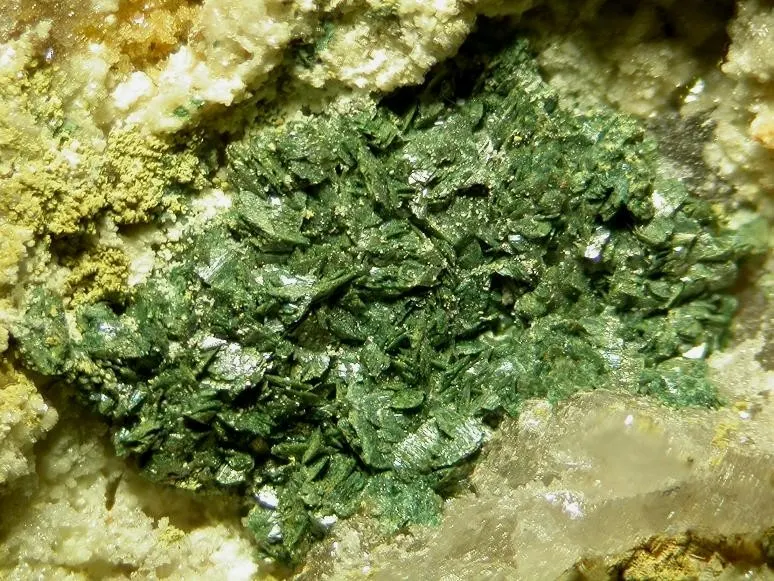

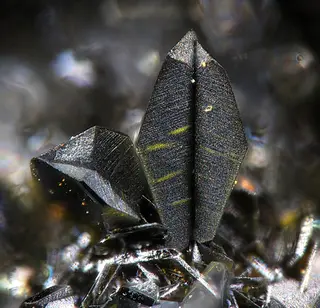

Crystals commonly minute and frequently wedge-shaped; irregularly aggregated; and mammillary fibrous forms; reniform; botryoidal; granular, compact.

Twinning

On (102).

Comment

Space Group: P21/n.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
58.70%
8OOxygenOxygen915.999143.991
20.40%
29CuCopperCopper163.54663.546
9.00%
24CrChromiumChromium151.99651.996
7.37%
15PPhosphorusPhosphorus130.97430.974
4.39%
1HHydrogenHydrogen11.0081.008
0.14%
Total705.915100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chromate of Lead and Copper
  • Chromphosphorkupferbleispath
  • Hemiprismatischer Olivenmalachit
  • Laxmannit
  • Laxmannita
  • Laxmannite
  • Melnochlor-Malachit
  • Phosphorchromit
  • Plomb chromé
  • Vauqueline

In other languages

German
Vauquelinit
Spanish
Vauquelinita
Italian
Vauquelinite
Chinese
磷铬铜铅矿

Classification

Strunz
10th ed.

7.FC.05

  • 7SulfatesClass
  • 7.FChromatesDivision
  • 7.FCWith PO4, AsO4, SiO4Group
  • 7.FC.05VauqueliniteSpecies
Dana
8th ed.

43.04.03.01

  • 43Compound Phosphates, Etc.Class
  • 43.04Anhydrous Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.04.03Vauquelinite GroupGroup
  • 43.04.03.01VauqueliniteSpecies
CIM

22.5.1

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.1VauqueliniteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1818Berzelius, J. (1818) Afhandlingar I Fysik, Kemi och Mineralogi, Stockholm: 6: 246 (as Vauqueline).
  2. 1819Berzelius, J. J. (1819) Nouveau Système de minéralogie. Méquignon-Marvis.
  3. 1822Haüy, René Just (1822) Traité de Minéralogie (2nd ed.) Vol. 3. Bachelier, Paris.
  4. 1827Haidinger, W. (1827) Account of a French locality of vauquelinite. Edinburgh Journal of Science: 7: 213-214.
  5. 1837Phillips, Wm., augmented by Allan, R. (1837) Mineralogy, Fourth edition London: 369 (as Chromate of Lead and Copper).
