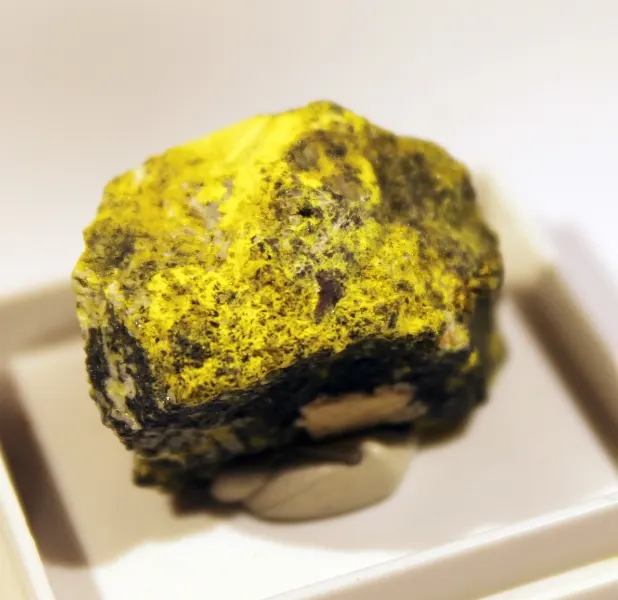

Yttrotungstite-(Ce)

CeW2O6(OH)3
IMA status
  • Approved
IMA symbol
Ytgs-Ce
Also known as
  • Cerotungstite
  • Cerotungstite-(Ce)
  • Thorotungstite
  • +1 more

Where it forms, where it's found

Type locality
Kramat Pulai Mine
  1. Kinta District
  2. Perak
  3. Malaysia

4.5500°, 101.1667°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Orange-yellow
Cleavage
Perfect

On (100), perfect.

Density
6.23 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.89 – 2.02
Surface relief
Very high
Principal indices
nα 1.89 · nβ 1.95 · nγ 2.02
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.1300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1300 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1300 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#9
Cell parameters
a = 5.874 Å · b = 8.7 Å · c = 7.07 Å
Cell angles
β = 105.45 °
Ratio a:b:c
1 : 1.481 : 1.204
Z
2
Morphology

Crystals bladed, with forms (001), (101), (100), (011), and (110); as parallel platy and radiating groups.

Twinning

On (001).

Type-locality form

radiated groups of orange yellow bladed crystals.

Comment

Class either 2 or 2m; Space Group either P21 or P21/m.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
74WTungstenTungsten2183.840367.680
56.15%
8OOxygenOxygen915.999143.991
21.99%
58CeCeriumCerium1140.116140.116
21.40%
1HHydrogenHydrogen31.0083.024
0.46%
Total654.811100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Cerotungstite
  • Cerotungstite-(Ce)
  • Thorotungstite
  • Yttrotungstiet-(Ce)

In other languages

German
1987 s.p. · Cerotungstit-(Ce) · IMA 1970-008 · Yttrotungstit-(Ce)
Italian
Cerotungstite-(Ce) · Yttrotungstite- · Yttrotungstite-(Ce)

Classification

Strunz
10th ed.

4.FD.20

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FDHydroxides with OH, without H2O; chains of edge-sharing octahedraGroup
  • 4.FD.20Yttrotungstite-(Ce)Species
Dana
8th ed.

49.03.03.01

  • 49Hydrated Molybdates and TungstatesClass
  • 49.03Hydrated Molybdates and Tungstates Containing Hydroxyl or HalogenType
  • 49.03.03Yttrotungstite GroupGroup
  • 49.03.03.01Yttrotungstite-(Ce)Species
CIM

27.4.7

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.4TungstatesGroup
  • 27.4.7Yttrotungstite-(Ce)Species

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1927Scrivenor, J.B.; Shenton, J.C. (1927) Thorotungstite. A mineral containing tungsten and thorium from the Federated Malay States. American Journal of Science, S5-13 (78). doi:10.2475/​ajs.s5-13.78.487DOI: ​doi.org/​10.2475/​ajs.s5-13.78.487
  2. 1950Beard, E. H. (1950) Thorotungstite - A Misnomer. Colonial Geology and Mineral Resources, 1 (1) 50-51
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1970Sahama, Th.G., v. Knorring, O., Lehtinen, M. (1970) Cerotungstite, a cerian analogue to yttrotungstite, from Uganda. Bulletin of the Geological Society of Finland, 42. 223-228 doi:10.17741/bgsf/42.018DOI: 10.17741/bgsf/42.018
  5. 1972(1972) American Mineralogist 57, 1558–1559 (abstract).
