Yttrotungstite-(Y)

Y(W,Fe,Si,Al,Ti)2(O,OH,H2O)9
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ytgs-Y
Also known as
  • Yttrotungstiet-(Y)
  • Yttrotungstite

Where it forms, where it's found

Type locality
Kramat Pulai Mine
  1. Kinta District
  2. Perak
  3. Malaysia

4.5500°, 101.1667°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Orange-yellow
Cleavage
Distinct/Good

(010), good; on (101), probable, very poor.

Density
5.96 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 68° · 2V calc = 64°
Refractive index
1.89 – 2.02
Surface relief
Very high
Principal indices
nα 1.89 · nβ 1.98 · nγ 2.02
Pleochroism
Visible

X = pale yellow; Y = Z = dark yellow

Dispersion
r > v strong
Notes

Z = b; X ∧ c = 26◦

Michel-Lévy diagramhighlighted lineδ = 0.1300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1300 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1300 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 6.954(6) Å · b = 6.954(9) Å · c = 5.771(6) Å
Cell angles
β = 104.93(4) °
Ratio a:b:c
1 : 1.000 : 0.830
Z
2
Morphology

Elongated along [001], flattened, and always twinned to pseudo-orthorhombic symmetry. Frequently bevelled by (110) and very rarely terminated by (101).

Twinning

On (100), probably universal, as contact twins.

Type-locality form

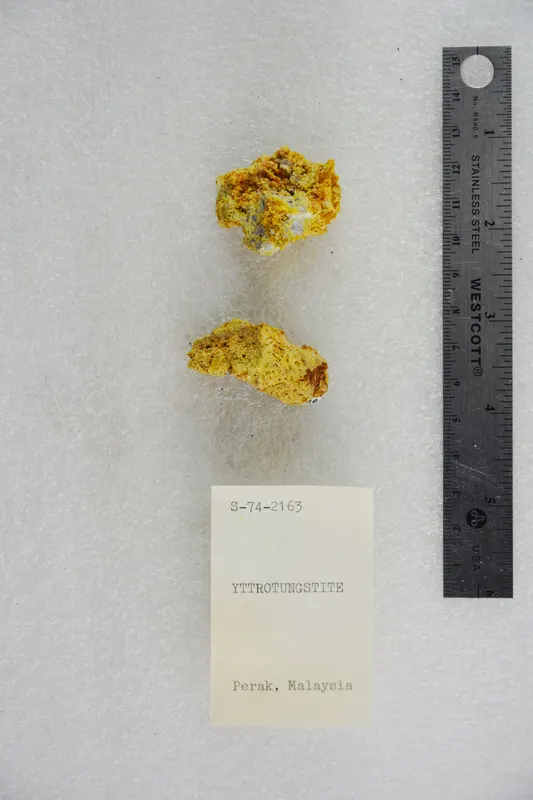

Yellow earthy material and as monoclinic lath-like crystals.

Comment

pseudo-orthorhombic

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2715.999431.973
35.02%
74WTungstenTungsten2183.840367.680
29.81%
26FeIronIron255.845111.690
9.06%
22TiTitaniumTitanium247.86795.734
7.76%
39YYttriumYttrium188.90688.906
7.21%
14SiSiliconSilicon228.08556.170
4.55%
13AlAluminiumAluminium226.98253.964
4.38%
1HHydrogenHydrogen271.00827.216
2.21%
Total1233.333100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Yttrotungstiet-(Y)
  • Yttrotungstite

In other languages

German
Yttrotungstit-(Y)
Italian
Yttrotungstite- · Yttrotungstite-(Y)

Classification

Strunz
10th ed.

4.FD.20

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FDHydroxides with OH, without H2O; chains of edge-sharing octahedraGroup
  • 4.FD.20Yttrotungstite-(Y)Species
Dana
8th ed.

49.03.03.02

  • 49Hydrated Molybdates and TungstatesClass
  • 49.03Hydrated Molybdates and Tungstates Containing Hydroxyl or HalogenType
  • 49.03.03Yttrotungstite GroupGroup
  • 49.03.03.02Yttrotungstite-(Y)Species
CIM

27.4.6

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.4TungstatesGroup
  • 27.4.6Yttrotungstite-(Y)Species

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1927Scrivenor, J.B.; Shenton, J.C. (1927) Thorotungstite. A mineral containing tungsten and thorium from the Federated Malay States. American Journal of Science, S5-13 (78). doi:10.2475/​ajs.s5-13.78.487DOI: ​doi.org/​10.2475/​ajs.s5-13.78.487
  2. 1950Beard, E. H. (1950) Thorotungstite - A Misnomer. Colonial Geology and Mineral Resources, 1 (1) 50-51
  3. 1951Fleischer, M. (1951) New mineral names. American Mineralogist, 36 (7-8). 638-642
  4. 1970Sahama, Th.G., v. Knorring, O., Lehtinen, M. (1970) Cerotungstite, a cerian analogue to yttrotungstite, from Uganda. Bulletin of the Geological Society of Finland, 42. 223-228 doi:10.17741/bgsf/42.018DOI: 10.17741/bgsf/42.018
  5. 1971Davis, R. J., Smith, G. W. (1971) Yttrotungstite. Mineralogical Magazine, 38 (295) 261-285 doi:10.1180/minmag.1971.038.295.01 DOI: 10.1180/minmag.1971.038.295.01
