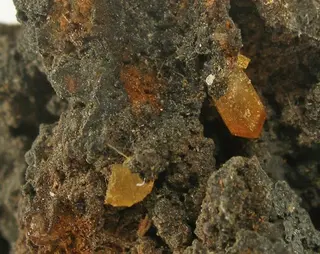

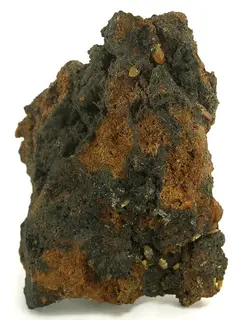

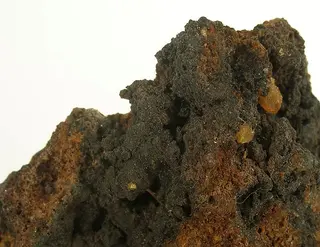

Raspite

Pb(WO4)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Rsp
Discovered
1897

Where it forms, where it's found

Geological setting

Secondary oxidation zone of tungsten containing ores.

Type locality
Broken Hill Proprietary Mine
  1. Broken Hill
  2. Broken Hill district
  3. Yancowinna Co.
  4. New South Wales
  5. Australia

-31.9665°, 141.4643°

25recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine
Transparency
Transparent
Colour
Pale yellow · yellowish brown · gray · colorless
Cleavage
Perfect

Perfect (100)

Density
8.46 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
2.27 – 2.3
Surface relief
Very high
Principal indices
nα 2.27 · nβ 2.27 · nγ 2.3
Dispersion
relatively strong
Extinction
Y = b; Z ∧ c ≃ 30°.
Notes

Reflectivity 15.9-16.5% @ 546 nm in air.

Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 13.555(11) Å · b = 4.976(2) Å · c = 5.561(3) Å
Cell angles
β = 107.63(7) °
Ratio a:b:c
1 : 0.367 : 0.410
Z
4
Morphology

Crystals typically tabular, flattened on (100), which is striated parallel [010], and somewhat elongated parallel [010]; also elongated [100] or thin tabular (101).

Twinning

Common on (100); also on (102).

Comment

Cell data from Fujita et al. (1977).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
45.54%
74WTungstenTungsten1183.840183.840
40.40%
8OOxygenOxygen415.99963.996
14.06%
Total455.036100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

In other languages

French
raspite
German
Raspit
Spanish
Raspita
Italian
ICSD 811 · PDF 16-156 · Raspite

Classification

Strunz
10th ed.

4.DG.20

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DGWith large (+- medium-sized) cations; chains of edge-sharing octahedraGroup
  • 4.DG.20RaspiteSpecies
Dana
8th ed.

48.01.04.01

  • 48Anhydrous Molybdates and TungstatesClass
  • 48.01AXO4Type
  • 48.01.04— unnamed intermediate level —Group
  • 48.01.04.01RaspiteSpecies
CIM

27.4.9

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.4TungstatesGroup
  • 27.4.9RaspiteSpecies

Group, growth & confusion

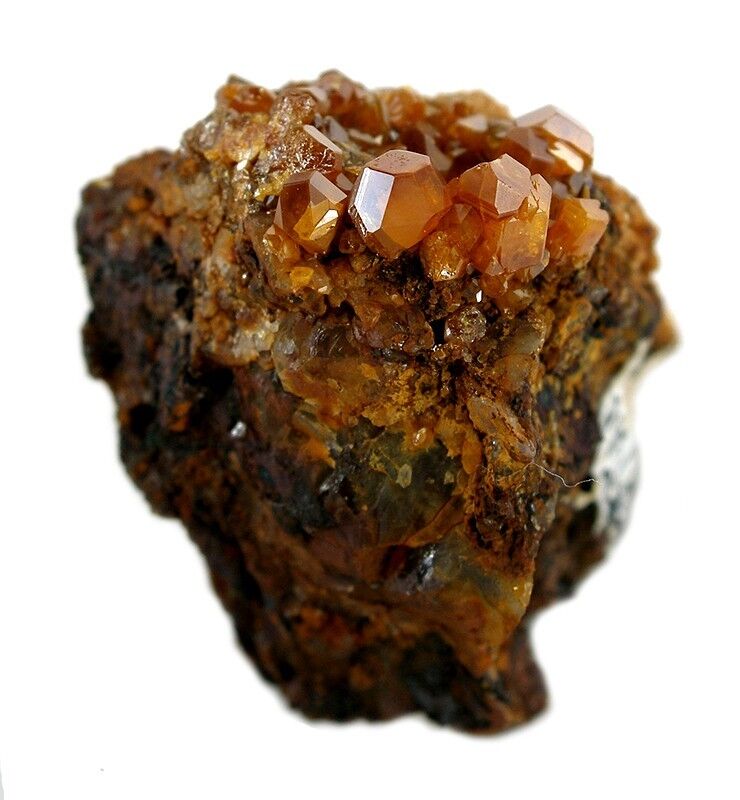

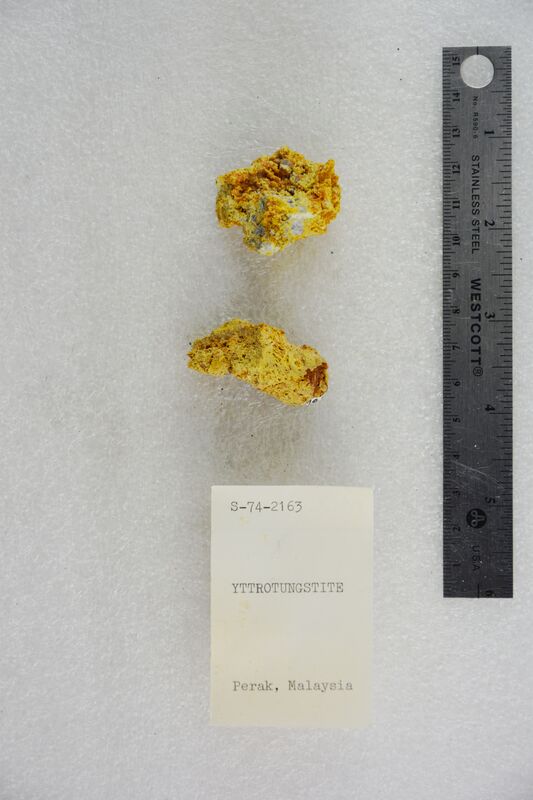

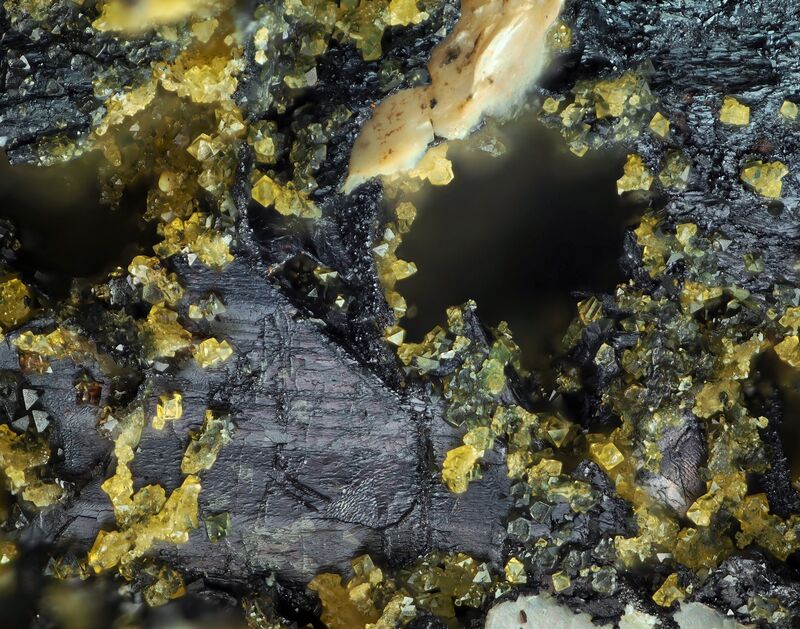

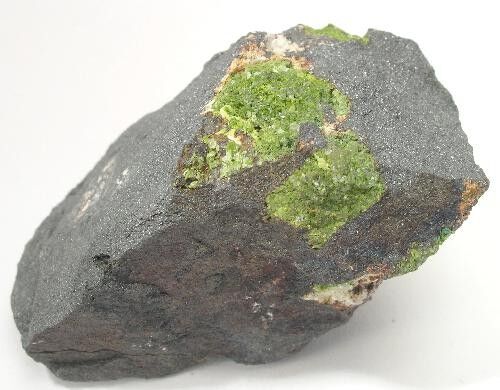

Often grow together
4 minerals
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. Sainisch-Plimer, M. (1997), To hide behind a silver mask: Charles Rasp. Australian Journal of Mineralogy, 3 (1), 5-9.
  2. Sainisch-Plimer, M. (1999) The discoverer: the life and times of Charles Rasp. In: Birch, W.D, (Editors Minerals of Broken Hill. Broken Hill City Council in conjunction with Museum Victoria, Melbourne, Victoria, Australia, 14-33.
  3. 1897Hlawatsch, C. (1897): Ueber den Stolzit und ein neues Mineral »Raspit von Brokenhill. Annalen des kaiserlich-königlichen naturhistorischen Hofmuseums 12, 33-41. [http://www.landesmuseum.at/pdf_frei_remote/ANNA_12_0033-0041.pdf]
  4. 1898Hlawatsch, C. (1898) Ueber Stolzit und Raspit von Brokenhill. Zeitschrift für Krystallographie und Mineralogie, 29, 130-139.
  5. 1899Hlawatsch, C. (1899) I. Krumme Flächen und Aetzerscheinungen am Stolzit. Element p0 des Raspit, Zeitschrift für Kristallographie, Mineralogie und Petrographie, Leipzig: 31(1-6): 1-10 (8).
