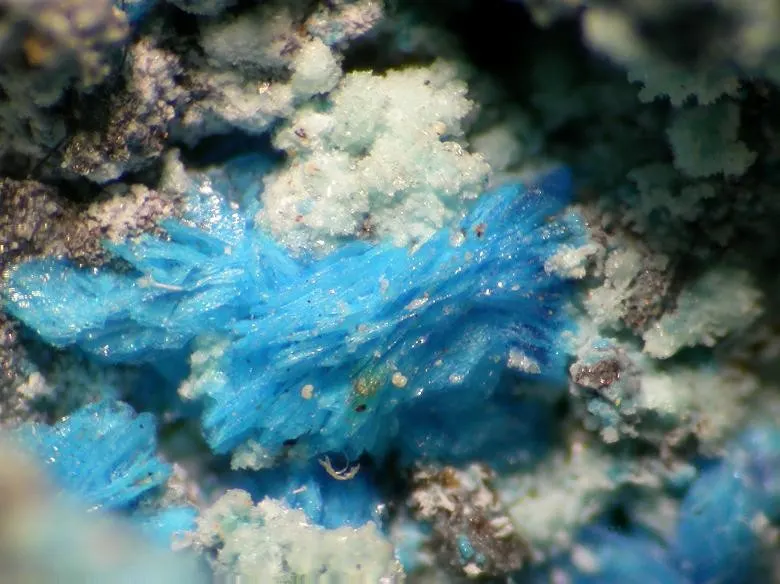

Yvonite

Cu(AsO3OH) · 2H2O
IMA status
  • Approved
IMA symbol
Yv
IMA approved
1995
Also known as
  • IMA1995-012
  • Yvoniet

Where it forms, where it's found

Geological setting

Secondary mineral from mine dumps.

Type locality
Salsigne mine
  1. Salsigne
  2. Carcassonne
  3. Aude
  4. Occitanie
  5. France

43.3367°, 2.3542°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Turquoise-blue
Streak
blue
Tenacity
brittle
Cleavage
Perfect

On (100), perfect; on (010), poor.

Fracture
Irregular/Uneven
Density
3.20 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 82° · 2V calc = 84°
Refractive index
1.615 – 1.7
Surface relief
High
Principal indices
nα 1.615 · nβ 1.660 · nγ 1.700
Pleochroism
Weak

X = light blue to colorless; Y = light blue; Z = blue.

Dispersion
r > v medium
Extinction
On (010): X ∧ c = 42°; Z ⊥ (010). On (100): Z' ∧ [001] = 0-2.5°; X' ∧ c = 3-5.5°.
UV response
Not fluorescent (LW or SW).
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0850
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]850 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation850 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.632(3) Å · b = 11.168(3) Å · c = 6.020(3) Å
Cell angles
α = 89.32(3) ° · β = 86.55(5) ° · γ = 74.43(3) °
Ratio a:b:c
1 : 1.463 : 0.789
Z
4
Morphology

Elongated along [001], flattened on (010), with prominent (100) and (010). Small crystals also exhibit minor {hkl} and (001) forms.

Twinning

Multiple laminae, with composition plane (010), twin axis ⊥ (010).

Type-locality form

Aggregates or radiated spherule to 1 mm. Individual crystals of maximum size 0.3 x 0.15 x 0.06 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
40.08%
33AsArsenicArsenic174.92274.922
31.28%
29CuCopperCopper163.54663.546
26.53%
1HHydrogenHydrogen51.0085.040
2.11%
Total239.502100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1995-012
  • Yvoniet

In other languages

German
IMA 1995-012 · Yvonit
Spanish
Yvonita
Italian
Yvonite

Classification

Strunz
10th ed.

8.CB.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CBWith only medium-sized cations, RO4:H2O = 1:1Group
  • 8.CB.25YvoniteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1998Mandarino, Joseph A. (1998) Abstracts of New Mineral Descriptions. The Mineralogical Record, 29 (5) 467-479
  2. 1998Sarp, Halil; Černý, Radovan (1998) Description and crystal structure of yvonite, Cu(AsO3OH)2H2O. American Mineralogist, 83 (3). 383-389 doi:10.2138/am-1998-3-423 DOI: 10.2138/am-1998-3-423
  3. 2005(2005) Yvonite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2020Kornyakov, I. V.; Krivovichev, S. V. (2020) Hydrogen bonding and structural complexity of cornetite, cornubite, rollandite, and yvonite: a theoretical study. Zapiski RMO (Proceedings of the Russian Mineralogical Society), 149 (2). 80-95 doi:10.31857/s0869605520020033DOI: 10.31857/s0869605520020033
