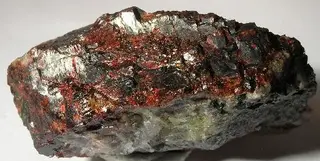

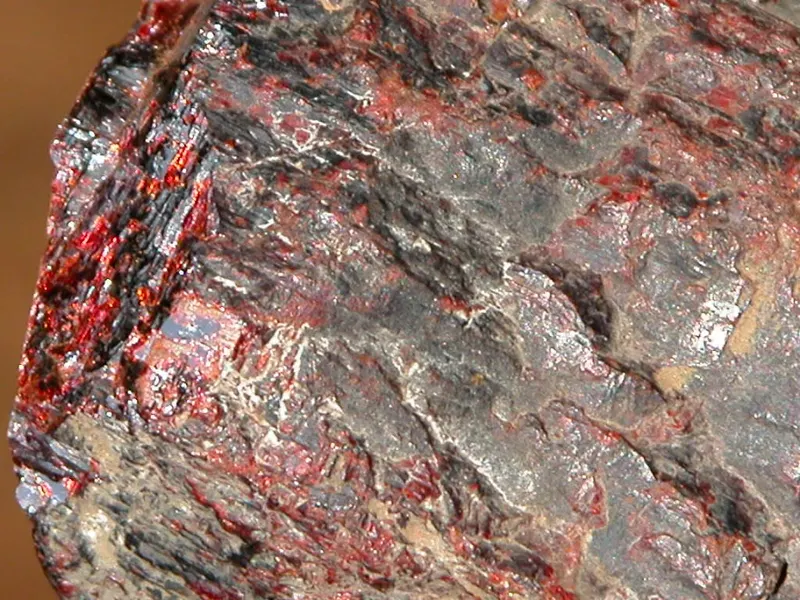

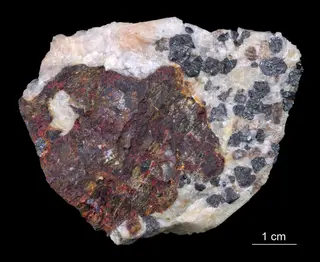

Zincite

ZnO
IMA status
  • Approved
  • Grandfathered
IMA symbol
Znc
Discovered
1810
Also known as
  • Ancramit
  • Ancramite
  • Apartalite
  • +18 more

Where it forms, where it's found

Geological setting

Metamorphic Precambrian zinc-manganese-iron oxide-silicate ore bodies in crystalline Franklin marble.

Type locality
Sterling Mine
  1. Sterling Hill
  2. Ogdensburg
  3. Sussex County
  4. New Jersey
  5. USA

41.0836°, -74.6047°

124recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Sub-adamantine
Transparency
Transparent · Translucent · Opaque
Colour
Red · orange · yellow · white · rarely green
Streak
Orange-yellow
Tenacity
brittle
Cleavage
Perfect

(1010) perfect, but difficult.

Fracture
Conchoidal
Density
5.64 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
2.013 – 2.048
Surface relief
Very high
Principal indices
nω 2.013 – 2.032 · nε 2.029 – 2.048
Birefringence
0.016
Optical colour
Light rose-brown
Anisotropism
Weak
Tropism
Anisotropic
UV response
Yellow-green (SW UV) (light yellow material from Sterling Mine only).
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
P63mc
Cell parameters
a = 3.24 Å · c = 5.20 Å
Z
2
Morphology

Crystals extremely rare. Hemimorphic pyramidal with a large negative pedion (0001). Often rounded and corroded. Usually massive, foliated; also compact granular, and in rounded irregular masses.

Twinning

On (0001), composition plane always (0001).

Parting
On (0001) distinct at times.
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc165.38065.380
80.34%
8OOxygenOxygen115.99915.999
19.66%
Total81.379100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mn
  • Fe

Synonyms

  • Ancramit
  • Ancramite
  • Apartalite
  • Brucite (of Dufrénoy)
  • Red Oxide of Zinc
  • Red zinc ore
  • Red zinc oxide
  • Red Zink Ore
  • Rothzinkerz
  • Rotzinkerz
  • Ruby Zinc (of Alger)
  • Spartalit
  • Spartalite
  • Spartalith
  • Sterlingite (of Alger)
  • Zinc oxydé
  • Zinciet
  • Zincit
  • Zinkite
  • Zinkoxid
  • Zinkoxyd

In other languages

French
Zincite
German
Zinkit
Spanish
cincita
Italian
Zincite
Japanese
紅亜鉛鉱
Chinese
红锌矿
Russian
Цинкит
Arabic
زنكيت

Classification

Strunz
10th ed.

4.AB.20

  • 4OxidesClass
  • 4.AMetal: Oxygen = 2:1 and 1:1Division
  • 4.ABM:O = 1:1 (and up to 1:1.25); with small to medium-sized cations onlyGroup
  • 4.AB.20ZinciteSpecies
Dana
8th ed.

04.02.02.01

  • 04Simple OxidesClass
  • 04.02AXType
  • 04.02.02— unnamed intermediate level —Group
  • 04.02.02.01ZinciteSpecies
CIM

7.5.1

  • 7Oxides and HydroxidesClass
  • 7.5Oxides of Zn, Cd and HgGroup
  • 7.5.1ZinciteSpecies

Group, growth & confusion

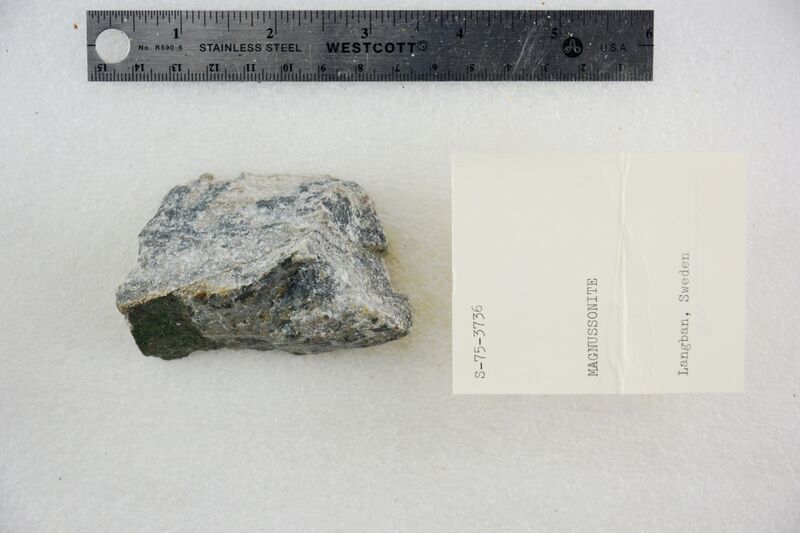

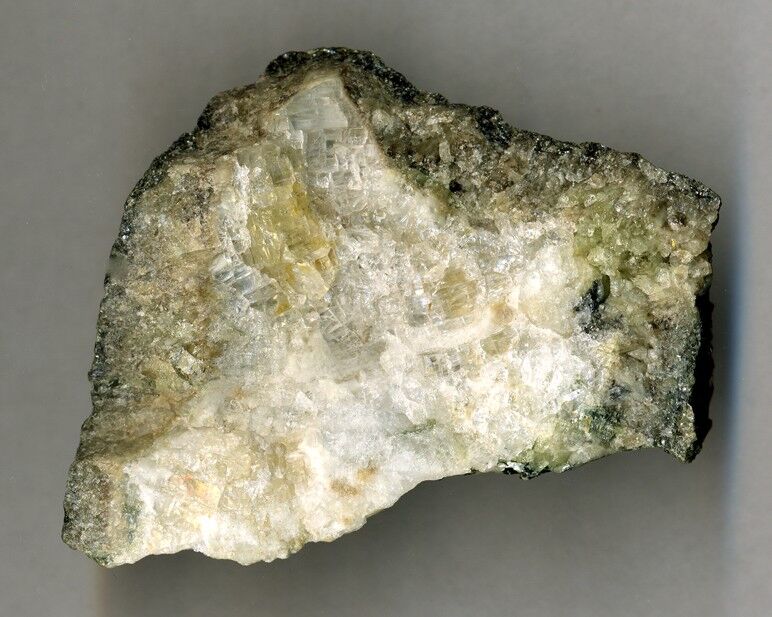

Often grow together
8 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1810Bruce (1810) American Min. Journal: 1(2): 96 (as Red Oxide of Zinc).
  2. 1844Alger (1844) 565 (as Sterlingite).
  3. 1845Haidinger, Wilhelm (1845) Handbuch der bestimmenden Mineralogie, enthaltend die Terminologie, Systematik, Nomenklatur und Charakteristik der Naturgeschichte des Mineralreiches (1st ed.) Braumüller & Seidel, Vienna.
  4. 1852Brooke, Henry J., Phillips, William (1852) An Elementary Introduction to Mineralogy (6th ed.)
  5. 1861Alger (1861) Boston Society of Natural History, Proceedings: 6: 145 (as Ruby Zinc).
