Zinconigerite-2N1S

ZnSn2Al12O22(OH)2
IMA status
  • Approved
IMA symbol
Zng-2N1S
IMA approved
2018
Also known as
  • IMA2018-037
  • Zinconigeriet-2N1S

Where it forms, where it's found

Geological setting

Skarn.

Type locality
Xianghualing Mine
  1. Xianghualing Sn-polymetallic ore field
  2. Linwu Co.
  3. Chenzhou
  4. Hunan
  5. China

25.4586°, 112.5672°

6recorded occurrences
Source · OpenStreetMap

Physical

Density
4.456 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.83 – 1.84
Surface relief
Very high
Principal indices
nω 1.83 · nε 1.84
UV response
no
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#97
Cell parameters
a = 5.714(1) Å · c = 13.821(3) Å

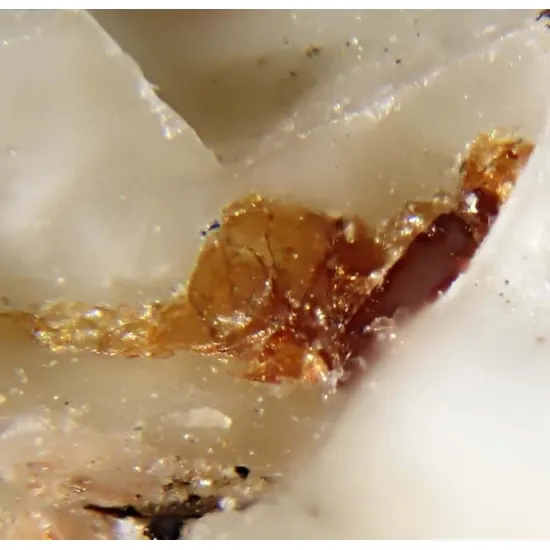

Type-locality form

Aggregates of sub-to-euhedral crystals, up to 100 μm, within fluorite aggregates.

Comment

From Type description

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
37.92%
13AlAluminiumAluminium1226.982323.784
31.97%
50SnTinTin2118.710237.420
23.45%
30ZnZincZinc165.38065.380
6.46%
1HHydrogenHydrogen21.0082.016
0.20%
Total1012.576100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2018-037
  • Zinconigeriet-2N1S

In other languages

German
IMA 2018-037 · Zinconigerit-2N1S

Classification

Strunz
10th ed.

4.FC.20

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FCHydroxides with OH, without H2O; corner-sharing octahedraGroup
  • 4.FC.20Zinconigerite-2N1SSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1997Neiva & Champness (1997)
  2. 2002Armbruster, Thomas (2002) Revised nomenclature of högbomite, nigerite, and taaffeite minerals. European Journal of Mineralogy, 14 (2) 389-395 doi:10.1127/0935-1221/2002/0014-0389DOI: 10.1127/0935-1221/2002/0014-0389
  3. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) CNMNC Newsletter No. 44, New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (4) 1015-1021 doi:10.1180/mgm.2018.148DOI: 10.1180/mgm.2018.148
  4. 2022Rao, Can, Gu, Xiangping, Wang, Rucheng, Xia, Qunke, Dong, Chuanwan, Hatert, Frédéric, Bo, Fabrice Dal, Yu, Xuege, Wang, Wumengyu (2022) Zinconigerite-2N1S ZnSn2Al12O22(OH)2 and zinconigerite-6N6S Zn3Sn2Al16O30(OH)2, two new minerals of the nolanite-spinel polysomatic series from the Xianghualing skarn, Hunan Province, China. American Mineralogist, 107 (10) 1952-1959 doi:10.2138/am-2022-7983DOI: 10.2138/am-2022-7983
