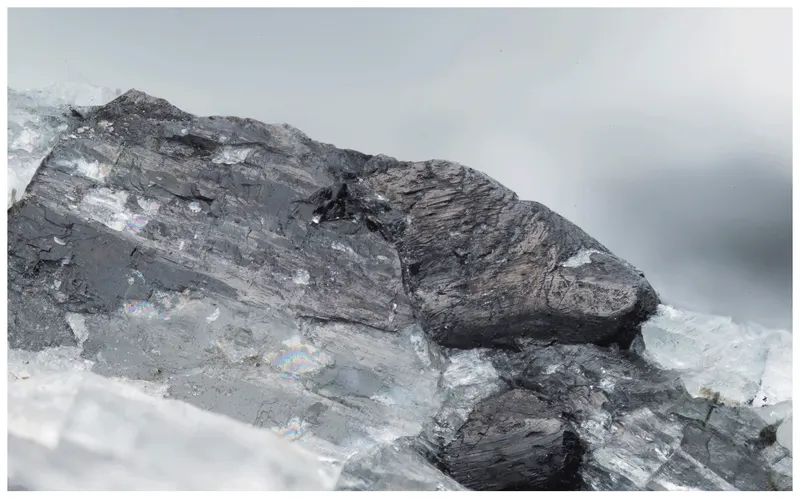

Zinkgruvanite

Ba4Mn2+4Fe3+2(Si2O7)2(SO4)2O2(OH)2
IMA status
  • Approved
IMA symbol
Zgv
Also known as
  • Zinkgruvaniet

Where it forms, where it's found

Geological setting

Ba-rich samples (a drill core) of a sphalerite-, galena- and diopside-rich metatuffite

Type locality
Zinkgruvan mine
  1. Zinkgruvan
  2. Askersund
  3. Örebro County
  4. Sweden

58.8130°, 15.1071°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
almost black · reddish-black in thin fragments
Streak
dark brown
Tenacity
brittle
Cleavage

observed: (001)

Fracture
Irregular/Uneven

Optical

Optical type
Biaxial (+) · 2V measured = >70°
Pleochroism
Strong

deep brown (E ⊥ {001} cleavage) to pale olive-brown

Dispersion
strong, r > v
Bireflectance
Very weak
Tropism
Anisotropic
Reflectance R%
(8.74,8.53) 400, (8.46,8.25) 420, (8.41,8.20) 440, (8.25,8.03) 460, (8.21,8.07) 470, (8.12,7.96) 480, (8.05,7.86) 500, (7.97,7.82) 520, (7.92,7.78) 546, (7.98,7.79) 546, (7.97,7.77) 560, (7.87,7.67) 580, (7.87,7.68) 589, (7.86,7.69) 600, (7.74,7.67) 620, (7.81,7.68) 640, (7.80,7.65) 650, (7.74,7.65) 660, (7.76,7.64) 680, (7.79,7.65) 700
Reflected-light panel
8.0 %anisotropic · dual curve
Specimen sRGB 107, 73, 39
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
Very weak

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.3982(1) Å · b = 7.0237(1) Å · c = 14.8108(4) Å
Cell angles
α = 98.256(2) ° · β = 93.379(2) ° · γ = 89.985(2) °
Ratio a:b:c
1 : 1.301 : 2.744
Type-locality form

subhedral to euhedral, flattened, elongated crystals, up to 4 mm in size

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium4137.327549.308
37.23%
8OOxygenOxygen2615.999415.974
28.20%
25MnManganeseManganese454.938219.752
14.90%
14SiSiliconSilicon428.085112.340
7.61%
26FeIronIron255.845111.690
7.57%
16SSulfurSulfur232.06064.120
4.35%
1HHydrogenHydrogen21.0082.016
0.14%
Total1475.200100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Zinkgruvaniet

In other languages

German
IMA 2020-031 · Zinkgruvanit

Classification

Strunz
10th ed.

9.BE

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BEZinkgruvaniteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 56. European Journal of Mineralogy, 32 (4) 443-448 doi:10.5194/ejm-32-443-2020 DOI: 10.5194/ejm-32-443-2020
  2. 2021Cámara, Fernando, Holtstam, Dan, Jansson, Nils, Jonsson, Erik, Karlsson, Andreas, Langhof, Jörgen, Majka, Jaroslaw, Zetterqvist, Anders (2021) Zinkgruvanite, Ba4Mn2+4Fe3+2(Si2O7)2(SO4)2O2(OH)2, a new ericssonite-group mineral from the Zinkgruvan Zn-Pb-Ag-Cu deposit, Askersund, Örebro County, Sweden. European Journal of Mineralogy, 33 (6) 659-673 doi:10.5194/ejm-33-659-2021 DOI: 10.5194/ejm-33-659-2021
  3. 2022(2022) Zinkgruvanite. Handbook of Mineralogy. Mineralogical Society of America
