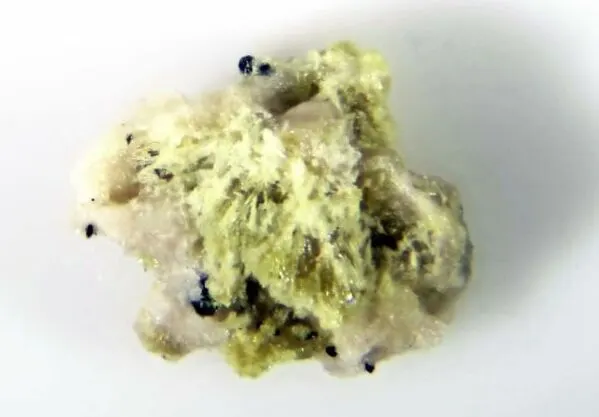

Zodacite

Ca4Mn2+Fe3+4(PO4)6(OH)4 · 12H2O
IMA status
  • Approved
IMA symbol
Zod
IMA approved
1987
Also known as
  • IMA1987-014
  • Zodaciet

Where it forms, where it's found

Geological setting

Complex granite pegmatite.

Type locality
Cubos-Mesquitela-Mangualde area
  1. Mangualde (Mesquitela e Cunha Alta)
  2. Mangualde
  3. Viseu
  4. Portugal

40.5875°, -7.7647°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Yellow · light yellow · tiny crystals may appear colorless
Streak
Light yellow to white
Cleavage
Imperfect/Fair

on (010)

Density
2.68 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 83° · 2V calc = 60°
Refractive index
1.598 – 1.602
Surface relief
Moderate
Principal indices
nα 1.598 · nβ 1.601 · nγ 1.602
Pleochroism
Weak

Very weak. Y = very pale green; Z = pale green.

Dispersion
r < v weak.
Extinction
X = b; Y ∧ c = 24°; Z ∧ a = 23°.
UV response
None observed
Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 10.152(8) Å · b = 24.14(3) Å · c = 6.308(6) Å
Cell angles
β = 91.14(7) °
Ratio a:b:c
1 : 2.378 : 0.621
Unit cell volume
83 ų
Z
2
Morphology

Radial aggregates.

Type-locality form

Yellow isolated crystals and radial aggregates of crystals (0.1-0.2 mm), forming flattened sprays.

Comment

Point Group: 2/m or m.; Space Group: C2/c or Cc

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4015.999639.960
49.51%
26FeIronIron455.845223.380
17.28%
15PPhosphorusPhosphorus630.974185.844
14.38%
20CaCalciumCalcium440.078160.312
12.40%
25MnManganeseManganese154.93854.938
4.25%
1HHydrogenHydrogen281.00828.224
2.18%
Total1292.658100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1987-014
  • Zodaciet

In other languages

German
IMA 1987-014 · Zodacit
Italian
Zodacite
Portuguese
IMA1987-014 · Zodacita
Chinese
水磷锰钙石

Classification

Strunz
10th ed.

8.DH.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.25ZodaciteSpecies
Dana
8th ed.

42.11.08.04

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.08Montgomeryite groupGroup
  • 42.11.08.04ZodaciteSpecies
CIM

19.12.47

  • 19PhosphatesClass
  • 19.12Phosphates of MnGroup
  • 19.12.47ZodaciteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1988Dunn, Pete J., Grice, Joel D., Metropolis, William C. (1988) Zodacite, the Mn analogue of montgomeryite, from Mangualde, Portugal. American Mineralogist, 73 (9-10) 1179-1181
  2. 2005(2005) Zodacite. Handbook of Mineralogy. Mineralogical Society of America
