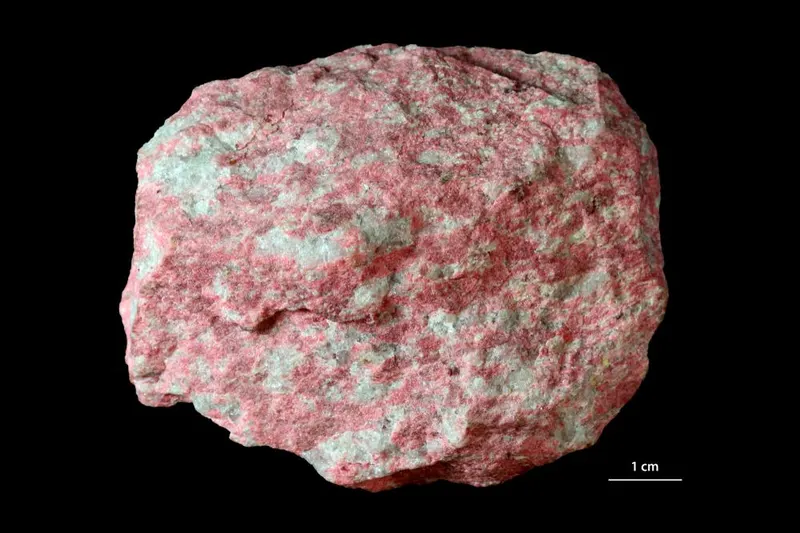

Zoisite

Ca2Al3[Si2O7][SiO4]O(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Zo
Discovered
1805
Also known as
  • Illuderit
  • Illuderita
  • Illuderite
  • +10 more

Where it forms, where it's found

Geological setting

Pegmatite in eclogite

Medium grade regionally metamorphosed rocks, eclogites, blueschist facies metamorphic rocks.

Type locality
Prickler Halt
  1. Eberstein
  2. Sankt Veit an der Glan District
  3. Carinthia
  4. Austria

46.8344°, 14.6286°

1,047recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789106 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Pearly
Transparency
Transparent · Translucent
Colour
Colourless · purple · greyish-white · grey · yellowish-brown · yellow · pink · green · blue · violet
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (010) Imperfect on (100)

Fracture
Irregular/Uneven · Conchoidal
Density
3.15 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70° · 2V calc = 40°
Refractive index
1.696 – 1.718
Surface relief
High
Principal indices
nα 1.696 – 1.700 · nβ 1.696 – 1.702 · nγ 1.702 – 1.718
Pleochroism
Visible

X= pale pink to red violet Y= nearly colourless to bright pink or deep blue Z= pale yellow to yellow-green

Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 16.19 Å · b = 5.54 Å · c = 10.03 Å
Ratio a:b:c
1 : 0.342 : 0.620
Z
4
Morphology

Prismatic crystals, columnar to compact, massive

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
45.78%
14SiSiliconSilicon328.08584.255
18.54%
13AlAluminiumAluminium326.98280.946
17.82%
20CaCalciumCalcium240.07880.156
17.64%
1HHydrogenHydrogen11.0081.008
0.22%
Total454.352100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mn
  • Mg
  • Cr
  • Ti
  • Ca
  • Na
  • V
  • Sr
  • H2O

Synonyms

  • Illuderit
  • Illuderita
  • Illuderite
  • Lime-epidote
  • Orthozoisit
  • Orthozoisita
  • Orthozoisite
  • Sau-Alpit
  • Saualpit
  • Saualpita
  • Unionit
  • Unionita
  • Unionite

In other languages

French
Illudérite · Orthozoisite · Saoualpite · Strömite · Unionite · zoïsite · Zoïzite
German
Saualpit · Zoisit
Spanish
Zoisita
Italian
Zoisite
Portuguese
zoisita · zoisite
Japanese
ゾイサイト · ゆうれん石 · 灰れん石 · 灰簾石 · 黝簾石
Chinese
坦尚黝簾石 · 黝簾石
Simplified Chinese
黝帘石
Traditional Chinese
黝簾石
Russian
зауальпит · циозит · цоизит

Classification

Strunz
10th ed.

9.BG.10

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.10ZoisiteSpecies
Dana
8th ed.

58.02.1b.01

  • 58Sorosilicates Insular, Mixed, Single, and Larger Tetrahedral GroupsClass
  • 58.02Insular, Mixed, Single, and Larger Tetrahedral Groups with cations in [6] and higher coordination; single and double groups (n = 1, 2)Type
  • 58.02.1b— unnamed intermediate level —Group
  • 58.02.1b.01ZoisiteSpecies
CIM

16.9.8

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.9Aluminosilicates of CaGroup
  • 16.9.8ZoisiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1804Jameson R. (1804) A system of mineralogy, Edinburgh. 2, 597.
  2. 1807Klaproth, M. H. (1807) CXLI. Untersuchung des Zoisits, von der Sau Alpe. In Beiträge zur chemischen Kenntniss der Mineralkörper Vol. 4. Rottmann. p.179-185.
  3. 1961Pistorius, Carl W. F. T. (1961) Synthesis and Lattice Constants of Pure Zoisite and Clinozoisite. The Journal of Geology, 69 (5) 604-609 doi:10.1086/626774DOI: 10.1086/626774
  4. 1968Dollase, W. A. (1968) Refinement and comparison of the structures of zoisite and clinozoisite. American Mineralogist, 53 (11-12) 1882-1898
  5. 1981Abrecht, J. (1981) Pink zoisite from the Aar Massif, Switzerland. Mineralogical Magazine, 44 (333) 45-49 doi:10.1180/minmag.1981.44.333.05 DOI: 10.1180/minmag.1981.44.333.05
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Zoisite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/zoisite-4430},
  note      = {Accessed 2026-05-11}
}
