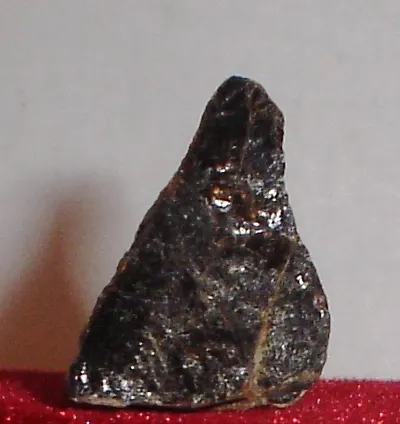

Allanite-(Nd)

CaNd(Al2Fe2+)[Si2O7][SiO4]O(OH)
IMA status
  • Approved
IMA symbol
Aln-Nd
IMA approved
2011
Also known as
  • Allaniet-(Nd)
  • Allanitt-(Nd)
  • IMA2010-060

Where it forms, where it's found

Geological setting

NYF-family granitic pegmatite.

Pegmatite with unusually extreme LREE enrichment and HREE depletion.

Type locality
Åskagen Quarry
  1. Persberg ore district
  2. Filipstad
  3. Värmland County
  4. Sweden

59.7099°, 14.3555°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Dark brown to black
Streak
Grayish-brown.
Tenacity
brittle
Cleavage
Imperfect/Fair

Imperfect along (001).

Fracture
Conchoidal
Density
3.98 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 82°
Refractive index
1.723 – 1.772
Surface relief
High
Principal indices
nα 1.723 · nβ 1.754 · nγ 1.772
Pleochroism
Weak

Moderately pleochroic in larger fragments. α = pale grayish-brown, γ = grayish-brown. Small fragment are colorless.

Dispersion
Strong, r > v.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0490
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]490 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation490 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 8.8897(5) Å · b = 5.7308(2) Å · c = 10.1010(6) Å
Cell angles
β = 115.166(7) °
Ratio a:b:c
1 : 0.645 : 1.136
Twinning

None observed.

Type-locality form

Fine-grained aggregates within altered thalénite-(Y) and thin crack fillings. The size of individual grains is less than 0.5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
35.41%
60NdNeodymiumNeodymium1144.242144.242
24.56%
14SiSiliconSilicon328.08584.255
14.34%
26FeIronIron155.84555.845
9.51%
13AlAluminiumAluminium226.98253.964
9.19%
20CaCalciumCalcium140.07840.078
6.82%
1HHydrogenHydrogen11.0081.008
0.17%
Total587.379100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Ca
  • Ce
  • Fe
  • La
  • Mg
  • Mn
  • Pr
  • Sm
  • Ti

Synonyms

  • Allaniet-(Nd)
  • Allanitt-(Nd)
  • IMA2010-060

In other languages

German
Allanit-(Nd) · IMA 2010-060
Italian
allanite-(Nd)

Classification

Strunz
10th ed.

9.BG.05b

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.05bAllanite-(Nd)Species
Dana
8th ed.

58.02.06.04

  • 58Sorosilicates Insular, Mixed, Single, and Larger Tetrahedral GroupsClass
  • 58.02Insular, Mixed, Single, and Larger Tetrahedral Groups with cations in [6] and higher coordination; single and double groups (n = 1, 2)Type
  • 58.02.06Yoshimuraite and related speciesGroup
  • 58.02.06.04Allanite-(Nd)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 8. Mineralogical Magazine, 75 (2) 289-294 doi:10.1180/minmag.2011.075.2.289 DOI: 10.1180/minmag.2011.075.2.289
  2. 2011Hanson, S.L., Brown, T.A., Falster, A.U., Simmons, W.B. (2011) "Allanite-(Nd)": a new mineral from the Kingman Feldspar Mine in the Mojave pegmatite district, northwestern Arizona. The 38th Rochester Mineralogical Symposium, 38. 20-22
  3. 2012Skoda, R., Cempirek, J., Filip, J., Novak, M., Veselovsky, F., Ctvrtlik, R. (2012) Allanite-(Nd), CaNdAl2Fe2+(SiO4)(Si2O7)O(OH), a new mineral from Askagen, Sweden. American Mineralogist, 97 (5) 983-988 doi:10.2138/am.2012.3936DOI: 10.2138/am.2012.3936
  4. 2012Hanson, S. L., Falster, A. U., Simmons, W. B., Brown, T. A. (2012) Allanite-(Nd) from the Kingman Feldspar Mine, Mojave Pegmatite District, Northwestern Arizona, USA. The Canadian Mineralogist, 50 (4) 815-824 doi:10.3749/canmin.50.4.815DOI: 10.3749/canmin.50.4.815
  5. 2019Kasatkin, A.V.; Škoda, R.; Kuznetsov, A.M. (2019) Allanite-(Nd) from Sapfirinovaya Pit, Southern Urals:First Find in Russia. МИНЕРАЛОГИЯ (MINERALOGY), 5. 15-23 doi:10.35597/2313-545x-2019-5-1-2 DOI: 10.35597/2313-545x-2019-5-1-2
