Allanpringite

Fe3+3(PO4)2(OH)3 · 5H2O
IMA status
  • Approved
IMA symbol
Apg
IMA approved
2004
Also known as
  • Allanpringiet
  • Allanpringitt
  • IMA2004-050

Where it forms, where it's found

Geological setting

With other iron phosphates in the dump of an abandoned iron mine.

Type locality
Mark Mine
  1. Weinbach
  2. Limburg-Weilburg
  3. Giessen Region
  4. Hesse
  5. Germany

50.4442°, 8.3211°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale brown-yellow
Streak
White with a pale yellowish tint
Tenacity
brittle
Cleavage
Perfect

Parallel to the morphological elongation; good parallel to (010).

Fracture
Irregular/Uneven
Density
2.54 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 48°
Refractive index
1.662 – 1.747
Surface relief
High
Principal indices
nα 1.662 · nβ 1.675 · nγ 1.747
Pleochroism
Strong

X colourless, Y colourless, Z dark yellow; absorption Z ≫ X ∼ Y; orientation XYZ = **b (pseudoorthorhombic)

Dispersion
not visible
Michel-Lévy diagramhighlighted lineδ = 0.0850
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]850 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation850 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 9.777(3) Å · b = 7.358(2) Å · c = 17.83(5) Å
Cell angles
β = 92.19(4) °
Ratio a:b:c
1 : 0.753 : 1.824
Unit cell volume
1281.7 ų
Z
4
Morphology

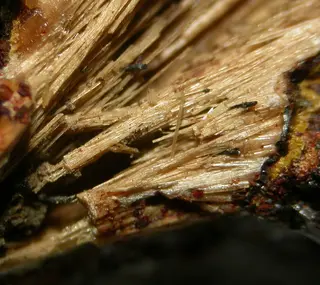

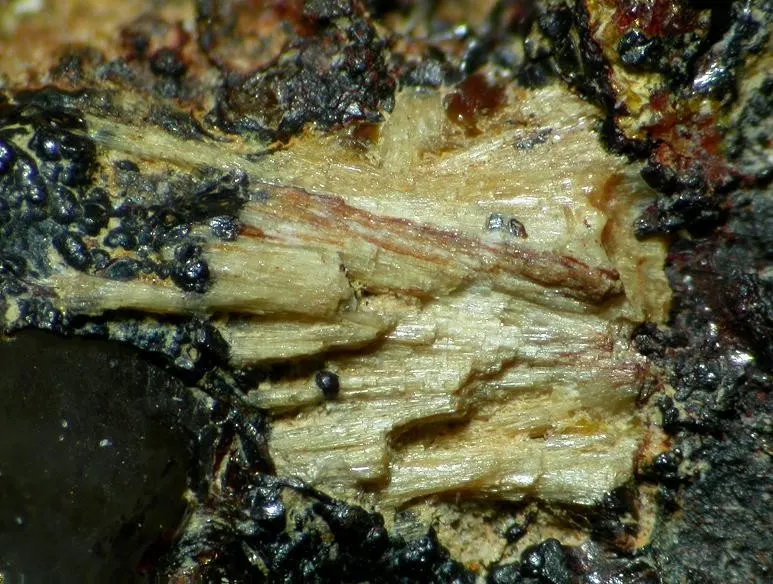

Acicular crystals, elongated along [010], to 1.5 mm, in bundles, to 2 mm, of subparallel individuals.

Type-locality form

Acicular, invariably twinned (by nonmerohedry) crystals, which are always intergrown to form bundles of subparallel individuals.

Comment

Cell parameter from single-crystal data.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
51.34%
26FeIronIron355.845167.535
33.60%
15PPhosphorusPhosphorus230.97461.948
12.43%
1HHydrogenHydrogen131.00813.104
2.63%
Total498.571100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Allanpringiet
  • Allanpringitt
  • IMA2004-050

In other languages

German
Allanpringit · IMA 2004-050
Italian
allanpringite
Chinese
水羟磷铁石

Classification

Strunz
10th ed.

8.DC.50

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.50AllanpringiteSpecies
Dana
8th ed.

42.10.02.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.10A3(XO4)2Zq·xH2OType
  • 42.10.02Wavellite GroupGroup
  • 42.10.02.02AllanpringiteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 2006Kolitsch, Uwe, Bernhardt, Heinz-Jürgen, Lengauer, Christian L., Blass, Günter, Tillmanns, Ekkehartt (2006) Allanpringite, Fe3(PO4)2(OH)35H2O, a new ferric iron phosphate from Germany, and its close relation to wavellite. European Journal of Mineralogy, 18 (6) 793-801 doi:10.1127/0935-1221/2006/0018-0793 DOI: 10.1127/0935-1221/2006/0018-0793
  2. 2022Keck, Erich, Grey, Ian E., MacRae, Colin M., Boer, Stephanie, Hochleitner, Rupert, Rewitzer, Christian, Mumme, William G., Glenn, A. Matt, Davidson, Cameron (2022) New secondary phosphate mineral occurrences and their crystal chemistry, at the Hagendorf Süd pegmatite, Bavaria. European Journal of Mineralogy, 34 (5) 439-450 doi:10.5194/ejm-34-439-2022 DOI: 10.5194/ejm-34-439-2022
