Fluorwavellite

Al3(PO4)2(OH)2F · 5H2O
IMA status
  • Approved
IMA symbol
Fwav
IMA approved
2015
Also known as
  • Fluorwavelliet
  • IMA2015-077

Where it forms, where it's found

Geological setting

A low-temperature secondary mineral.

Type locality
Silver Coin Mine
  1. Valmy
  2. Iron Point Mining District
  3. Humboldt County
  4. Nevada
  5. USA

40.9289°, -117.3239°

24recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Green to yellowish-green and yellow
Streak
White
Tenacity
brittle
Cleavage
Perfect

One perfect on (110) and two good on (101) and (010).

Fracture
Irregular/Uneven · Conchoidal
Density
2.30 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 71° · 2V calc = 71.2°
Refractive index
1.522 – 1.549
Surface relief
Moderate
Principal indices
nα 1.522 · nβ 1.531 · nγ 1.549
Pleochroism
Non-pleochroic
Dispersion
Weak, r > v.
Extinction
X = b; Y = a; Z = c.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 9.6311(4) Å · b = 17.3731(12) Å · c = 6.9946(3) Å
Ratio a:b:c
1 : 1.804 : 0.726
Z
4
Morphology

Radiating sprays of prisms exhibiting the forms (010), (110}, and (101).

Type-locality form

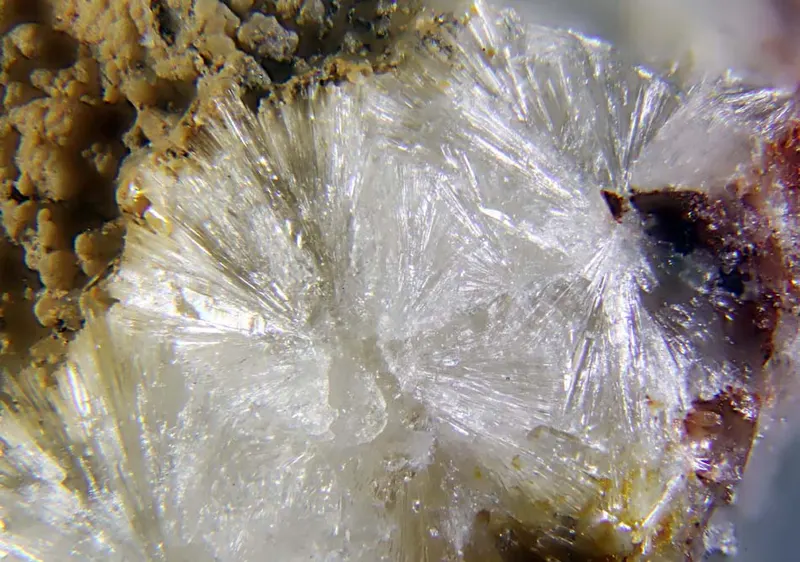

Essentially identical to wavellite in appearance. Colorless prisms up to 1 mm long (Silver Coin mine) and up to 3 mm long (Wood mine). The prisms form in radial sprays, bow-tie-like sprays (Silver Coin mine), and dense intergrowths of subparallel prisms perpendicular to vein walls (Wood mine).

Comment

Pcmn

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
57.97%
13AlAluminiumAluminium326.98280.946
19.55%
15PPhosphorusPhosphorus230.97461.948
14.97%
9FFluorineFluorine118.99818.998
4.59%
1HHydrogenHydrogen121.00812.096
2.92%
Total413.973100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fluorwavelliet
  • IMA2015-077

In other languages

German
Fluorwavellit · IMA 2015-077

Classification

Strunz
10th ed.

8.DC.50

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.50FluorwavelliteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter no 28. Mineralogical Magazine, 79 (7) 1859-1864 doi:10.1180/minmag.2015.079.7.18DOI: 10.1180/minmag.2015.079.7.18
  2. 2016Vrtiška, Luboš; Loun, Jan; Malíková, Radana; Sejkora, Jiří (2016) Fluorwavellit a variscit z Počepic u Sedlčan (Česká republika) [Fluorwavellite and variscite from Počepice near Sedlčany (Czech Republic)]. Bulletin mineralogicko-petrologického oddělení Národního muzea v Praze, 24 (2). 285-297
  3. 2017(2017) Fluorwavellite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2017Kampf, Anthony R., Adams, Paul M., Barwood, Henry, Nash, Barbara P. (2017) Fluorwavellite, Al3(PO4)2(OH)2F·5H2O, the fluorine analog of wavellite. American Mineralogist, 102 (4) 909-915 doi:10.2138/am-2017-5948 DOI: 10.2138/am-2017-5948
