Bainbridgeite-(YCe)

Na2Ba2YCe(CO3)6 · 3H2O
IMA status
  • Approved
IMA symbol
Bbg
IMA approved
2020
Also known as
  • Bainbridgeiet-(YCe)
  • IMA2020-065

Where it forms, where it's found

Geological setting

late-stage mineral found in hydrothermally altered alkaline pegmatites, miarolitic cavities in nepheline and sodalite syenite, and marble xenoliths at the Poudrette (Demix) quarry

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
pale yellow to yellow · orange-yellow · orange · grey to almost black · bluish grey · green-grey · green · or even white

Grey and black colours are most common

Streak
white
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.49 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 48° · 2V calc = 62°
Refractive index
1.572 – 1.628
Surface relief
Moderate
Principal indices
nα 1.572 · nβ 1.586 · nγ 1.628
UV response
The mineral is non-fluorescent under ultraviolet light.
Michel-Lévy diagramhighlighted lineδ = 0.0560
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]560 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation560 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 9.0874(4) Å · b = 9.0877(4) Å · c = 6.8826(3) Å
Cell angles
α = 102.912(4) ° · β = 116.208(4) ° · γ = 60.322(4) °
Ratio a:b:c
1 : 1.000 : 0.757
Z
1
Type-locality form

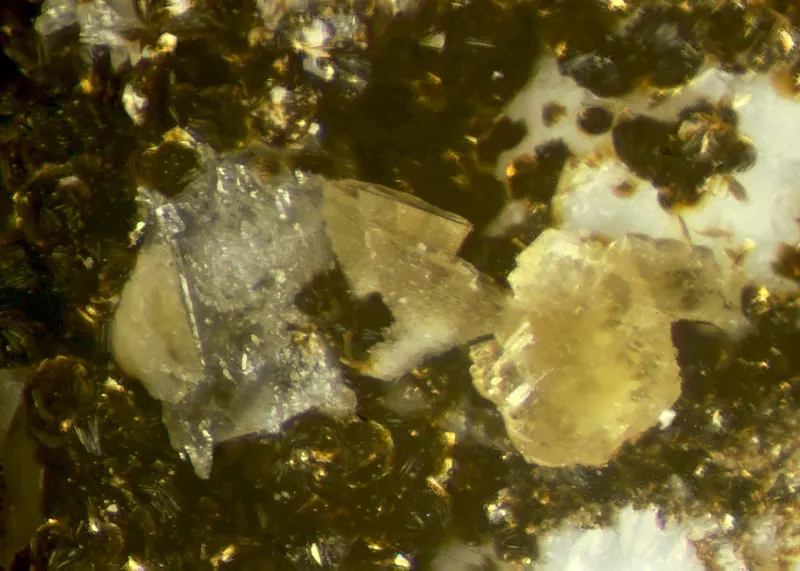

crystals are hemimorphic pseudotrigonal and pseudohexagonal and show a wide range of habits, including platy, columnar, tabular, cone-shaped, barrel-shaped, saucer-shaped, and spindle-shaped (Fig. 1). The crystal faces are often curved, split, and/or stepped. They commonly form stacked or parallel growth aggregates, rosettes, and groups of radiating crystals. The crystals are usually less than 1 mm in size with some reaching 1.5–2 mm. Aggregates can reach 3 mm in size.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2115.999335.979
34.86%
56BaBariumBarium2137.327274.654
28.50%
58CeCeriumCerium1140.116140.116
14.54%
39YYttriumYttrium188.90688.906
9.22%
6CCarbonCarbon612.01172.066
7.48%
11NaSodiumSodium222.99045.980
4.77%
1HHydrogenHydrogen61.0086.048
0.63%
Total963.749100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bainbridgeiet-(YCe)
  • IMA2020-065

In other languages

German
Bainbridgeit-(YCe) · IMA 2020-065

Classification

Strunz
10th ed.

5.CC.05

  • 5CarbonatesClass
  • 5.CCarbonates without additional anions, with H2ODivision
  • 5.CCWith rare earth elements (REE)Group
  • 5.CC.05Bainbridgeite-(YCe)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 58. European Journal of Mineralogy, 32 (6) 645-651 doi:10.5194/ejm-32-645-2020 DOI: 10.5194/ejm-32-645-2020
  2. 2022(2022) Bainbridgeite-(YCe). Handbook of Mineralogy. Mineralogical Society of America
  3. 2024Lykova, Inna; Rowe, Ralph; Poirier, Glenn; Friis, Henrik; Helwig, Kate (2024) Mckelveyite group minerals – Part 3: Bainbridgeite-(YCe), Na2Ba2YCe(CO3)6  ·  3H2O, a new species from Mont Saint-Hilaire, Canada. European Journal of Mineralogy, 36 (1). 183-194 doi:10.5194/ejm-36-183-2024DOI: 10.5194/ejm-36-183-2024
