Berlinite

Al(PO4)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ber
Discovered
1868
Also known as
  • Berliniet

Where it forms, where it's found

Type locality
Västanå Iron Mine (Westanå Mine)
  1. Näsum
  2. Bromölla
  3. Skåne County
  4. Sweden

56.1951°, 14.4622°

31recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · greyish or pale pink · colourless in transmitted light.
Streak
white
Cleavage
None Observed
Fracture
Conchoidal
Density
2.64 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.524 – 1.532
Surface relief
Moderate
Principal indices
nω 1.524 · nε 1.532
UV response
may fluoresce dark red
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#89
Cell parameters
a = 4.941 Å · c = 10.94 Å
Z
3
Morphology

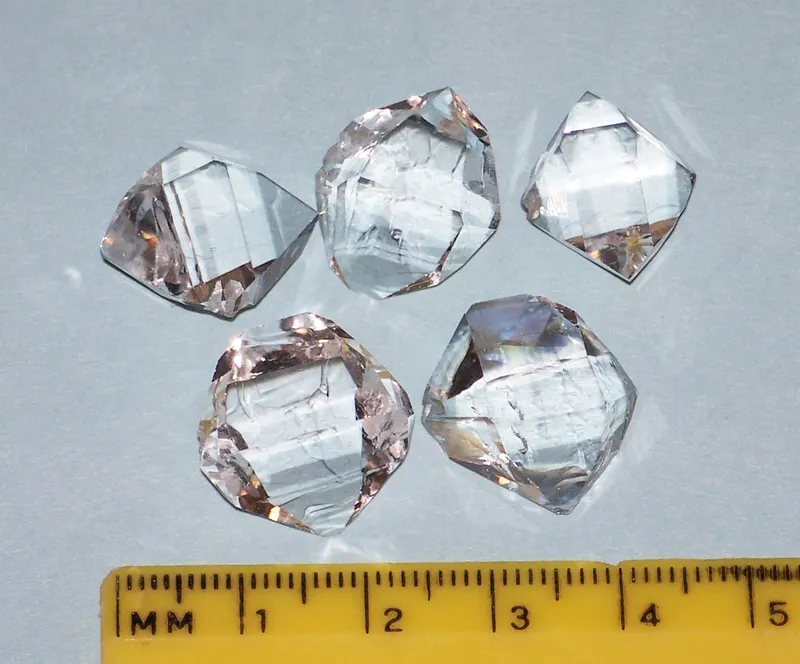

Crystals similar to quartz. Granules to 6 mm; massive.

Twinning

subparallel twinning lamellae

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen415.99963.996
52.48%
15PPhosphorusPhosphorus130.97430.974
25.40%
13AlAluminiumAluminium126.98226.982
22.12%
Total121.952100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Si

Synonyms

  • Berliniet

In other languages

French
7784-30-7 · AlPO4 · Berlinite
German
Berlinit
Spanish
Berlinita
Italian
Berlinite
Japanese
ベルリナイト
Chinese
块磷铝矿
Simplified Chinese
块磷铝矿
Traditional Chinese
塊磷鋁礦
Russian
Берлинит

Classification

Strunz
10th ed.

8.AA.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.APhosphates, etc. without additional anions, without H2ODivision
  • 8.AAWith small cations (some also with larger ones)Group
  • 8.AA.05BerliniteSpecies
Dana
8th ed.

38.04.02.01

  • 38Anhydrous Normal Phosphates, Arsenates, and VanadatesClass
  • 38.04AXO4Type
  • 38.04.02Berlinite GroupGroup
  • 38.04.02.01BerliniteSpecies
CIM

19.7.1

  • 19PhosphatesClass
  • 19.7Phosphates of Al aloneGroup
  • 19.7.1BerliniteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1868Blomstrand (1868) Journal für praktische Chemie, Leipzig: 105: 338.
  2. 1868Blomstrand, C. W. (1868) Om Vestanå Mineralier. Öfversigt af Kongl. vetenskaps-akademiens förhandlingar, 25. 197-212
  3. 1935Huttenlocher, H. F. (1935) Kristallstruktur des Aluminiumorthophosphates AlPO4. Zeitschrift für Kristallographie, 90 (1-6). 508-516 doi:10.1524/zkri.1935.90.1.508 DOI: 10.1524/zkri.1935.90.1.508
  4. 1941Strunz, H. (1941) Isotypie von Berlinit mit Quarz. Zeitschrift für Kristallographie, Mineralogie und Petrographie, 103 (1-6). 228-229 doi:10.1524/zkri.1941.103.1.228DOI: 10.1524/zkri.1941.103.1.228
  5. 1949Beck, Warren R. (1949) CRYSTALLOGRAPHIC INVERSIONS OF THE ALUMINUM ORTHOPHOSPHATE POLYMORPHS AND THEIR RELATION TO THOSE OF SILICA. Journal of the American Ceramic Society, 32 (4). 147-151 doi:10.1111/j.1151-2916.1949.tb18940.xDOI: 10.1111/j.1151-2916.1949.tb18940.x
