Scorzalite

Fe2+Al2(PO4)2(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Scz
Discovered
1947
Also known as
  • Scorzaliet

Where it forms, where it's found

Geological setting

Pegmatite.

Secondary mineral in complex zoned granitic pegmatites.

Type locality
Córrego Frio mine
  1. Linópolis
  2. Divino das Laranjeiras
  3. Minas Gerais
  4. Brazil

-18.6694°, -41.4704°

61recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark azure blue · green-blue · blue-green
Streak
White to light blue
Tenacity
brittle
Cleavage
Distinct/Good

Good on (110) Indistinct on (101)

Fracture
Irregular/Uneven
Density
3.33 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 62° · 2V calc = 58 – 68°
Refractive index
1.626 – 1.68
Surface relief
High
Principal indices
nα 1.626 – 1.645 · nβ 1.654 – 1.674 · nγ 1.663 – 1.68
Birefringence
0.036
Pleochroism
Visible

X= colorless Y=Z= blue

Dispersion
r < v perceptible
Extinction
Y = b; X ≈ c.
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0360
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]360 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation360 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 7.15 Å · b = 7.31 Å · c = 7.25 Å
Cell angles
β = 120.58 °
Ratio a:b:c
1 : 1.022 : 1.014
Z
2
Morphology

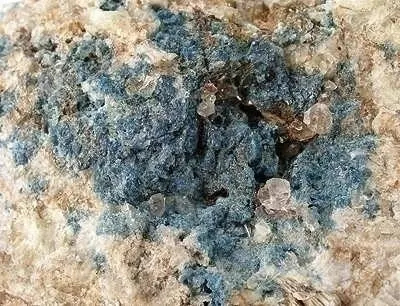

Generally massive, rare crystals are dipyramidal.

Twinning

Multiple twinning.

Type-locality form

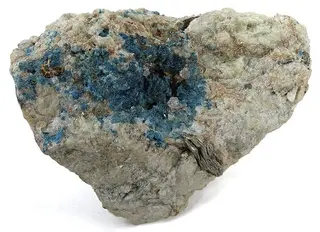

Dark blue massive masses to 7 cm, mixed with souzalite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
47.94%
15PPhosphorusPhosphorus230.97461.948
18.56%
26FeIronIron155.84555.845
16.73%
13AlAluminiumAluminium226.98253.964
16.17%
1HHydrogenHydrogen21.0082.016
0.60%
Total333.763100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Scorzaliet

In other languages

French
scorzalite
German
Scorzalith
Spanish
Scorzalita
Italian
Scorzalite
Japanese
スコルザライト · 鉄天藍石

Classification

Strunz
10th ed.

8.BB.40

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.40ScorzaliteSpecies
Dana
8th ed.

41.10.01.02

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.10(AB)3(XO4)2ZqType
  • 41.10.01Lazulite GroupGroup
  • 41.10.01.02ScorzaliteSpecies
CIM

19.14.30

  • 19PhosphatesClass
  • 19.14Phosphates of Fe and other metalsGroup
  • 19.14.30ScorzaliteSpecies

Group, growth & confusion

In the same group
5 members
Often grow together
20 minerals

Literature, links & citation

Citations
  1. 1948Meyers, T. R. (1948) Green lazulite from Stoddard, New Hampshire. American Mineralogist, 33 (5-6) 366-368
  2. 1948Berry, L.G. (1948) Structural crystallography of lazulite, scorzalite and veszelyite. American Mineralogist: 33(11-12): 750-750.
  3. 1949Pecora, William T., Fahey, Joseph J. (1949) The Corrego Frio pegmatite, Minas Gerais: scorzalite and souzalite, two new phosphate minerals. American Mineralogist, 34 (1-2) 83-93
  4. 1949Pecora, W. T., Fahey, J. J. (1949) Scorzalite from South Dakota: A new occurrence. American Mineralogist, 34 (9-10) 685-687
  5. 1950Pecora, W. T., Fahey, J. J. (1950) The lazulite-scorzalite isomorphous series. American Mineralogist, 35 (1-2) 1-18
