Betpakdalite-CaCa

[Ca2(H2O)17Ca(H2O)6][Mo6+8As5+2Fe3+3O36(OH)]
IMA status
  • Approved
IMA symbol
Bpd-CaCa
Discovered
1961
Also known as
  • Betpakdalita

Where it forms, where it's found

Geological setting

Oxidation zone of a wolframite deposit, that consists of early quartz-wolframite-veins and later quartz-huebnerite-pyrite-arsenopyrite veins.

Type locality
Kara-Oba W deposit
  1. Moiynkum District
  2. Jambyl Region
  3. Kazakhstan

45.5288°, 72.5460°

14recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Waxy · Vitreous
Transparency
Transparent
Colour
Lemon-yellow with greenish tint
Cleavage
Very Good

(001)

Density
2.98 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 53 – 88°
Refractive index
1.782 – 1.857
Surface relief
Very high
Principal indices
nα 1.782 – 1.809 · nβ 1.797 – 1.821 · nγ 1.850 – 1.857
Pleochroism
Visible

X = pale yellow, Y = greenish yellow, Z= bluish.

Dispersion
extreme, inclined
Extinction
Y = b; X ∧ c = 12°.
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0580
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]580 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation580 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 19.507(2) Å · b = 11.0768(9) Å · c = 15.2618(19) Å
Cell angles
β = 131.2618(5) °
Ratio a:b:c
1 : 0.568 : 0.782
Unit cell volume
2470.3 ų
Type-locality form

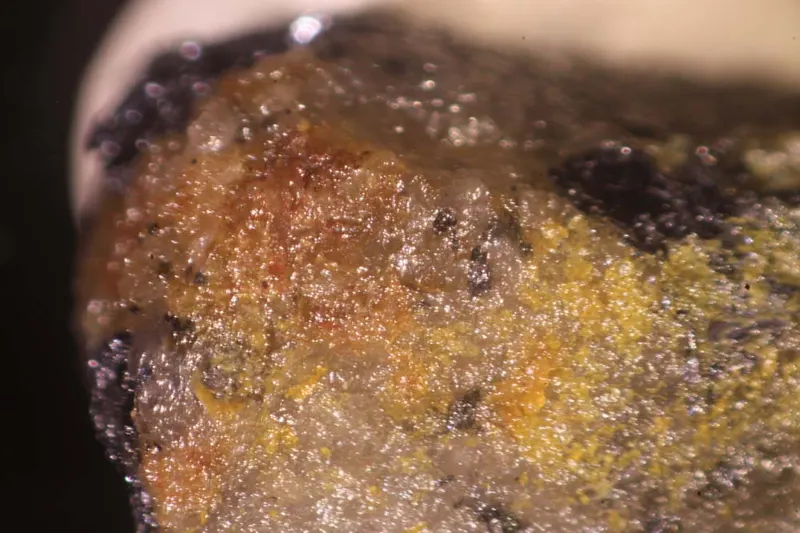

Powdery finely-crystalline aggregates, individual crystals being 0.005 to 0.025 mm.

Comment

Cell parameters from SCXRD (Kampf et al 2012)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6015.999959.940
43.39%
42MoMolybdenumMolybdenum895.950767.600
34.69%
26FeIronIron355.845167.535
7.57%
33AsArsenicArsenic274.922149.844
6.77%
20CaCalciumCalcium340.078120.234
5.44%
1HHydrogenHydrogen471.00847.376
2.14%
Total2212.529100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Betpakdalita

In other languages

German
Betpakdalit-CaCa
Italian
Betpakdalite-CaCa
Russian
Бетпакдалит

Classification

Strunz
10th ed.

8.DM.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DMWith large and medium-sized cations, (OH, etc.):RO4 > 2:1Group
  • 8.DM.15Betpakdalite-CaCaSpecies
Dana
8th ed.

49.04.01.01

  • 49Hydrated Molybdates and TungstatesClass
  • 49.04Compound Molybdates and TungstatesType
  • 49.04.01— unnamed intermediate level —Group
  • 49.04.01.01Betpakdalite-CaCaSpecies
CIM

22.5.8

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.8Betpakdalite-CaCaSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1961Ermilova, L.P., Senderova, V.M. (1961) [ Betpakdalite, a new mineral from the oxidation zone of the wolframite ore deposit of Karaoba (Central Kazakhstan)]. Zapiski Vserossiiskogo Mineralogicheskogo Obshchestva, 90 (425) 430
  2. 1962Fleischer, Michael (1962) New Mineral Names. American Mineralogist, 47 (1-2) 172-174
  3. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
  4. 1984Schmetzer, K., Nuber, B., Tremmel, G. (1984) Betpakdalit aus Tsumeb, Namibia: Mineralogie, Kristallchemie und Struktur. [Betpakdalite from Tsumeb, Namibia: mineralogy, crystal chemistry and structure.]. Neues Jahrbuch für Mineralogie, Monatshefte, 1984. 393-403
  5. 1985Dunn, Pete J., Ferraiolo, James A., Fleischer, Michael, Gobel, Volker, Grice, Joel D., Langley, Richard H., Shigley, James E., Vanko, David A., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (11-12) 1329-1335
