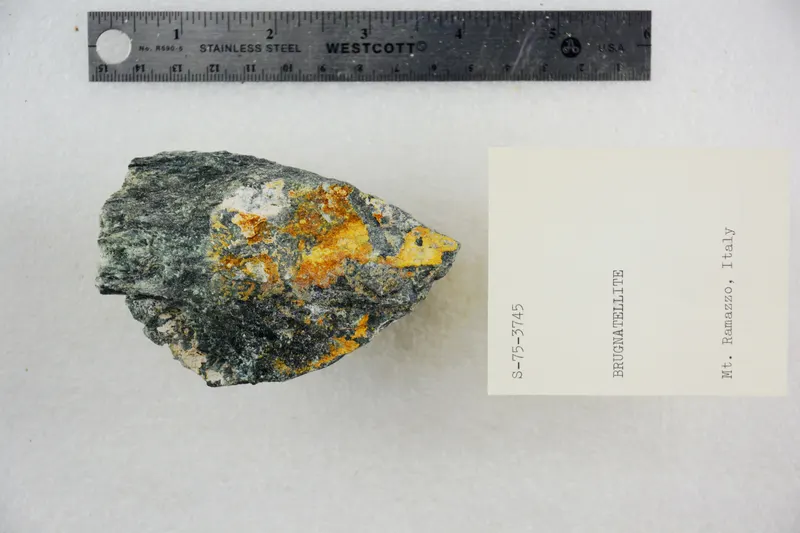

Brugnatellite

Mg6Fe3+(CO3)(OH)13 · 4H2O
IMA status
  • Approved
  • Grandfathered
  • Questionable
IMA symbol
Bug
Discovered
1909
Also known as
  • Brugnatelliet

Where it forms, where it's found

Geological setting

A hydrothermal alteration product in serpentinite

Type locality
Crestùn asbestos mine (Crestùn asbestos quarries
  1. Ciappanico asbestos mine)
  2. Ciappanico
  3. Torre di Santa Maria
  4. Sondrio Province
  5. Lombardy
  6. Italy
21recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Pearly
Transparency
Transparent · Translucent
Colour
Pink to yellowish or brownish-white.
Streak
White
Cleavage
Perfect

(0001)

Fracture
Micaceous
Density
2.14 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.51 – 1.54
Surface relief
Moderate
Principal indices
nω 1.54 · nε 1.51
Birefringence
0.03
Pleochroism
Visible

O = yellowish red E = colourless

Extinction
Parallel
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 5.47 Å · c = 15.97 Å
Z
1
Morphology

Massive. Lamellar or foliated masses of small flakes flattened (0001). Individual flakes have a three- or six-sided outline with striations intersecting at 60°.

Type-locality form

in lamellar or foliated masses, forming nodules, crusts, and coatings.

Comment

Point Group: 3 (probable).; Space Group: n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2015.999319.980
57.67%
12MgMagnesiumMagnesium624.305145.830
26.28%
26FeIronIron155.84555.845
10.07%
1HHydrogenHydrogen211.00821.168
3.82%
6CCarbonCarbon112.01112.011
2.16%
Total554.834100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Brugnatelliet

In other languages

German
Brugnatellit
Italian
Brugnatellite
Chinese
红磷铁镁矿

Classification

Strunz
10th ed.

5.DA.45

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DAWith medium-sized cationsGroup
  • 5.DA.45BrugnatelliteSpecies
Dana
8th ed.

16b.07.05.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.07MiscellaneousType
  • 16b.07.05— unnamed intermediate level —Group
  • 16b.07.05.01BrugnatelliteSpecies
CIM

11.13.4

  • 11CarbonatesClass
  • 11.13Carbonates of FeGroup
  • 11.13.4BrugnatelliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1909Artini (1909), Reale academia dei Lincei: 18(5): 3.
  2. 1922Artini (1922), Reale academia dei Lincei: 31: 491.
  3. 1938Fenoglio M. – (1938) Ricerche sulla brugnatellite. Periodico di Mineralogia – Roma: 9: 1-13.
  4. 1941Frondel, Clifford (1941) Constitution and polymorphism of the pyroaurite and sjögrenite groups. American Mineralogist, 26 (5) 295-315
  5. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
