Rotemite

Ca4Cr2(OH)12Cl2·4H2O
IMA status
  • Approved
IMA symbol
Rot
Also known as
  • IMA2024-058
  • Rotemiet

Where it forms, where it's found

Geological setting

crust of aggregates on samples of rocks altered at low temperatures

Type locality
Halamish Quarry
  1. Hatrurim Basin
  2. Tamar Regional Council
  3. Beersheba Subdistrict
  4. Southern District
  5. Israel

31.1603°, 35.2857°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
pale bluish-violet

pale bluish-violet (daylight) to pinkish-violet (artificial light)

Streak
pale light-purple
Cleavage
Perfect

(0001)

Density
2.18 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.544 – 1.565
Surface relief
Moderate
Principal indices
nω 1.565 · nε 1.544
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R-3c
Cell parameters
a = 5.7944(2) Å · c = 46.69(4) Å

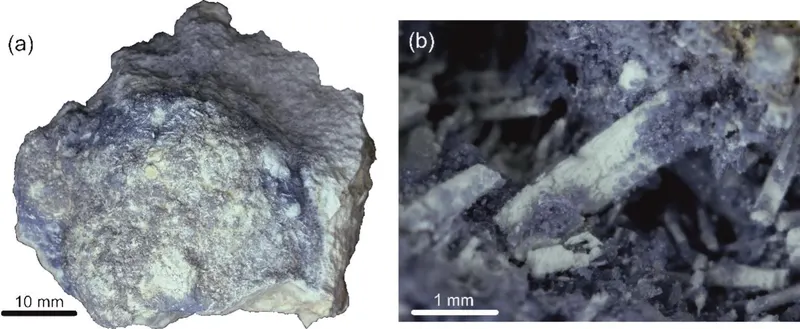

Type-locality form

forms tiny hexagonal plates and tabular crystals, which occur as crust-like polycrystalline aggregates of several dozen μm in size and a maximum crust thickness of 1 mm on the host rock. The dimensions of individual single crystals typically range from a few μm up to rarely exceeding 60 μm in-plane, with a maximum thickness of 20 μm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
41.87%
20CaCalciumCalcium440.078160.312
26.22%
24CrChromiumChromium251.996103.992
17.01%
17ClChlorineChlorine235.45070.900
11.60%
1HHydrogenHydrogen201.00820.160
3.30%
Total611.348100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • IMA2024-058
  • Rotemiet

In other languages

German
IMA 2024-058 · Rotemit
Italian
IMA2024-058 · rotemite

Classification

Strunz
10th ed.

4.FL.05

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FLHydroxides with H2O +- (OH); sheets of edge-sharing octahedraGroup
  • 4.FL.05RotemiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2025Skrzyńska, Katarzyna; Müller, Harald; Juroszek, Rafał; Krüger, Biljana; Cametti, Georgia; Pakhomova, Anna; Galuskina, Irina; Vapnik, Yevgeny; Woźniak, Krzysztof; Galuskin, Evgeny (2025) Rotemite, Ca4Cr2(OH)12Cl2·4 H2O – the trigonal chromium analog of hydrocalumite and Friedel’s salt – a new mineral from the Hatrurim Complex, Israel. Applied Clay Science, 278. 108002 doi:10.1016/j.clay.2025.108002DOI: 10.1016/j.clay.2025.108002
