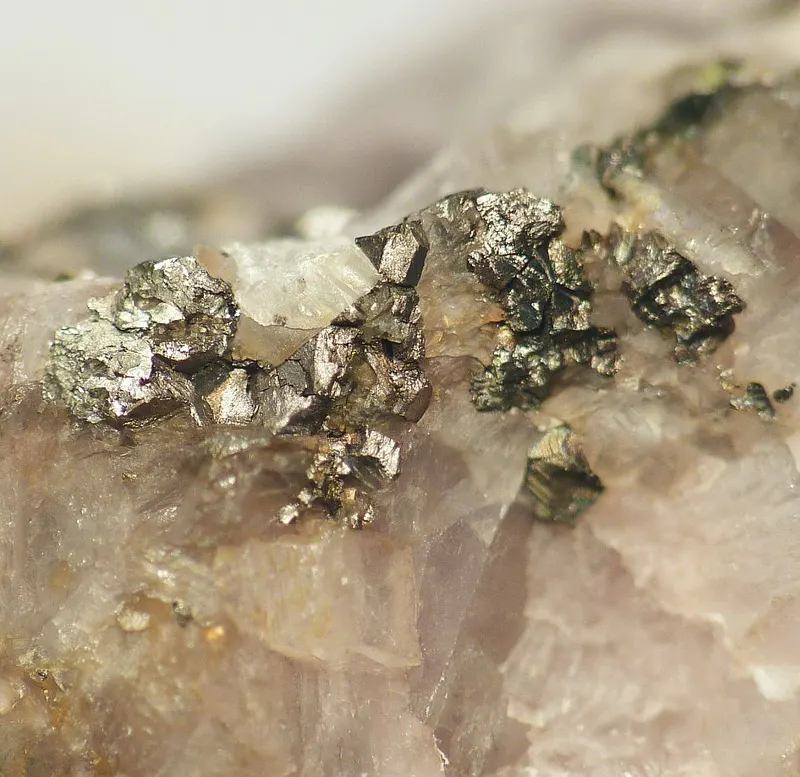

Cattierite

CoS2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cat
Discovered
1945
Also known as
  • Cattieriet

Where it forms, where it's found

Geological setting

Carbonate rocks (dolomite).

Type locality
Shinkolobwe Mine
  1. Shinkolobwe
  2. Kambove Territory
  3. Haut-Katanga
  4. DR Congo

-11.0486°, 26.5508°

43recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Grey-white · pinkish
Cleavage
Perfect

on (001)

Density
4.82 g/cm³

Optical

Optical type
Isotropic
Optical colour
White, pinkish
Tropism
Isotropic
Reflectance R%
(35.8) 400, (35.2) 420, (34.5) 440, (34.3) 460, (34.6) 480, (35.1) 500, (35.8) 520, (36.7) 540, (37.6) 560, (38.4) 580, (39.4) 600, (40.2) 620, (41.1) 640, (41.9) 660, (42.6) 680, (43.3) 700
Reflected-light panel
37.9 %isotropic · single curve
Specimen sRGB 226, 151, 79
White reference100 % reflector under same lamp
Reflected colour
White, pinkish

Crystallography

Crystal system
Isometric
Space group
Pa3
Cell parameters
a = 5.52 Å
Z
4
Morphology

Cubic crystals to 1 cm, granular intergrowths.

Type-locality form

Granular intergrowth with another sulfide (possibly linnaeite-polydymite series).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
16SSulfurSulfur232.06064.120
52.11%
27CoCobaltCobalt158.93358.933
47.89%
Total123.053100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Ni

Synonyms

  • Cattieriet

In other languages

French
cattiérite
German
Cattierit
Spanish
Cattierita
Italian
Cattierite
Japanese
カチエル鉱
Chinese
方硫钴矿
Arabic
كاتيريت

Classification

Strunz
10th ed.

2.EB.05a

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.EBM:S = 1:2, with Fe, Co, Ni, PGE, etc.Group
  • 2.EB.05aCattieriteSpecies
Dana
8th ed.

02.12.01.03

  • 02SulfidesClass
  • 02.12AmBnXp, with (m+n):p = 1:2Type
  • 02.12.01Pyrite Group (Isometric: Pa3)Group
  • 02.12.01.03CattieriteSpecies
CIM

3.10.3

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.10Sulphides etc. of CoGroup
  • 3.10.3CattieriteSpecies

Group, growth & confusion

In the same group
16 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1945Kerr, Paul F. (1945) Cattierite and vaesite: New Co-Ni minerals from the Belgian Congo. American Mineralogist, 30 (7-8) 483-497
  2. 1969Ramdohr, Paul (1969) The Ore Minerals and their Intergrowths. Pergamon Press, Oxford. 1174pp. doi:10.1016/c2013-0-10027-xDOI: 10.1016/c2013-0-10027-x
  3. 1979Pratt, J. Lynn; Bayliss, Peter (1979) Crystal-structure refinement of cattierite. Zeitschrift für Kristallographie, 150 (1-4). 163-167 doi:10.1524/zkri.1979.150.1-4.163 DOI: 10.1524/zkri.1979.150.1-4.163
  4. 1986FUJII, Tetsuo, YOSHIDA, Akira, TANAKA, Kiyoaki, MARUMO, Fumiyuki, NODA, Yasutoshi (1986) High pressure compressibilities of pyrite and cattierite. Mineralogical Journal, 13 (4) 202-211 doi:10.2465/minerj.13.202DOI: 10.2465/minerj.13.202
  5. 1989Nowack, E., Schwarzenbach, D., Gonschorek, W., Hahn, T. (1989) Deformationsdichten in CoS2 und NiS2 mit pyritstruktur. Zeitschrift für Kristallographie: 186: 213-216.
