Clinosafflorite

CoAs2
IMA status
  • Approved
IMA symbol
Csaf
Discovered
1971
Also known as
  • Clinosaffloriet
  • Clinosafflorit
  • IMA1970-014

Where it forms, where it's found

Geological setting

Hydrothermal Co-Ni-As veins.

In hydrothermal veins

Type locality
Cobalt area
  1. Cobalt-Gowganda region
  2. Timiskaming District
  3. Ontario
  4. Canada

47.3947°, -79.6864°

28recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Tin-white
Density
7.46 g/cm³

Optical

Tropism
Anisotropic
Reflectance R%
(50.7,54.8) 400, (55.0,59.8) 420, (55.1,59.0) 440, (55.3,58.0) 460, (55.5,57.1) 480, (55.6,56.3) 500, (55.4,55.6) 520, (54.5,55.4) 540, (53.8,55.2) 560, (53.0,54.9) 580, (52.4,54.5) 600, (51.9,54.2) 620, (51.4,53.5) 640, (50.9,53.3) 660, (50.6,52.9) 680, (50.4,52.6) 700
Reflected-light panel
53.2 %anisotropic · dual curve
Specimen sRGB 252, 181, 102
White reference100 % reflector under same lamp
R₁ R₂
Mode

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 5.04 Å · b = 5.862 Å · c = 3.139 Å
Cell angles
β = 90.13 °
Ratio a:b:c
1 : 1.163 : 0.623
Z
2

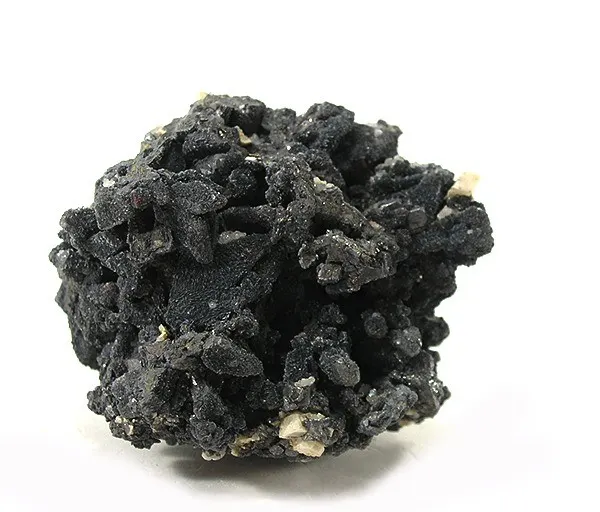

Morphology

Fine-grained intergrowths.

Type-locality form

Intimately intergrown with skutterudite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic274.922149.844
71.77%
27CoCobaltCobalt158.93358.933
28.23%
Total208.777100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • S

Synonyms

  • Clinosaffloriet
  • Clinosafflorit
  • IMA1970-014

In other languages

German
IMA 1970-014 · Klinosafflorit
Italian
Clinosafflorite

Classification

Strunz
10th ed.

2.EB.15a

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.EBM:S = 1:2, with Fe, Co, Ni, PGE, etc.Group
  • 2.EB.15aClinosaffloriteSpecies
Dana
8th ed.

02.12.04.06

  • 02SulfidesClass
  • 02.12AmBnXp, with (m+n):p = 1:2Type
  • 02.12.04Arsenopyrite Group (Monoclinic: P21/c (Pseudo-orthorhombic))Group
  • 02.12.04.06ClinosaffloriteSpecies
CIM

3.10.11

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.10Sulphides etc. of CoGroup
  • 3.10.11ClinosaffloriteSpecies

Group, growth & confusion

In the same group
11 members
Often grow together
6 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1966Darmon, R., Wintenberger, Micheline (1966) Structure cristalline de CoAs2. Bulletin de la Société Française de Minéralogie et de Cristallographie, 89 (2). 213-215 doi:10.3406/bulmi.1966.5953DOI: 10.3406/bulmi.1966.5953
  2. 1971Radcliffe, D., Berry, L.G. (1971) Clinosafflorite; a monoclinic polymorph of safflorite. The Canadian Mineralogist: 10: 877-881.
  3. 1983Burke, E. A. J., Zakrzewski, M. A. (1983) A cobalt–bearing sulfide — arsenide assemblage from the Nord mine (Finnshytteberg), Sweden: A new occurrence of clinosafflorite. The Canadian Mineralogist, 21 (1) 129-136
  4. 2005(2005) Clinosafflorite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2008Yang, Hexiong, Downs, Robert T., Eichler, Carla (2008) Safflorite, (Co,Ni,Fe)As2, isomorphous with marcasite. Acta Crystallographica Section E Structure Reports Online, 64 (9). i62 doi:10.1107/s1600536808026688DOI: 10.1107/s1600536808026688
