Clinohedrite

CaZn(SiO4) · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cnh
Discovered
1898
Also known as
  • Clinohedriet
  • Clinohedrit

Where it forms, where it's found

Geological setting

In hydrothermally altered, metamorphosed zinc-manganese-iron silicate-oxide orebody.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · pale amethystine (rare)
Streak
White
Cleavage
Perfect

On (010)

Density
3.28 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 64°
Refractive index
1.662 – 1.669
Surface relief
High
Principal indices
nα 1.662 · nβ 1.667 · nγ 1.669
Birefringence
0.007
Dispersion
weak r > v
Extinction
Y = b, Z ∧ c = 61°.
UV response

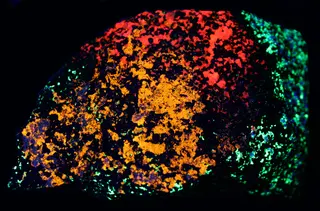

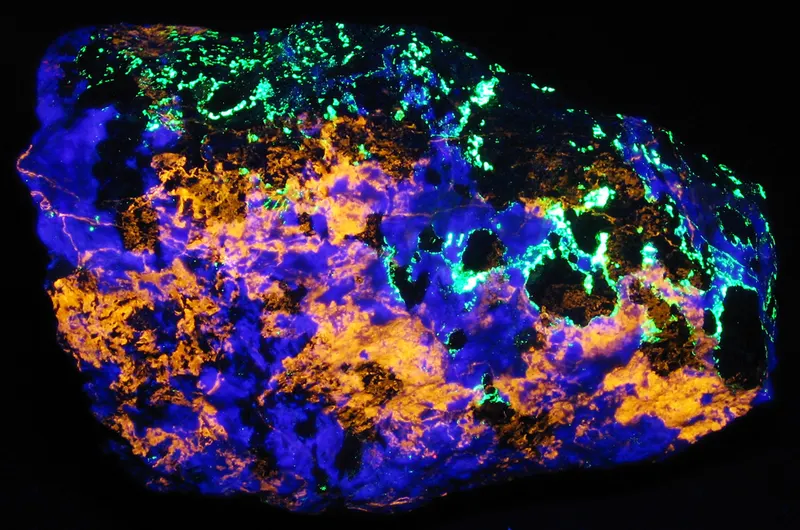

Bright orange (SW UV); dull orange (LW UV).
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
Cc
Cell parameters
a = 5.09 Å · b = 15.82 Å · c = 5.38 Å
Cell angles
β = 103.39 °
Ratio a:b:c
1 : 3.108 : 1.057
Z
4
Morphology

Usually massive in veinlets, crystal rare and show low symmetry.

Type-locality form

Extremely thin to thick fracture coatings, in cavities, rarely as crusts of free growing crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
37.11%
30ZnZincZinc165.38065.380
30.33%
20CaCalciumCalcium140.07840.078
18.59%
14SiSiliconSilicon128.08528.085
13.03%
1HHydrogenHydrogen21.0082.016
0.94%
Total215.554100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Al
  • Mn
  • Mg

Synonyms

  • Clinohedriet
  • Clinohedrit

In other languages

French
clinohédrite
German
Klinoedrit
Italian
clinoedrite

Classification

Strunz
10th ed.

9.AE.30

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AENesosilicates with additional anions (O,OH,F,H2O); cations in tetrahedral [4] coordinationGroup
  • 9.AE.30ClinohedriteSpecies
Dana
8th ed.

52.02.01.02

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.02Insular SiO4 Groups and O, OH, F, and H2O with cations in [4] and >[4] coordinationType
  • 52.02.01Euclase groupGroup
  • 52.02.01.02ClinohedriteSpecies
CIM

14.7.16

  • 14Silicates not Containing AluminumClass
  • 14.7Silicates of Ba, Sr and ZnGroup
  • 14.7.16ClinohedriteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1898Penfield, S.L., Foote, H.W. (1898) On clinohedrite, a new mineral from Franklin, N.J.. American Journal of Science, 155, 289-293.
  2. 1935Palache, Charles (1935) The minerals of Franklin and Sterling Hill, Sussex County, New Jersey. Professional Paper 180. US Geological Survey 135 pp. doi:10.3133/pp180 DOI: 10.3133/pp180
  3. 1976Venetopoulos, Cl. C., Rentzeperis, P. J. (1976) Redetermination of the crystal structure of clinohedrite, CaZnSiO4· H2O. Zeitschrift für Kristallographie, 144 (1). 377-392 doi:10.1524/zkri.1976.144.1-6.377 DOI: 10.1524/zkri.1976.144.1-6.377
  4. 1977Simonov, M.A., Belokoneva, E.L., Yegorov-Tismenko, Y.K., Belov, N.V. (1977) Crystal structure of clinohedrite CaZn[SiO4]·H2O. Doklady Akademii Nauk SSSR, 237, 334-338.
  5. 1978Simonov, M.A., Egorov-Tismenko, Y.K., Belov, N.V. (1978) Crystal structures of clinohedrite Ca[ZnSiO4]·H2O and herstmannite (Mn,Mg)Mg(OH)2[ZnSiO4]. Soviet Physics - Doklady, 23, 113-114.
