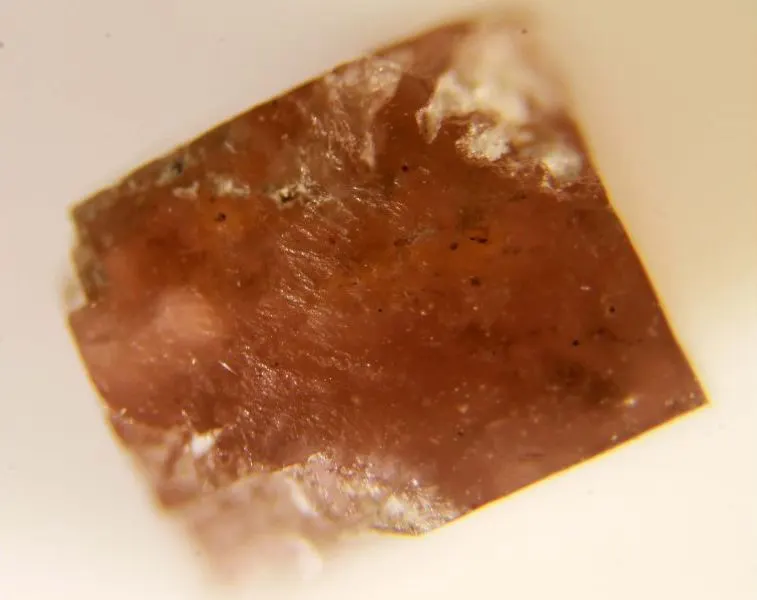

Congolite

Fe2+3B7O13Cl
IMA status
  • Approved
IMA symbol
Cgl
Discovered
1972
Also known as
  • Congoliet
  • Congolit
  • IMA1971-030

Where it forms, where it's found

Geological setting

Evaporite deposit.

Type locality
Kouilou Department
  1. Republic of the Congo
6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5 – 7.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Pale red · pink
Density
3.58 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.731 – 1.755
Surface relief
High
Principal indices
nω 1.755 · nε 1.731
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#85
Cell parameters
a = 8.62 Å · c = 21.05 Å
Type-locality form

Grains from drill core.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
42.74%
26FeIronIron355.845167.535
34.43%
5BBoronBoron710.81075.670
15.55%
17ClChlorineChlorine135.45035.450
7.28%
Total486.642100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Congoliet
  • Congolit
  • IMA1971-030

In other languages

German
Congolith · IMA 1971-030
Italian
Congolite

Classification

Strunz
10th ed.

6.GA.10

  • 6BoratesClass
  • 6.GHeptaborates and other megaboratesDivision
  • 6.GATekto-heptaboratesGroup
  • 6.GA.10CongoliteSpecies
Dana
8th ed.

25.06.02.01

  • 25Anhydrous Borates Containing Hydroxyl or HalogenClass
  • 25.06HexaboratesType
  • 25.06.02Boracite Group (Trigonal: R3c)Group
  • 25.06.02.01CongoliteSpecies
CIM

10.1.19

  • 10Borates with other anionsClass
  • 10.1Borates with halideGroup
  • 10.1.19CongoliteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1972Fleischer, Michael (1972) New Mineral Names. American Mineralogist, 57 (7-8) 1311-1317
  2. 1972Wendling, E., Hodenberg, R.V., Kühn, R. (1972) Congolit, der trigonale eisenboracit. Kali und Steinsalz: 6: 1-3.
  3. 1973Dowty, Eric; Clark, Joan E. (1973) Crystal-structure refinements for orthorhombic boracite, Mg3ClB7O13, and a trigonal, iron-rich analogue. Zeitschrift für Kristallographie, 138 (1-4). 64-99 doi:10.1524/zkri.1973.138.1-4.64 DOI: 10.1524/zkri.1973.138.1-4.64
  4. 1974Nelmes, R. J. (1974) Structural studies of boracites. A review of the properties of boracites. Journal of Physics C: Solid State Physics, 7 (21) 3840-3854 doi:10.1088/0022-3719/7/21/008DOI: 10.1088/0022-3719/7/21/008
  5. 1985Mendoza-Alvarez, M. E., Yvon, K., Depmeier, W., Schmid, H. (1985) Structure refinement of trigonal iron–chlorine boracite. Acta Crystallographica Section C Crystal Structure Communications, 41 (11) 1551-1552 doi:10.1107/s0108270185008514DOI: 10.1107/s0108270185008514
