Boracite

Mg3B7O13Cl
IMA status
  • Approved
  • Grandfathered
IMA symbol
Boc
Also known as
  • Alpha-boracite
  • b-Boracit
  • b-Boracita
  • +17 more

Where it forms, where it's found

Geological setting

Saltdome caprock of gypsum and anhydrite.

Bedded sedimentary deposits of gypsum and anhydrite; salt deposits; potash deposits of the oceanic type.

Type locality
Lüneburger Kalkberg
  1. Lüneburg
  2. Lüneburg District
  3. Lower Saxony
  4. Germany

53.2489°, 10.3964°

67recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789107 – 7.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Green · blue · colourless · grey · white · dark green (ferroan) · colourless in transmitted light

Very rarely pink, yellow.

Streak
White
Cleavage
None Observed
Fracture
Irregular/Uneven · Conchoidal
Density
2.91 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 82°
Refractive index
1.658 – 1.673
Surface relief
High
Principal indices
nα 1.658 – 1.662 · nβ 1.662 – 1.667 · nγ 1.668 – 1.673
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0105
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]105 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation105 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#29
Cell parameters
a = 8.577(6) Å · b = 8.553(8) Å · c = 12.09(1) Å
Ratio a:b:c
1 : 0.997 : 1.410
Unit cell volume
882.47 ų
Z
4
Morphology

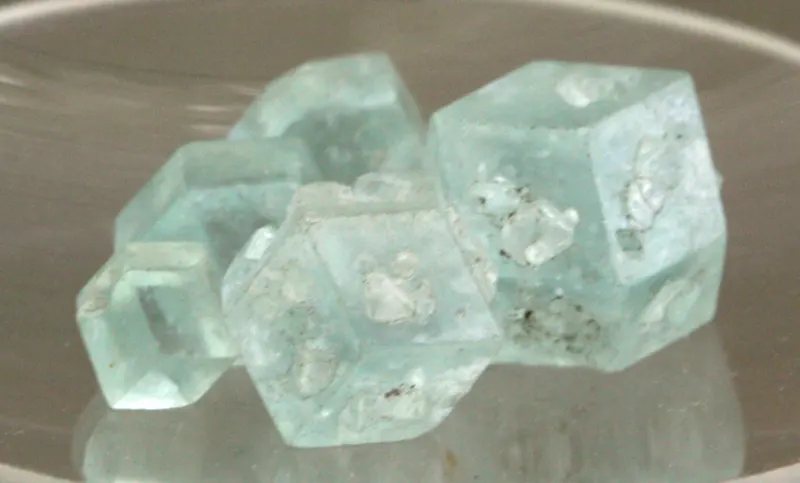

Crystals usually isolated in matrix; less often in groups. Small individuals may project from the face-centers of larger single crystals. Often cubic; also dodecahedral, tetrahedral; pseudo-octahedral or cuboctahedral with (111) commonly larger and brighter than (111). Fine granular, fibrous to plumose aggregates. NOTE: above 265° the crystal system is isometric-hex'tetrahedral - 43_m.

Twinning

On (111) as penetration twins, rare.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
53.06%
5BBoronBoron710.81075.670
19.30%
12MgMagnesiumMagnesium324.30572.915
18.60%
17ClChlorineChlorine135.45035.450
9.04%
Total392.022100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe(II)

Synonyms

  • Alpha-boracite
  • b-Boracit
  • b-Boracita
  • b-Boracite
  • Beta-boracite
  • Boracite (of Werner)
  • Borate magnésiocalcaire
  • Borate of Magnesia
  • Borazit
  • Kubische Quarzkrystalle
  • Lüneburger Sedativ-Spath
  • Magnésie boratée
  • Metaboracit
  • Metaboracita
  • Metaboracite
  • Parasit
  • Parasita
  • Parasite
  • Quartz cubique
  • Würfelstein

In other languages

French
Boracite
German
Boracit
Spanish
Boracita
Italian
Boracite
Chinese
方硼石
Russian
Борацит
Arabic
بوراسيت

Classification

Strunz
10th ed.

6.GA.05

  • 6BoratesClass
  • 6.GHeptaborates and other megaboratesDivision
  • 6.GATekto-heptaboratesGroup
  • 6.GA.05BoraciteSpecies
Dana
8th ed.

25.06.01.01

  • 25Anhydrous Borates Containing Hydroxyl or HalogenClass
  • 25.06HexaboratesType
  • 25.06.01Boracite Group (Orthorhombic: Rca21)Group
  • 25.06.01.01BoraciteSpecies
CIM

10.1.5

  • 10Borates with other anionsClass
  • 10.1Borates with halideGroup
  • 10.1.5BoraciteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. Zeitschrift für Kristallographie: 138: 64-99.
  2. 1787Lasius (1787) Crell’s Chemical Journal, London: 2: 333 (as Kubische Quarzkrystalle).
  3. 1789Werner (1789) Bergmaennusches Journal, Freiberg (Neues Bergmannische Journal): 393 (as Borazit).
  4. 1789Westrumb (1789) Kl. phys.-ch. Abh.: 3: 167 (as Lüneburger Sedativ-Spath).
  5. 1790Werner (1790) Bergmaennusches Journal, Freiberg (Neues Bergmannische Journal): 234.
