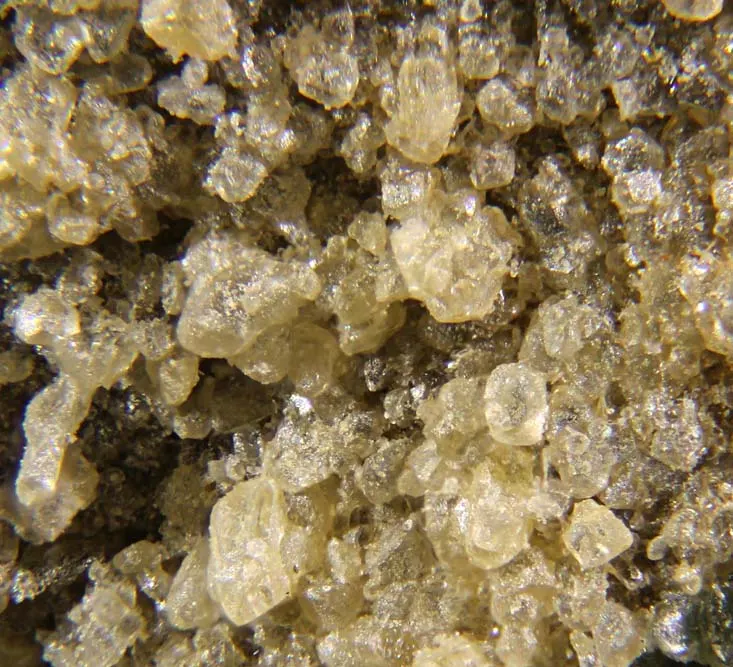

Ericaite

Fe2+3B7O13Cl
IMA status
  • Approved
  • Grandfathered
IMA symbol
Eic
Discovered
1950
Also known as
  • Ericaiet

Where it forms, where it's found

Geological setting

Marine evaporite deposits.

Salt diapirs.

Type locality
Riedel Potash Works
  1. Hänigsen
  2. Uetze
  3. Hanover Region
  4. Lower Saxony
  5. Germany

52.4915°, 10.1099°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107 – 7.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Green · red · purple · brown · black
Density
3.17 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.731 – 1.755
Surface relief
High
Principal indices
nα 1.731 · nβ 1.755 · nγ 1.755
Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#29
Cell parameters
a = 8.58 Å · b = 8.65 Å · c = 12.17 Å
Ratio a:b:c
1 : 1.008 : 1.418
Z
4
Morphology

Pseudocubic. Dominanted by (100) and modified by (111).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
42.74%
26FeIronIron355.845167.535
34.43%
5BBoronBoron710.81075.670
15.55%
17ClChlorineChlorine135.45035.450
7.28%
Total486.642100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Mn(II)

Synonyms

  • Ericaiet

In other languages

German
Ericait
Italian
Ericaite

Classification

Strunz
10th ed.

6.GA.05

  • 6BoratesClass
  • 6.GHeptaborates and other megaboratesDivision
  • 6.GATekto-heptaboratesGroup
  • 6.GA.05EricaiteSpecies
Dana
8th ed.

25.06.01.02

  • 25Anhydrous Borates Containing Hydroxyl or HalogenClass
  • 25.06HexaboratesType
  • 25.06.01Boracite Group (Orthorhombic: Rca21)Group
  • 25.06.01.02EricaiteSpecies
CIM

10.1.20

  • 10Borates with other anionsClass
  • 10.1Borates with halideGroup
  • 10.1.20EricaiteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1950Werner, H. (1950) Das Boracit-Vorkommen im Salzstock von Wathlingen-Hänigsen. Aufschluss, 1, 24-26.
  2. 1955Heide, F. (1955) Über bemerkenswerte Borazitvorkommen in den Kalilagern des Südharzbezirkes. Chemie der Erde, 17, 211-216.
  3. 1955Kühn, R., Schaacke, I. (1955) Vorkommen und Analyse der Boracit- und Ericaitkristalle aus dem Salzhorst von Wathlingen-Hänigsen. Kali und Steinsalz, 1, 33-42.
  4. 1956Fleischer, M. (1956) New mineral names. American Mineralogist, 41 (3-4). 370-372
  5. 1974Nelmes, R. J. (1974) Structural studies of boracites. A review of the properties of boracites. Journal of Physics C: Solid State Physics, 7 (21) 3840-3854 doi:10.1088/0022-3719/7/21/008DOI: 10.1088/0022-3719/7/21/008
