Désorite

Pb2(Fe3+6Zn)O2(PO4)4(OH)8
IMA status
  • Approved
IMA symbol
Dso
IMA approved
2023
Also known as
  • Désoriet

Where it forms, where it's found

Geological setting

secondary, oxidation-zone mineral assemblage in vugs in a goethite-quartz gossan

Type locality
Schöne Aussicht Mine
  1. Dernbach
  2. Wirges
  3. Westerwaldkreis
  4. Rhineland-Palatinate
  5. Germany

50.4542°, 7.7736°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
brownish red
Streak
orange
Tenacity
brittle
Cleavage
Perfect

two cleavages: (021) perfect and (001) good.

splintery and curved fracture

Fracture
Splintery
Density
4.633 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 54°
Refractive index
2 – 2.1
Surface relief
Very high
Principal indices
nα 2.00 · nβ 2.02 · nγ 2.10
Pleochroism
Strong

The mineral is pleochroic: X yellow brown, Y red brown, Z red brown; X < Y ≈ Z.

UV response
nonfluorescent in both long- and short-wave ultraviolet illumination
Notes

β = 2.02(calc) and γ = 2.10(calc)

Michel-Lévy diagramhighlighted lineδ = 0.1000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1000 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1000 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.4389(7) Å · b = 9.324(1) Å · c = 10.093(1) Å
Cell angles
α = 109.024(8) ° · β = 90.521(6) ° · γ = 97.588(7) °
Ratio a:b:c
1 : 1.714 : 1.856
Z
1
Morphology

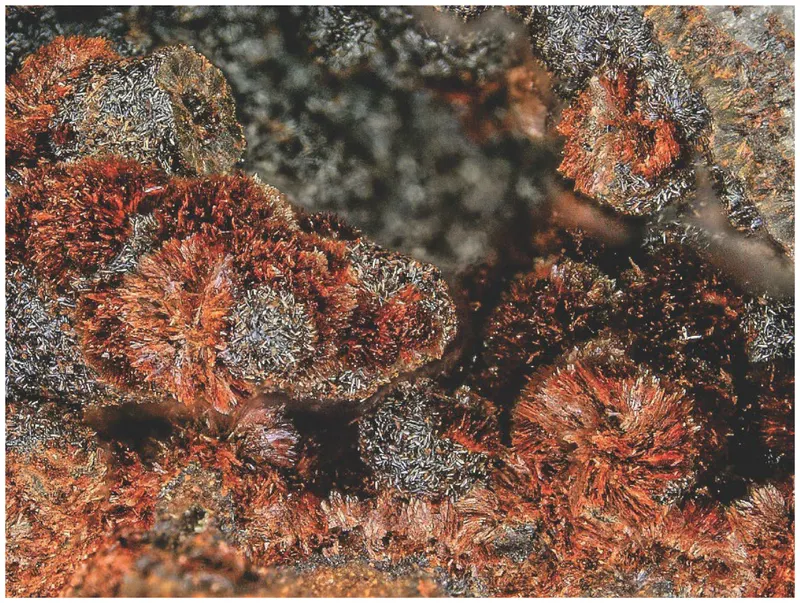

Irregular blades up to about 0.25 mm long, occurring in subparallel and radial aggregates.

Twinning

none

Type-locality form

Irregular blades up to about 0.25 mm long, occurring in subparallel and radial aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
30.52%
82PbLeadLead2207.200414.400
30.41%
26FeIronIron655.845335.070
24.59%
15PPhosphorusPhosphorus430.974123.896
9.09%
30ZnZincZinc165.38065.380
4.80%
1HHydrogenHydrogen81.0088.064
0.59%
Total1362.784100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Désoriet

In other languages

German
Désorit

Classification

Strunz
10th ed.

8.BK.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BKWith medium-sized and large cations, (OH, etc.):RO4 = 2:1, 2.5:1Group
  • 8.BK.25DésoriteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 2024Kampf, Anthony R., Möhn, Gerhard, Ma, Chi (2024) Désorite, Pb2(Fe3+6Zn)O2(PO4)4(OH)8, a New Phosphate Mineral Isotypic with Jamesite. Minerals, 14 (2) 175 doi:10.3390/min14020175DOI: 10.3390/min14020175
  2. 2024Bosi, Ferdinando, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2024) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 77. European Journal of Mineralogy, 36 (1). 165-172 doi:10.5194/ejm-36-165-2024DOI: 10.5194/ejm-36-165-2024
